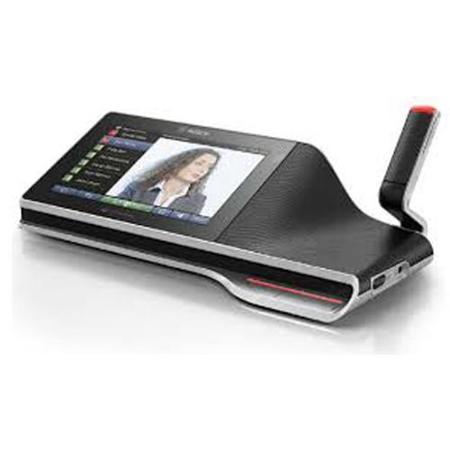

Bosch DCNM-MMD DICENTIS Multimedia Device, Without Mic
See all Bosch items

Bosch DCNM-MMD DICENTIS Multimedia Device, Without Mic

SKU: BHDCNMMMD

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Bosch DCNM-MMD Specifications

General

General

Jump to...

  • Screen size

    7 inch, 1024 x 600 pixels

  • Screen type

    Capacitive multi touch

  • Operating system

    Android 4.03

Electrical

Jump to...

  • Supply voltage

    48 Vdc IEEE 802.3 at Type 2

  • Power consumption

    11.3 W

  • Frequency response

    100 Hz - 20 kHz (-3 dB at nominal level)

  • THD at nominal level

    < 0.05 %

  • Dynamic range

    96 dB (14-110 dBSPL)

  • Signal-to-noise ratio

    66 dB with respect to nominal level headroom 30 dB

Audio inputs

Jump to...

  • Nominal microphone input

    80 dB according IEC60914

  • Maximum microphone input

    110 dB according IEC60914

  • External microphone nominal input

    -38 dBV

  • External microphone maximum input

    -25 dBV

Audio outputs

Jump to...

  • Loudspeaker nominal output

    72 dB SPL @ 0.5 m

  • Loudspeaker maximum output

    90 dB SPL

  • Headphone nominal output

    -9 dBV

  • Headphone maximum output

    -6 dBV

Environmental

Jump to...

  • Operating temperature

    32 Degree F to +113 Degree F (0 Degree C to +35 Degree C)

  • Storage and transport temperature

    -4 Degree F to +158 Degree F (-20 Degree C to +70 Degree C)

  • Relative humidity

    < 95 %, > 5%

Mechanical

Jump to...

  • Mounting

    Tabletop

  • Dimensions (H x W x D)

    2.95 x 12.28 x 6.89" (75 x 312 x 175mm)

  • Weight

    4.07 lbs (1.85kg)

Other

Jump to...

  • UPC Code

    800549694346

About Bosch DCNM-MMD

The DICENTIS Multimedia device is essential for local and regional councils and is ideal when multimedia content is required. It is easily plugged into, or removed from, the DICENTIS Conference System using the system network cabling. The connectors are at the bottom of the device, ensuring a neat and clean system installation. Devices can be free standing or fixed to the table with mounting screws.

The DICENTIS Multimedia device can be remotely configured as chairperson or participant seat and has a remote switch off function for energy saving. It has perfect audio quality and a pluggable microphone (optional), which can be ordered separately.

The multimedia devices can be connected in a simple daisy chain configuration or alternatively connected in a star configuration, where each device is connected to a Power over Ethernet compatible switch with an individual standard CAT 5e (or better) cable.

Functions

Controls and indicators

Full color 7" capacitive-touch graphical display including
• Agenda and meeting data browsing
• Internet browsing.
• Customer logo can be shown on login screen and home screen
• Live video (e.g. showing the current speaker)
• Meeting management for the chair person
• Headphones volume control
• Possibility for adding 3rd party android app. Functionality can be increased by adding software

Document retrieval:
• MSWord (.doc, .docx)
• Excel (.xls, .xlsx)
• PowerPoint (.ppt, .pptx, .pps, .ppsx)
• Portable Document Format (.pdf)
• Rich Text Format (.rtf)
• Plain text (.txt)

Images codecs:
• .jpg
• .gif
• .png
• .bmp
• .webp

Audio codecs
• AAC (.3gp, .mp4, .m4a)
• Flac (.flac)
• Mp3 (.mp3)
• Vorbis (.ogg)
• PCM (.wav)

Video codecs
• H263 (.3gp, .mp4)
• H264 (.3gp, .mp4)
• MPEG4 (.3gp)
• vp8 (.webm)

• Pluggable microphone (Optional)
• Built-in 3M pixel camera
• Built-in two-way loudspeaker
• Microphone on/off button or request-to-speak button
• Microphone mute or chairperson priority button
• Indicators showing: microphone on state, request-to-speak and possible-to-speak
• Two-way speaker system

Interconnections
• Socket for pluggable microphone
• 2x RJ45 compatible connection for system communication and power
• 3.5 mm stereo jack for headphones, external microphone or headset microphone
• Hot plug-and-play
• Provision to attach a magnetic name card holder

Bosch DCNM-MMD Features

  • 7" capacitive touchscreen
  • Built-in two-way loudspeaker
  • Video, meeting content and internet access
  • Additional functionality via software licenses and third party/custom apps

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 7" capacitive touchscreen
  • Built-in two-way loudspeaker
  • Video, meeting content and internet access
  • Additional functionality via software licenses and third party/custom apps

What's in the box:

  • DCNM-MMD DICENTIS Multimedia Device (Without Mic)
