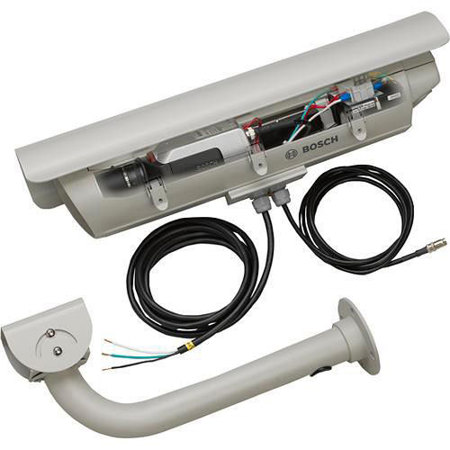

Bosch KBN-498V28-20 Prepackaged 540 TVL Day/Night Dinion 2X IP Camera with 2.8-11mm Lens, Indoor Housing and Bracket

SKU: BHKBN498V282

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Bosch KBN-498V28-20 Specifications

Camera
  • Signal System

    NTSC

  • Image Sensor

    1/3" interline, WDR dual shutter color CCD

  • Number of Pixels

    768 x 494

  • Resolution

    540 TVL

  • Lens

    2.8-11mm Varifocal Lens

  • Iris Operation

    Auto iris Video/DC

  • Minimum Illumination

    Color
    30 IRE: 0.15 Lux
    50 IRE: 0.47 Lux
    100 IRE: 2.4 Lux

    Color + 10x SensUp
    30 IRE: 0.015 Lux
    50 IRE: 0.047 Lux
    100 IRE: 0.24 Lux

    Mono
    30 IRE: 0.060 Lux
    50 IRE: 0.188 Lux
    100 IRE: 0.98 Lux

    Mono + 10x SensUp
    30 IRE: 0.0060 Lux
    50 IRE: 0.019 Lux
    100 IRE: 0.098 Lux

  • IR Illumination

    No

  • Signal-to-Noise Ratio

    >50dB

  • Controls

    Sensitivity Up: Adjustable from Off up to 10x
    Day/Night: Color, Mono, Auto
    Auto Black: Automatic continuous, Off
    Dynamic Engine: XF-Dynamic, 2X-Dynamic, SmartBLC
    Dynamic Range: 120dB (20-bit image processing)
    Dynamic Noise Reduction: Auto, On/off selectable
    Sharpness: Sharpness enhancement level selectable
    SmartBLC: On (includes 2X-Dynamic ) / Off
    AGC: AGC On or Off (0-30 dB) selectable
    Peak White Invert: On/Off
    White Balance: ATW, ATW hold and manual (2500-10000K)

  • Alarm I/O

    1 alarm input, 1 alarm output

  • Communication Control

    Via Bilinx

  • Sync System

    Internal, Line Lock, HV-lock and Genlock (Burst lock) selectable

  • Power Requirements

    12 VDC or 24 VAC

  • Power Consumption

    24VAC: 250mA
    12VDC: 350mA

  • Operating Temperature

    -4 to 131 deg. F (-20 to 55 deg. C)

  • Network

    10/100 Base-T, auto-sensing, half/full duplex, RJ45

  • Video Connector

    Ethernet RJ-45

Housing

Jump to...
  • Power Connector

    0.03" (1 mm) (18 AWG), 3 conductor, 5' (1 m) wiring harness with flying leads (Brown/Blue-24 V, Green-Ground)

  • Power Requirements

    12 to 28 VAC, 60Hz

  • Power Consumption

    4W

  • Construction

    Aluminum housing casing, neoprene gaskets, polymer end caps, and all stainless steel hardware

  • Finish

    Gray

  • Window

    3mm (0.12") Thick UV-stabilized polycarbonate

  • Mounting

    4x Four, 8 mm (5/16") diameter fasteners (not included) are required for mounting

  • Operating Temperature

    -40 to 122 deg. F (-40 to 50 deg. C)

  • Humidity

    0% to 93% relative, non-condensing

  • Enclosure Protection

    IP66, NEMA-4X

Feed-through Mount

Jump to...
  • Feed-through Mount Max Load

    20 lbs (9.07kg)

  • Feed-through Mount Size

    12" (30.48cm)

Environmental

Jump to...
  • Certifications and Approvals

    Emission: EN55022 class B, FCC part 15 class B, EN6100-3, EN50121-4
    Immunity: EN50130-4 (CE), EN50121-4 (CE)
    Vibration: Camera with 500 gr (1.1 lbs) lens according to IEC60068-2-6

  • Safety

    LTC0498/11: UL1950-1, CSA 22.2 No. 950-1, EN60950-1 (CE), UL60950, CAN/CSA No. 60950
    LTC0498/51: UL1950-1, CSA 22.2 No. 950-1, EN60950-1 (CE), EN61000-3-2 2000 +A2:2005, EN61000-3-3 1995 +A1:2001 +A2:2005
    LTC0498/21 and LTC0498/61: UL1950-1, CSA 22.2 No. 950-1, EN60950-1 (CE), UL60950, CAN/CSA No. 60950

General

Jump to...
  • Dimensions (WxHxD)

    Camera: 2.6 x 2.3 x 4.6" (6.60 x 5.84 x 11.68cm)
    Housing: 6.7 x 5 x 18.9" (17.02 x 12.70 x 48.01cm)

  • Weight

    Camera: 1 lbs (0.45kg)
    Housing: 6.28 lbs (2.85kg)
    Feed-through Mount: 0.9 lbs (0.41kg)

  • UPC Code

    800549299695

About Bosch KBN-498V28-20

The KBN Series Prepackaged Cameras are complete surveillance systems that include a camera and lens installed and pre-wired into a Bosch housing which includes a feed-through wall-mount. The 20-bit digital signal processing found in the Dinion 2X Day/Night camera series enhances sensitivity; the 2X Dynamic extends the dynamic range. This unique combination provides a sharper, more detailed image with outstanding accuracy in color reproduction even under harsh light conditions. This camera is equipped with Bosch's innovative Bilinx bidirectional communication for remote programming. Bilinx uses standard video cable to transmit alarm and status messages, providing superior performance and simplified installation.

The true advantage of the Bosch prepackaged cameras lie with the plug-and-play design. Installation is quick and easy, since these units include a factory-installed camera and lens with adjusted back-focus - all of which are pre-wired through the housing base. Coax and power cable (1 1/2 m or 5') are fed through the included mount to the connection point. Everything about the KBN Series Prepackaged Cameras, from the installer-friendly design, coupled with the Dinion 2X series Cameras and a wide range of options make an ideal solution for every surveillance requirement.

Bosch KBN-498V28-20 Features

  • General purpose, high performance and Day/Night camera
  • Bilinx bi-directional communication
  • Indoor version
  • Camera and lens are pre-wired into a Bosch housing
  • Plug and Play design includes feed through mount and 1.5m (5') of cabling

What's in the box:

  • Bosch 540 TVL Day/Night Dinion 2X IP Camera
  • 2.8-11mm Varifocal Lens
  • Indoor Housing
  • Wall Mount Bracket
  • 5' BNC Video Cable
  • 5' Power Cable
  • Bosch 3 Year Warranty
