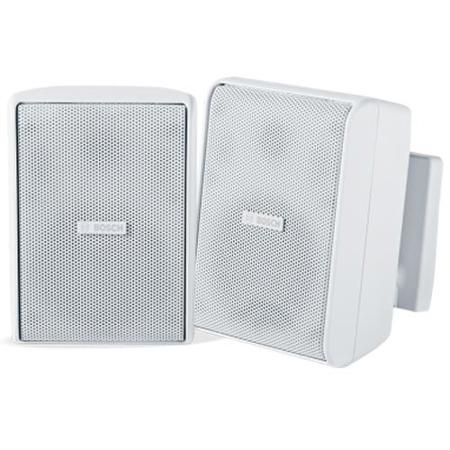

Bosch LB20-PC15-4L 4" 2-Way Quick Install Cabinet Speaker, 70/100V Transformer, 60W Peak, IP54, White, Pair

SKU: BHLB20PC154L MFR: F.01U.331.731
Earn VIP Reward Points

Key Features

  • Experience clear audio with Bosch LB20-PC15-4L speakers, perfect for background music.
  • Enjoy versatile sound coverage; these commercial speakers offer a wide 110° x 110° angle.
  • These durable speakers are IP54 rated, ideal for indoor & protected outdoor installations.
  • Achieve optimal sound with a 70 Hz high-pass filter, enhancing your audio presentation.
  • Quick install cabinet speakers with included bracket, saving time & ensuring secure setup.
  • Get peak performance with 60W peak power, ensuring robust sound for any business needs.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

1 Year

$39.99

2 Year

$69.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Bosch LB20-PC15-4L Specifications

  • Frequency Response (-3 dB)

    100 Hz - 20 kHz

  • Frequency Response (-10 dB)

    75 Hz - 20 kHz

  • Sensitivity

    86.5 dB

  • Max SPL (calculated)

    98.5 dB (104.5 dB Peak)

  • Coverage Angle

    Horizontal 110 deg. , Vertical 110 deg.

  • Power Handling

    15W (60W Peak) Continuous Pink Noise (100 hours)

  • Low Z

    No

  • Recommended High-Pass

    70 Hz (24 dB/octave)

  • Input Transformer (70V/100V)

    15W

  • Transformer Taps

    70 V: 3.7 W, 7.5 W, 15 W
    100 V: 7.5 W, 15 W

  • LF Transducer

    4" (102mm)

  • HF Transducer

    0.75" (20mm)

  • Connectors

    Captive screws on wall bracket
    Maximum wire size 12AWG (2.5mm)

  • Environmental

    IP54 (per IEC-60529)

  • Packaged Quantity

    2

  • Dimensions (HxWxD)

    193 x 140 x 120mm (7.60 x 5.51 x 4.72")

  • Weight

    1.8kg (3.97 lbs)

  • UPC Code

    800549841450

About Bosch LB20-PC15-4L

Enhance your audio experience with the LB20-PC15-4L 4" 2-Way Quick Install Cabinet Speaker from Bosch, a reputable brand known for delivering high-quality and innovative audio equipment. This durable and stylish speaker is engineered to offer superior performance with its full-range, two-way, 4" (102mm) surface mount design that ensures wide, uniform coverage and outstanding sound quality.

Ideal for both background and foreground music, paging, and sound reinforcement, this reliable speaker is versatile enough for a multitude of indoor and outdoor applications. Whether you're setting up an audio system for restaurants, bars, patios, retail spaces, fitness clubs, hospitality venues, theme parks, or leisure venues, the LB20-PC15-4L is your perfect audio solution.

One of the key features of this speaker is its unparalleled ease-of-installation. The unique and innovative mounting system from Bosch allows for 90 degrees of rotation horizontally and 45 degrees of rotation vertically, enabling easy installation on walls and ceilings. The mounting system comes pre-assembled, ready to simplify your installation process.

The LB20-PC15-4L is equipped with a 15W transformer, offering a selection of 3.7W (70V only), 7.5W, or 15W delivered to the speaker system using either 70V or 100V lines. The selection is conveniently done with a Euroblock connector on the input panel located on the rear of the speaker.

Designed to resist outdoor environments, this IP54 rated speaker doesn't compromise on indoor performance. Its weather-proofing is complemented by an exceptional cabinet and grille resistance against sun, salt, and moisture, making it a suitable choice for outdoor installations like patios, decks, and pool areas.

Available in both black and white, the LB20-PC15-4L can be easily painted to match your decor. Transformer versions are also available for constant voltage systems. This speaker is part of the wide range of LB20 surface mount speakers designed to work together as a complete system in various surface mount constructions and in combination with other LB20 ceiling and in-wall speakers.

Bosch LB20-PC15-4L Features

  • Innovative mount system is included for quick, simple, and reliable installations
  • Carefully engineered for outdoor environments (IP54), without compromising performance
  • Long throw 4" (102mm) woofer housed in a fire rated ABS plastic enclosure for extended LF performance down to 75Hz

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience clear audio with Bosch LB20-PC15-4L speakers, perfect for background music.
  • Enjoy versatile sound coverage; these commercial speakers offer a wide 110° x 110° angle.
  • These durable speakers are IP54 rated, ideal for indoor & protected outdoor installations.
  • Achieve optimal sound with a 70 Hz high-pass filter, enhancing your audio presentation.
  • Quick install cabinet speakers with included bracket, saving time & ensuring secure setup.
  • Get peak performance with 60W peak power, ensuring robust sound for any business needs.

What's in the box:

  • Bosch 2x LB20-PC15-4L 4 " 2-Way Quick Install Cabinet Speaker
  • Mounting Bracket
  • 4mm Allen Wrench
  • Bosch 3 Year Warranty
