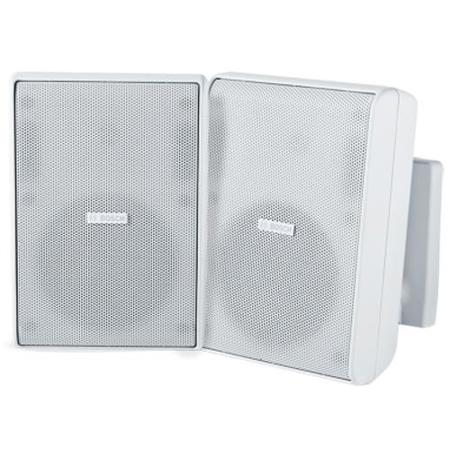

Bosch LB20-PC30-5L 5" 2-Way Quick Install Cabinet Speaker, 70/100V Transformer with 8 Ohms Bypass, 300W Peak, IP54, White, Pair

SKU: BHLB20PC305L MFR: F.01U.331.735
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with Bosch's 5" 2-way cabinet speakers.
  • Achieve optimal audio with a wide 85 Hz - 20 kHz frequency response range.
  • Enjoy flexible connectivity options, including Euroblock, for easy setup.
  • Durable, IP54-rated speakers perfect for indoor & outdoor commercial spaces.
  • Customize your sound with adjustable 70/100V transformer taps for volume.
  • Get peak performance with 300W peak power handling for impactful sound.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Bosch LB20-PC30-5L Specifications

  • Frequency Response (-3 dB)

    85 Hz - 20 kHz

  • Frequency Response (-10 dB)

    60 Hz - 20 kHz

  • Sensitivity

    90 dB

  • Max SPL (calculated)

    109 dB (115 dB Peak)

  • Coverage Angle

    Horizontal 90 deg. , Vertical 90 deg.

  • Power Handling

    75W (300W Peak) Continuous Pink Noise (100 hours)

  • Low Z

    Yes

  • Nominal Impedance

    8Ohms

  • Minimum Impedance

    6Ohms

  • Recommended High-Pass

    60 Hz (24 dB/octave)

  • Input Transformer (70V/100V)

    30W

  • Transformer Taps

    70 V: 3.7 W, 7.5 W, 15 W, 30 W, 8Ohms
    100 V: 7.5 W, 15 W, 30 W, 8Ohms

  • LF Transducer

    5.25" (133mm)

  • HF Transducer

    0.75" (20mm)

  • Connectors

    Captive screws on wall bracket
    Removable locking 4-pin connector (Euroblock) - (2) for connection to additional speakers in a distributed line
    Max. wire size 12AWG (2.5mm)

  • Environmental

    IP54 (per IEC-60529)

  • Packaged Quantity

    2

  • Dimensions (HxWxD)

    255 x 180 x 154mm (10.04 x 7.09 x 6.06")

  • Weight

    3.2kg (7.05 lbs)

  • UPC Code

    800549841498

About Bosch LB20-PC30-5L

Overcome the limitations of conventional sound systems with the Bosch LB20-PC30-5L 5" 2-Way Quick Install Cabinet Speaker. This high-performance, full-range surface mount speaker delivers exceptional audio quality with its 5.25" (133mm) size, providing wide and uniform coverage. Whether you need background music, paging, or sound reinforcement, this speaker is designed to excel in a multitude of settings, including indoor and outdoor environments like restaurants, fitness clubs, retail spaces, hospitality venues, and more.

The LB20-PC30-5L speaker stands out with its ease-of-installation and robust weather resistance. Its modern, delicate aesthetic is complemented by flexible mounting options, making it a versatile solution for various surface mount applications. The speaker comes with Bosch's unique and innovative mounting system, allowing for 90-degree horizontal and 45-degree vertical rotation. This feature enables easy installation on walls and ceilings, with the mounting system pre-assembled and ready to use.

Powering this speaker is a 30W transformer, offering selectable power outputs of 3.7W (70V only), 7.5W, 15W, or 30W. This flexibility allows the speaker system to operate on either 70V or 100V lines, or use an 8Ohms bypass for low impedance lines. The selection is easily made via a switch on the input panel located on the speaker's rear.

Engineered to withstand outdoor conditions without compromising indoor performance, the LB20-PC30-5L speaker is IP54 rated. Its weather-proofing is enhanced by a cabinet and grille designed to resist sun, salt, and moisture damage. Available in black or white, the speaker can be easily painted to blend with your decor. Transformer versions are also available for constant voltage systems.

The LB20-PC30-5L is part of the comprehensive LB20 surface mount speakers range, designed to work in harmony in various surface mount constructions, and can be combined with other LB20 ceiling and in-wall speakers for a complete sound system solution.

Bosch LB20-PC30-5L Features

  • Innovative mount system is included for quick, simple, and reliable installations
  • Carefully engineered for outdoor environments (IP54), without compromising performance
  • Long throw 5.25" (133mm) woofer housed in a fire rated ABS plastic enclosure for extended LF performance down to 60Hz
  • 75W power handling provides for 109 dB maximum SPL (115 dB peak)

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience superior sound quality with Bosch's 5" 2-way cabinet speakers.
  • Achieve optimal audio with a wide 85 Hz - 20 kHz frequency response range.
  • Enjoy flexible connectivity options, including Euroblock, for easy setup.
  • Durable, IP54-rated speakers perfect for indoor & outdoor commercial spaces.
  • Customize your sound with adjustable 70/100V transformer taps for volume.
  • Get peak performance with 300W peak power handling for impactful sound.

What's in the box:

  • Bosch 2x LB20-PC30-5L 5 " 2-Way Quick Install Cabinet Speaker
  • Mounting Bracket
  • 5mm Allen Wrench
  • Removable Locking 4-Pin Connector (Euroblock)
  • Bosch 3 Year Warranty
