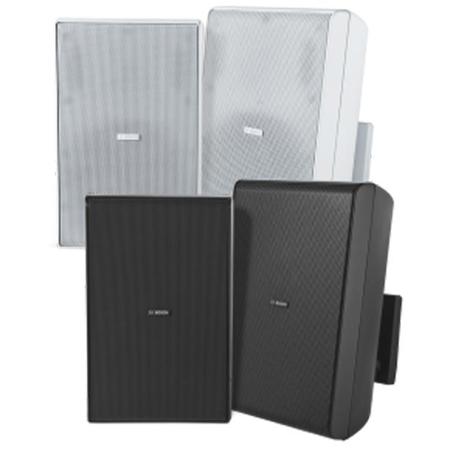

Bosch LB20-PC60-8DL 8" 2-Way Quick Install Cabinet Speaker, 70/100V Transformer with 8 Ohms Bypass, 360W Peak, IP54, White, Pair

SKU: BHLB20PC608L MFR: F.01U.331.741
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with Bosch LB20-PC60-8DL commercial speakers.
  • Achieve optimal audio with a wide 70 Hz - 20 kHz frequency response; great for presentations.
  • Enjoy flexible connectivity options, including Euroblock, for easy audio integration.
  • Benefit from durable, IP54-rated cabinet speakers, perfect for indoor/outdoor installations.
  • Get peak performance with 360W peak power handling for robust audio output.
  • These Bosch speakers deliver exceptional brand reputation and lasting reliability.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Bosch LB20-PC60-8L Specifications

  • Frequency Response (-3 dB)

    70 Hz - 20 kHz

  • Frequency Response (-10 dB)

    50 Hz - 20 kHz

  • Sensitivity

    90 dB

  • Max SPL (calculated)

    110 dB (116 dB Peak)

  • Coverage Angle

    Horizontal 90 deg. , Vertical 90 deg.

  • Power Handling

    90W (360W Peak) Continuous Pink Noise (100 hours)

  • Low Z

    Yes

  • Nominal Impedance

    8Ohms

  • Minimum Impedance

    6Ohms

  • Recommended High-Pass

    50 Hz (24 dB/octave)

  • Input Transformer (70V/100V)

    60W

  • Transformer Taps

    70 V: 7.5 W, 15 W, 30 W, 60 W, 8Ohms
    100 V: 15 W, 30 W, 60 W, 8Ohms

  • LF Transducer

    8" (203mm)

  • HF Transducer

    1" (25mm)

  • Connectors

    Captive screws on wall bracket
    Removable locking 4-pin connector (Euroblock) - (2) for connection to additional speakers in a distributed line
    Max. wire size 12AWG (2.5mm)

  • Environmental

    IP54 (per IEC-60529)

  • Packaged Quantity

    2

  • Dimensions (HxWxD)

    390 x 250 x 224mm (15.35 x 9.84 x 8.82")

  • Weight

    5.8kg (12.79 lbs)

  • UPC Code

    800549841559

About Bosch LB20-PC60-8L

How does the Bosch LB20-PC60-8DL 8" 2-Way Quick Install Cabinet Speaker stand out This high-performance, full-range surface mount speaker delivers superior sound quality with its 8" (203mm) design. It's engineered for both background and foreground music, paging, and sound reinforcement, making it a versatile choice for diverse indoor and outdoor applications. Whether you're outfitting a restaurant, bar, patio, retail space, fitness club, or leisure venue, this speaker's wide, uniform coverage and outstanding performance make it an ideal choice.

The LB20-PC60-8DL is not just a speaker, but a testament to Bosch's innovative design. It features a unique mounting system that simplifies installation, allowing for 90 degrees of horizontal rotation and 45 degrees of vertical rotation. This flexibility makes it easy to install on walls and ceilings, ensuring optimal sound distribution in any setting.

This durable cabinet speaker is equipped with a 60W transformer, offering selectable power options of 7.5W (70V only), 15W, 30W, or 60W. This power can be delivered to the speaker system using either 70V or 100V lines, or an 8Ohms bypass for low impedance lines. The selection is conveniently controlled via a switch on the input panel located on the rear of the speaker.

Designed to withstand the elements, the LB20-PC60-8DL is IP54 rated, offering resistance against sun, salt, and moisture. Its weatherproof design doesn't compromise on indoor performance, making it a reliable choice for any environment. Available in black or white, this stylish speaker can be easily painted to match your decor. Transformer versions are also available for constant voltage systems.

The LB20-PC60-8DL is part of the wide range of LB20 surface mount speakers designed to work together as a complete system. It can be used in combination with other LB20 ceiling and in-wall speakers, offering a comprehensive audio solution for any space. Experience the difference of high-quality, reliable, and innovative audio equipment with the Bosch LB20-PC60-8DL 8" 2-Way Quick Install Cabinet Speaker.

Bosch LB20-PC60-8L Features

  • Innovative mount system is included for quick, simple, and reliable installations
  • Carefully engineered for outdoor environments (IP54), without compromising performance
  • Long throw 8" (203mm) woofer housed in a fire rated ABS plastic enclosure for extended LF performance down to 50Hz
  • 90W power handling provides for 110 dB maximum SPL (116 dB peak)

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience superior sound quality with Bosch LB20-PC60-8DL commercial speakers.
  • Achieve optimal audio with a wide 70 Hz - 20 kHz frequency response; great for presentations.
  • Enjoy flexible connectivity options, including Euroblock, for easy audio integration.
  • Benefit from durable, IP54-rated cabinet speakers, perfect for indoor/outdoor installations.
  • Get peak performance with 360W peak power handling for robust audio output.
  • These Bosch speakers deliver exceptional brand reputation and lasting reliability.

What's in the box:

  • Bosch 2x LB20-PC60-8L 8 " 2-Way Quick Install Cabinet Speaker
  • Mounting Bracket
  • 5mm Allen Wrench
  • Removable Locking 4-Pin Connector (Euroblock)
  • Bosch 3 Year Warranty
