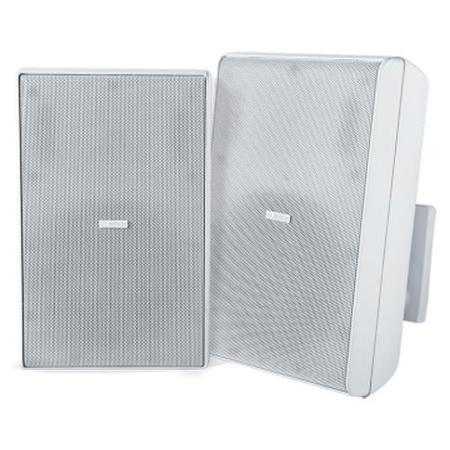

Bosch LB20-PC90-8L 8" 2-Way Quick Install Cabinet Speaker, 8 Ohms, 360W Peak, IP54, White, Pair

SKU: BHLB20PC908L MFR: F.01U.331.739
Earn VIP Reward Points

Key Features

  • Experience superior audio quality with these Bosch commercial speakers, perfect for any setting.
  • Enjoy wide sound dispersion with 90° x 90° coverage, ensuring everyone hears crystal-clear audio.
  • These durable speakers are IP54 rated, ideal for both indoor and outdoor installations.
  • Achieve powerful sound with 360W peak power, ideal for background or foreground music.
  • Quick install cabinet speakers feature removable locking connectors for easy setup and wiring.
  • These 8-Ohm speakers deliver exceptional performance and value for commercial audio solutions.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Bosch LB20-PC90-8L Specifications

  • Frequency Response (-3 dB)

    70 Hz - 20 kHz

  • Frequency Response (-10 dB)

    50 Hz - 20 kHz

  • Sensitivity

    90 dB

  • Max SPL (calculated)

    110 dB (116 dB Peak)

  • Coverage Angle

    Horizontal 90 deg. , Vertical 90 deg.

  • Power Handling

    90W (360W Peak) Continuous Pink Noise (100 hours)

  • Low Z

    Yes

  • Nominal Impedance

    8Ohms

  • Minimum Impedance

    6Ohms

  • Recommended High-Pass

    50 Hz (24 dB/octave)

  • Input Transformer (70V/100V)

    No

  • LF Transducer

    8" (203mm)

  • HF Transducer

    1" (25mm)

  • Connectors

    Captive screws on wall bracket
    Removable locking 4-pin connector (Euroblock) - (2) for connection to additional speakers in a distributed line
    Max. wire size 12AWG (2.5mm)

  • Environmental

    IP54 (per IEC-60529)

  • Packaged Quantity

    2

  • Dimensions (HxWxD)

    390 x 250 x 224mm (15.35 x 9.84 x 8.82")

  • Weight

    5.1kg (11.24 lbs)

  • UPC Code

    800549841535

About Bosch LB20-PC90-8L

The LB20-PC90-8 from Bosch is a high-performance, two-way, full-range, 8" (203mm) surface mount speaker with excellent wide, uniform coverage and outstanding performance. It is designed for background and foreground music, paging and sound reinforcement and it's ideal for a wide variety of indoor and outdoor applications, such as restaurants, bars, patios, retail, fitness clubs, hospitality, theme parks, leisure venues and others. With unparalleled ease-of-installation, sturdy weather resistance, modern and delicate look and its flexible mounting options, the LB20-PC90-8 is the perfect solution for a wide variety of surface mount applications.

The LB20-PC90-8 includes the unique and innovative mount system, from Bosch, making every installation quick, simple and reliable. The mounting system allows for 90 degrees of rotation horizontally and 45 degrees of rotation vertically and it can be easily installed on walls and ceilings. The mounting system comes already assembled and ready to be used, ready to make any job easier. The LB20-PC90-8 has been carefully engineered to resist outdoor environments, without compromising on performance for indoor applications. The full-range speaker is IP54 rated and its weather-proofing is complemented with exceptional cabinet and grille resistance against sun, salt and moisture.

All LB20 models are available in black or white and can be easily painted to match the d cor. Transformer versions are also available for constant voltage systems. The wide range of LB20 surface mount speakers has been designed to work together as a complete system in a variety of different surface mount constructions and to be used in combination with other LB20 ceiling and in-wall speakers.

Bosch LB20-PC90-8L Features

  • Innovative mount system is included for quick, simple, and reliable installations
  • Carefully engineered for outdoor environments (IP54), without compromising performance
  • Long throw 8" (203mm) woofer housed in a fire rated ABS plastic enclosure for extended LF performance down to 50Hz
  • 90W power handling provides for 110 dB maximum SPL (116 dB peak)
  • 70/100V transformer version (LB20-PC60-8) available for constant voltage systems

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience superior audio quality with these Bosch commercial speakers, perfect for any setting.
  • Enjoy wide sound dispersion with 90° x 90° coverage, ensuring everyone hears crystal-clear audio.
  • These durable speakers are IP54 rated, ideal for both indoor and outdoor installations.
  • Achieve powerful sound with 360W peak power, ideal for background or foreground music.
  • Quick install cabinet speakers feature removable locking connectors for easy setup and wiring.
  • These 8-Ohm speakers deliver exceptional performance and value for commercial audio solutions.

What's in the box:

  • Bosch 2x LB20-PC90-8L 8 " 2-Way Quick Install Cabinet Speaker
  • Mounting Bracket
  • 5mm Allen Wrench
  • Removable Locking 4-Pin Connector (Euroblock)
  • Bosch 3 Year Warranty
