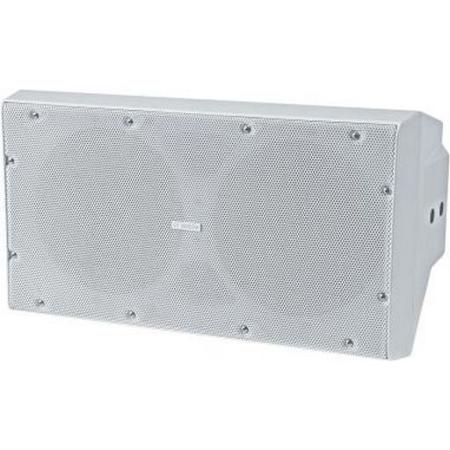

Bosch LB20-SW400-L 2x 10" Cabinet Subwoofer with IP65 Port Covers, 1600W Peak, IP54, White

SKU: BHLB20SW400L MFR: F.01U.331.743
Earn VIP Reward Points

Key Features

  • Experience powerful bass with this Bosch subwoofer, delivering 1600W peak power.
  • Enjoy exceptional sound quality with a frequency response of 33 Hz - 500 Hz.
  • This durable subwoofer is IP54 rated, ensuring reliable performance indoors.
  • Achieve optimal audio with recommended high-pass at 40 Hz (24 dB/octave).
  • Versatile connectivity: features removable locking 4-pin Euroblock connectors.
  • Ideal for outdoor installations with optional IP65 port covers for weather protection.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Bosch LB20-SW400-L Specifications

  • Frequency Response (-10 dB)

    33 Hz - 500 Hz

  • Sensitivity

    94 dB

  • Max. SPL (Calculated)

    120 dB (126 dB Peak)

  • Power Handling

    400W (1600W Peak) Continuous Pink Noise (100 hours)

  • Low Z

    Yes

  • Nominal Impedance

    (2) 8Ohms (stereo mode); (1) 4Ohms (mono mode)

  • Recommended High-Pass

    40 Hz (24 dB/octave)

  • LF Transducer

    Two 10" (254mm)

  • Connectors

    Two removable locking 4-pin connector (Euroblock) - Input and output
    Max. wire size 12 AWG (2.5mm)

  • Environmental

    IP-54 (per IEC-60529); IP-65 with port covers

  • Dimensions (HxWxD)

    356 x 651 x 491mm (14.02 x 25.63 x 19.33")

  • Weight

    17.9kg (39.46 lbs)

  • UPC Code

    800549841573

About Bosch LB20-SW400-L

How can you elevate your outdoor sound experience With the Bosch LB20-SW400-L 2x 10" Cabinet Subwoofer, you can enjoy high-quality, powerful sound in any setting. This durable and reliable subwoofer is designed with dual 10" (254mm) woofers, delivering outstanding performance for the most demanding professional and commercial sound applications.

Perfect for both background and foreground music, this stylish subwoofer is engineered for a variety of indoor and outdoor applications. Whether you're setting the mood at restaurants and bars, pumping up the energy at fitness clubs, or enhancing the ambiance at theme parks and leisure venues, the LB20-SW400-L is your ideal audio solution.

Ease of installation and flexible mounting options make this subwoofer a versatile choice for any surface mount applications. Its IP54 rating ensures resistance against harsh weather conditions, making it perfect for outdoor installations. For even tougher weather conditions, the subwoofer's IP rating can be upgraded to IP65 with the included port plug accessory.

The LB20-SW400-L is not just weather-resistant, but also designed to withstand sun, salt, and moisture, ensuring its high-quality performance is uncompromised in any environment. This subwoofer is part of the wide range of LB20 surface mount speakers, designed to work together as a complete system in various surface mount constructions, and can be used in combination with other LB20 ceiling and in-wall speakers.

Experience the powerful, reliable, and high-quality sound of the Bosch LB20-SW400-L 2x 10" Cabinet Subwoofer, designed for the most demanding audio applications.

Bosch LB20-SW400-L Features

  • Two 10" high-excursion woofers
  • Carefully engineered for outdoor environments (IP54 and IP65), without compromising performance
  • 400W power handling provides for 120 dB maximum SPL (126 dB peak)
  • 70/100V transformer input panel accessory available
  • Crossover input panel accessory available

Key Features

  • Experience powerful bass with this Bosch subwoofer, delivering 1600W peak power.
  • Enjoy exceptional sound quality with a frequency response of 33 Hz - 500 Hz.
  • This durable subwoofer is IP54 rated, ensuring reliable performance indoors.
  • Achieve optimal audio with recommended high-pass at 40 Hz (24 dB/octave).
  • Versatile connectivity: features removable locking 4-pin Euroblock connectors.
  • Ideal for outdoor installations with optional IP65 port covers for weather protection.

What's in the box:

  • Bosch LB20-SW400-L 2x 10 " Cabinet Subwoofer
  • 2x Subwoofer Feet
  • 2x Removable Locking 4-Pin Connector (Euroblock)
  • Allen Wrench
  • Weather Input Cover
  • 8x Screws for Weather Input Cover
  • 2x IP65 Port Covers
  • 12x IP65 Port Cover Screws
  • Bosch Warranty
