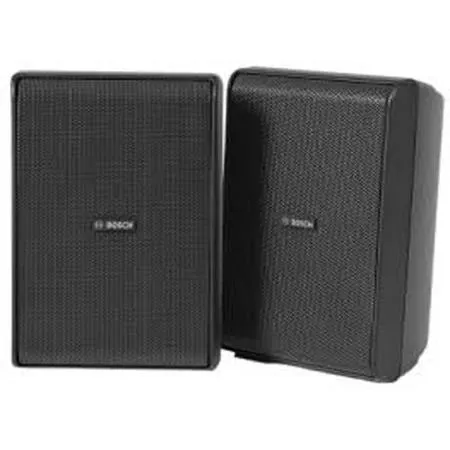

Bosch LB20-PC60EW-5D 5" 2-Way Extreme Conditions Cabinet Speaker, 70/100V Transformer with 8 Ohms Bypass, 300W Peak, IP65, Black, Pair

SKU: BHLB2C60EW5D MFR: F.01U.331.736
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with Bosch's LB20-PC60EW-5D commercial speakers.
  • These durable speakers are IP65 rated, perfect for outdoor installations and harsh conditions.
  • Enjoy versatile audio with 70/100V transformer & 8 Ohms bypass for various setups.
  • Achieve wide, clear audio coverage with a 90° x 90° dispersion angle from speakers.
  • Get peak performance with 300W peak power handling for impactful sound reinforcement.
  • Easily install these on-wall speakers with included U-bracket and Euroblock connectors.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Bosch LB20-PC60EW-5D Specifications

  • Frequency Response (-3 dB)

    90 Hz - 20 kHz

  • Frequency Response (-10 dB)

    55 Hz - 20 kHz

  • Sensitivity

    89 dB

  • Max SPL (calculated)

    108 dB, 114 dB Peak

  • Coverage Angle

    Horizontal 90 deg. , Vertical 90 deg.

  • Power Handling

    75W (300W Peak) Continuous Pink Noise (100 hours)

  • Low Z

    Yes

  • Nominal Impedance

    8Ohms

  • Minimum Impedance

    6.5Ohms

  • Recommended High-Pass

    60Hz (24 dB/octave)

  • Input Transformer (70V/100V)

    60W

  • Transformer Taps

    70V: 60 W, 30 W, 15 W, 7.5 W, 8Ohms
    100V: 60 W, 30 W, 15 W, 8Ohms

  • LF Transducer

    5.25" (133mm)

  • HF Transducer

    0.75" (20mm)

  • Connectors

    Removable locking 4-pin connector (Euroblock) - (2) for connection to additional speakers in a distributed line
    Max. wire size 12AWG (2.5mm)

  • Environmental

    IP-65 (per IEC-60529)

  • Packaged Quantity

    2

  • Dimensions (HxWxD)

    255 x 180 x 150mm (10.04 x 7.09 x 5.91")

  • Weight

    3.2kg (7.05 lbs)

  • UPC Code

    800549841504

About Bosch LB20-PC60EW-5D

The LB20-PC60EW-5, from Bosch, is a high performance, two-way, full-range, 5.25" (133mm) surface mount speaker with excellent wide, uniform dispersion and outstanding performance. It is designed for background and foreground music, voice evacuation, paging and sound reinforcement and it's ideal for a wide variety of indoor and outdoor applications, such as restaurants, bars, patios, retail, fitness clubs, hospitality, theme parks, leisure venues and others. With unparalleled ease-of-installation, exceptional weather resistance, modern and delicate look and its flexible mounting options, the LB20- PC60EW-5 is the perfect solution for a wide variety of surface mount applications.

The LB20-PC60EW-5 has been carefully engineered to resist the toughest weather conditions, without compromising on performance for indoor applications. The full-range speaker is IP65 rated and its weatherproofing is complemented with exceptional cabinet and grille resistance against sun, salt, moisture and chlorine. The LB20-PC60EW-5 includes a versatile U-Bracket that has been designed with the installer in mind, allowing for a wide range of installation applications. The U-Bracket allows for 80 degrees of rotation.

The LB20-PC60EW-5 utilizes a 60W transformer, that offers a selection of 7.5W (70V only), 15W, 30W or 60W delivered to the speaker system using either 70V or 100V lines or 8Ohms bypass for low impedance lines. Selection is done with a convenient switch on the input panel located on the rear of the speaker. The wide range of LB20 surface mount speakers has been designed to work together as a complete system in a variety of different surface mount constructions and to be used in combination with other LB20 ceiling and in-wall speakers.

Bosch LB20-PC60EW-5D Features

  • Carefully engineered for the toughest weather conditions (IP65)
  • Long throw 5.25" (133mm) woofer housed in a UL 94-5VB fire rated ABS plastic for extended LF performance down to 55Hz
  • 90W power handling provides for 108 dB maximum SPL (114 dB Peak)
  • 60W transformer with 8Ohms pass-through

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience superior sound quality with Bosch's LB20-PC60EW-5D commercial speakers.
  • These durable speakers are IP65 rated, perfect for outdoor installations and harsh conditions.
  • Enjoy versatile audio with 70/100V transformer & 8 Ohms bypass for various setups.
  • Achieve wide, clear audio coverage with a 90° x 90° dispersion angle from speakers.
  • Get peak performance with 300W peak power handling for impactful sound reinforcement.
  • Easily install these on-wall speakers with included U-bracket and Euroblock connectors.

What's in the box:

  • Bosch 2x LB20-PC60EW-5D 5 " 2-Way Extreme Conditions Cabinet Speaker
  • U-Bracket
  • 5mm Allen Wrench
  • Input Cover
  • Removable Locking 4-Pin Connector (Euroblock)
  • Bosch 3 Year Warranty
