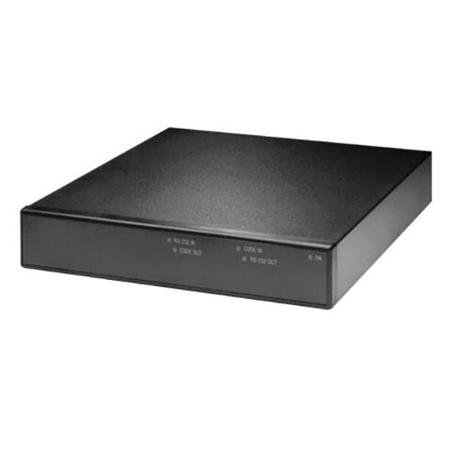

Bosch LTC 8780/50 Data Converter Unit, Allegiant Biphase Control Code to RS-232
See all Bosch items

Bosch LTC 8780/50 Data Converter Unit, Allegiant Biphase Control Code to RS-232, 230 VAC

SKU: BHLTC878050

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Bosch LTC 8780 Specifications

Certifications and Approvals

Certifications and Approvals

Jump to...

  • Electromagnetic Compatibility (EMC)

    Complies with FCC Part 15, ICES-003, and CE regulations

  • Safety

    Complies with CE regulations, UL, CSA, EN, and IEC Standards

  • Region

    Europe, CE

Electrical

Jump to...

  • Rated Voltage

    230 VAC
    50/60 Hz

  • Voltage Range

    198 to 264

  • Power at Rated Voltage

    4 W

  • Indicators

    Power: Green LED
    Code In: Green LED
    RS-232 In: Green LED
    Code Out: Red LED
    RS-232 Out: Red LED

Connectors

Jump to...

  • Inputs

    Bi-Phase control code: One (1), 15-pin connector (mating connector supplied) RS-232: One (1), 9-pin male connector (pin compatible with industry standard modem cable (mating cable not supplied)

  • Outputs

    Bi-Phase control code: Three (3), 15-pin connectors providing a total of 15 separate BiPhase outputs (mating connectors supplied) Console: One (1), 9-pin male connector (mating cable compatible with Allegiant Console port supplied) AC Input 3-wire power cord with grounded plug; 1.8 m (6') long

  • AC Input

    3-wire power cord with grounded plug; 1.8 m (6') long

Environmental

Jump to...

  • Operating Temperature

    -18 Degree C to 50 Degree C (0 Degree F to 122 Degree F)

  • Storage Temperature

    -40 Degree C to 60 Degree C (-40 Degree F to 140 Degree F)

  • Humidity

    10% to 90% relative, non-condensing

  • Vibration

    3g swept sine wave, 15 Hz to 2000 Hz

  • Shock

    30g, 11 ms, 1/2 sine

Mechanical

Jump to...

  • Construction

    Steel chassis with sheet metal cover and plastic bezel

  • Finish

    Charcoal

  • Dimensions (W x D x H)

    8.77 x 11 x 1.59" (223 x 280 x 40mm)

  • Weight

    3.5 lb (1.6kg)

About Bosch LTC 8780

The LTC 8780 Series are accessory units that convert the Allegiant system's Bi-Phase control code into RS-232, or convert RS-232 back to Bi-Phase code. They provide the capability of transmitting the control code over conventional RS-232 transmission mediums such as phone modems, fiber optics, microwaves, etc. The unit accepts the Bi-Phase control code generated by an Allegiant main CPU bay, Bosch Series DVRs, Signal Distribution units, and LTC 8569 Series Code Merger units.

The LTC 8780 Series are also designed to perform the Satellite selector functions in an Allegiant satellite system configuration. In addition, using its integral signal distribution capability, the LTC 8780 Series can function as remote distribution units for driving up to 120 receiver/driver devices connected to its 15 outputs. As a distribution unit, wiring can be in either a star or daisy chain configuration, and each output is capable of driving eight (8) daisy chained receiver/ driver loads, at up to 1.5 km (5000 ft) away using 1 mm2 (18 AWG) shielded twisted pair (Belden 8760 or equivalent).

Bosch LTC 8780 Features

  • Designed for various applications utilizing Allegiant Series Switchers
  • Converts Allegiant Bi-Phase control code to RS-232 and RS-232 to Bi-Phase
  • Provides satellite address decoding
  • Signal distribution mode provides 15 separate outputs

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Designed for various applications utilizing Allegiant Series Switchers
  • Converts Allegiant Bi-Phase control code to RS-232 and RS-232 to Bi-Phase
  • Provides satellite address decoding
  • Signal distribution mode provides 15 separate outputs

What's in the box:

  • LTC 8780/50 Data Converter Unit
  • Bosch 3 Year Limited Warranty
