Bosch LTC 8786/50 RS-232 to Biphase Converter with 16 Bitphase outputs
See all Bosch items

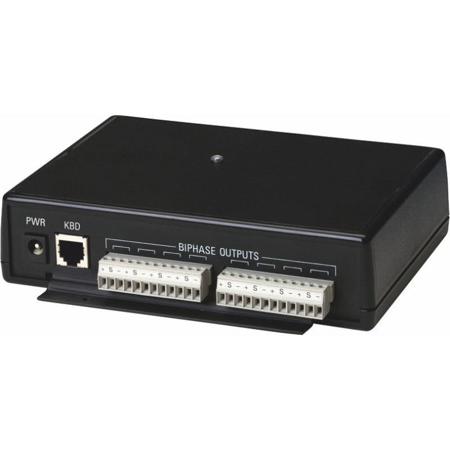

Bosch LTC 8786/50 RS-232 to Biphase Converter with 16 Bitphase outputs, 220-240 VAC

SKU: BHLTC878650

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Bosch LTC 8786 Specifications

Certifications and Approvals

Certifications and Approvals

Jump to...

  • Agency Certifications

    EMC Immunity: EN50130-4
    EMC Emission EN55022-1, FCC Part 15, Class A

  • Safety

    Converter: CE, LVD 73/23/EEC
    Power Supply Adapter: CE, UL, CSA, TUV

Electrical

Jump to...

  • Rated Voltage

    220 240 VAC, 50/60 Hz

  • Voltage Range

    195.5-253 VAC

  • Nominal Power

    3 W (at rated voltage)

  • Indicator

    3 W (at rated voltage)

Connectors

Jump to...

  • Data In

    9-pin D Connector (a 9-pin adapter is supplied), RJ-11

  • Bi-Phase Output

    Removable terminal blocks with three connections: (+), (-), and (S [Shield]) for each of the sixteen Bi-Phase code outputs

  • Power Connector

    1.8m (5.75') power supply cable with bayonet type plug

  • Transmission Distance

    1.5km (5000') using 1 mm Square (18 Degree AWG) shielded twisted pair cable (Belden 8760 or equivalent)

Environmental

Jump to...

  • Operating Temperature

    Range 0 Degree C to 40 Degree C (32 Degree F to 144 Degree F)

  • Operating Humidity

    10% to 90% non-condensing

Mechanical

Jump to...

  • Case

    Black plastic with metal mounting flanges

  • Dimensions (Overall) (W x D x H)

    6.08 x 5.25 x 1.5" (154 x 132 x 38mm)

  • Weight

    0.7 lb (0.132kg)

About Bosch LTC 8786

The LTC 8786 Series of data converters are designed to convert Bosch "Receiver/Driver and AutoDome RS-232 Control Code Protocol" into Allegiant Bi-Phase control code.

These units are specifically designed to transform a single data output from a PC-based DVR (or a similar device) into multiple control code outputs for operating AutoDome cameras.

The Bosch "Receiver/Driver and AutoDome RS-232 Control Code Protocol" is a simplex RS-232 data format designed to communicate with the Bosch line of receiver/drivers, AutoDome cameras, LTC 8786 converters, and other compatible accessory devices. Complete information on the protocol can be obtained by downloading the manual from the AutoDome section.

The input RS-232 baud rate of the LTC 8786 Series is fixed at 9600 baud, 1 stop bit, 8 data bits, no parity, and no handshake. The LTC 8786 Series units can be connected directly to the RS-232 serial port of a PC using an industry standard null modem cable. If another connection type is required, an interface cable can easily be constructed using the supplied 9-Pin D connector.

Bosch LTC 8786 Features

  • For use with PC or other devices running user supplied video controller software
  • Provides up to 16 Bi-Phase control code outputs
  • Each output operates up to 8 devices in a daisy chain
  • Compact design

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • For use with PC or other devices running user supplied video controller software
  • Provides up to 16 Bi-Phase control code outputs
  • Each output operates up to 8 devices in a daisy chain
  • Compact design

What's in the box:

  • LTC 8786/50 RS-232 to Biphase Converter
  • Power Supply Adapter
  • 1.8m (5.75') Power Supply Cable with Bayonette Plug
  • Subminiature 9-Pin D Connector
  • 4x Adhesive Backed Rubber Feet
  • Bosch 3 Year Limited Warranty
