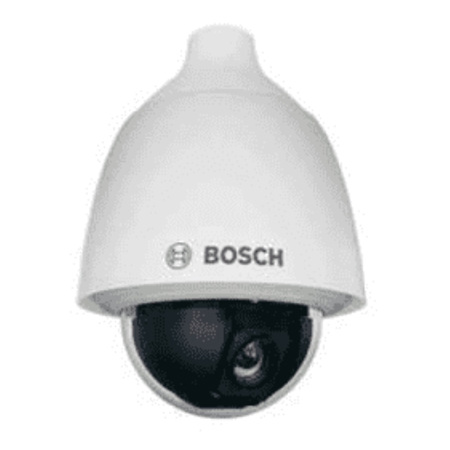

Bosch AUTODOME 5000 960H PTZ Outdoor Camera, 36x, PAL, Tinted Bubble, 720TVL
See all Bosch items

Bosch AUTODOME 5000 960H PTZ Outdoor Camera, 36x, PAL, Tinted Bubble, 720TVL

SKU: BHVEZ513EWTR

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Bosch AUTODOME 5000 Specifications

Camera

Camera

Jump to...

  • System

    PAL

  • Image Sensor

    960H, 1/4" Double Scan CCD, 720TVL sensor resolution

  • Effective Pixels (HxV)

    Approx. 570,000; 976 x 582

  • Horizontal

    Resolution 720TVL (960H with WDR capability)

  • Lens

    3.43 mm - 120 mm, F1.6-F4.5

  • Focus

    Constant, Manual, Spot

  • Iris

    Auto, Manual

  • Optical Zoom Field of View (DxHxV)

    Wide: 72.3 Degree x 57.8 Degree x 43.4 Degree
    Tele: 2.13 Degree x 1.70 Degree x 1.28 Degree

  • Gain Control

    Auto, Manual

  • Digital Zoom

    12x

  • Sensitivity (typical)

    30 IRE
    Day mode: 0.1 lux, under F1.6
    Night mode (black and White): 0.01 lux, under F1.6

  • Electronic Shutter Speed

    1/50 to 1/10000 second

  • Wide Dynamic Range (WDR)

    60 dB

  • Signal-to-Noise Ratio

    >50 dB (with AGC off)

  • White Balance

    Auto, Manual, Indoor, Outdoor, ATW

  • Video output

    1.0 Vp-p / 75Ohm, BNC

Mechanical

Jump to...

  • Pan Range

    360 Degree continuous

  • Tilt Range

    0 Degree to 180 Degree

  • Manual Speed

    0.5 Degree to 90 Degree /second

  • Pre-position Speed

    5 Degree to 360 Degree /second

  • Preset Accuracy

    0.225 Degree

  • Flip

    Image: 180 Degree
    Mechanical : 90 Degree

Electrical

Jump to...

  • Input Voltage

    24 VAC, 50/60 Hz

  • Power Consumption, typical

    50 W (with heater)

General

Jump to...

  • Privacy Masking

    20 individually-configurable masks

  • DNR

    2 DNR / 3 DNR

  • AGC Control

    Auto, Manual

  • Backlight Compensation

    On, Off

  • Proportional Pan / Tilt

    On, Off

  • Image Enhancement

    Zoom, Stabilize, Off

  • Night Mode

    On, Off, Auto

  • Auto SensUp Max

    2x to 60x or Off

  • Prepositions

    99

  • Tours

    8

  • AutoPan

    4

  • Preset Tours

    8

  • Camera Setup / Control

    RS-485

  • Communications Protocols

    Bosch OSRD, Pelco D/P

  • Supported Languages

    English, Dutch, French, German, Italian, Polish, Portuguese, Russian, Spanish, Simplified Chinese

Alarm Connections

Jump to...

  • Inputs

    Four (4): 5V 10 kOhm Pull Up

  • Outputs

    Two (2): Relay output, max. 2 A, 30 VDC / 0.5 A, 125 VAC

Environmental

Jump to...

  • Ingress Protection Rating

    IP66

  • Operating Temperature

    -40 Degree C to +50 Degree C (-40 Degree F to 122 Degree F)

  • Storage Temperature

    -20 Degree C to +70 Degree C (-4 Degree F to 158 Degree F)

  • Humidity

    10% to 90% relative, noncondensing

  • Heater

    Heater Turns on at -7 Degree C (19.4 Degree F),
    Turns off at +3 Degree C (37.4 Degree F)

Construction

Jump to...

  • Construction Material

    Housing: Die-cast aluminum
    Sunshield: Outdoor Grade Plastic

  • Standard Color

    White (RAL 9003)

  • Dimensions (D x H)

    With Sunshield: 8.19 x 11.63" (208 x 295.5mm)
    Without Sunshield: 7.36 x 11.63" (187 x 295.5mm)

  • Weight

    8 lb (3.3kg) with sunshield

Other

Jump to...

  • UPC Code

    800549737036

About Bosch AUTODOME 5000

The AUTODOME 5000 Series day/night PTZ camera is based on a high-resolution 960H sensor that is capable of delivering a maximum resolution of 720TVL. The Wide Dynamic Range of the sensor allows the camera to capture detailed images even in challenging high-contrast scenes.

The camera provides variable pan/tilt speeds ranging from a fast patrol of 360 Degree per second to a slow ramble of 5 Degree per second with 0.225 Degree pan/tilt accuracy. The 360 Degree endless rotation and 0 Degree to 180 Degree tilt travel help to track an object passing directly beneath the camera. The AUTODOME 5000 features an RS-485 port, compatible with the Bosch LTC 5136 controller and the MIC-BP3 Biphase Converter for quick setup and control. The camera also supports the OSRD and the Pelco P/D protocols for easy integration with existing surveillance systems.

Bosch AUTODOME 5000 Features

  • True day/night PTZ dome camera with 432x zoom (36x extended zoom, 12x digital zoom)
  • Ultra high resolution up to 720TVL (960H with WDR)
  • Vandal-resistant housing rated to IK10
  • Privacy masking, image enhancement, motion detection and Wide Dynamic Range

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • True day/night PTZ dome camera with 432x zoom (36x extended zoom, 12x digital zoom)
  • Ultra high resolution up to 720TVL (960H with WDR)
  • Vandal-resistant housing rated to IK10
  • Privacy masking, image enhancement, motion detection and Wide Dynamic Range

What's in the box:

  • AUTODOME 5000 960H PTZ Outdoor Camera
  • Bosch 3 Year Limited Warranty
