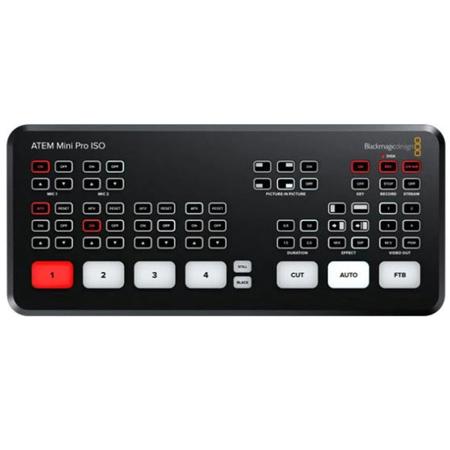

Blackmagic Design ATEM Mini Pro ISO HDMI Live Stream Switcher, Bundle with USB-C 3.1 Gen 1 to USB-A Female Adapter Cable and HDMI Male Cable

SKU: BMATEMMINSOB MFR: SWATEMMINIBPR/ISO B
Earn VIP Reward Points

PACKAGE INCLUDES:

  • ATEM Mini Live Production Switcher Pro ISO
    ATEM Mini Live Production Switcher Pro ISO
  • +
  • Kramer Electronics USB-C 3.1 Gen-1 to USB-A Female Adapter Cable
    Kramer Electronics USB-C 3.1 Gen-1 to USB-A Female Adapter Cable
  • +
  • Kramer Electronics 6' Standard HDMI Mate to HDMI Male Cable
    Kramer Electronics 6' Standard HDMI Mate to HDMI Male Cable
  • +
  • Show more

Key Features

  • Enhance live streams with the ATEM Mini Pro ISO's high video quality and reliable connectivity.
  • Easily switch between 4 HDMI inputs for dynamic, multi-camera live production and streaming.
  • Record directly to external USB drives in H.264 for efficient content creation and archiving.
  • Use the intuitive software control panel for seamless operation and real-time streaming control.
  • Achieve professional audio mixing with Fairlight audio tools, ensuring clear sound for viewers.
  • Enjoy versatile compatibility with various cameras and devices for flexible live productions.
See More Product Details
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$59.99

3 Year

$79.99

4 Year

$109.00

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Learn
Specs
Protection
Q&A

Questions & Answers

Shopper : Do I get a free davinci resolve with it?STEVE I : you can download a free version of it on the blackmagic design website. the studio version is $295. not sure if one comes with the ATEM.VANYA E : Yes.
Shopper : Why Did You Choose This?KENNY R : Came with some cables I didn't have to purchase. But ISO needs for recordingJAMES M : Recommended by a friend for live streamingANDREW O : I have the Mini Pro & wanted to upgrade to the ISO for full recording of output and all inputs for easier editing later.MARK C : school required itALEX K : Excellent product for current needs of live streaming worship services, plus options for future expansion.MICHAEL O : Swapping cameras to product video & demonstrations during sales callsGIILEH S : For the ability to edit each camera capture if i choose to, and to stream live production.LUIS B : i need to live stream vía YouTubeDARREN W : Came recommended by an audio specialist.WILLIAM L : After Buying the Blackmagic Design ATEM Mini, I came into further information about the Blackmagic Design ATEM Mini Pro ISO's ability to create Davinci Resolve files on the fly while editing. Must Have! Plus I like the ability to have a separate recording for each camera! So decided to upgrade.TIMOTHY S : Already have the Atem Mini and super pleased with what it does for the price.MATTHEW M : Research for streamingCHARLES M : ISO recording, Davinci Resolve edit optionRICHARD M : I wanted to be able to record and immediately open a davinci project, it sounds cool!Tyler W : Ability to record all video sends separatelyJOHANS A : I love this bundle. I will use this device for my work.QUENTIN A : RecommendedSCOTT C : Need a solution for virtual live events and I'm going to give this a tryKevin M : it can recordSTEPHEN V : best value and revolutionary for streaming all in oneMONIKA M : I chose this in order to take my video/cinema production to the next level up.ANDY A : Saw the set up for church streaming on YouTube.GARFIELD G : I’m a Blackmagic user for many many yearsSTEVEN R : BlackmagicDesign makes great production products for creators at an unbeatable price. I chose this product because I want to create outstanding live stream productions with recordable functionality at an affordable price. The ATEM Mini Pro ISO also has a five stream recording engine and can record directly to a usb flash drive.ERIC K : I used an ATEM Mini Pro for a production. Loved it but ultimately decided to upgrade to the ISO for the multistream recording capability.BROCK F : Needed an easy switcherCHRIS E : I have an ATEM Mini Pro, but jumped at the ISO to record all feeds separately. Game Changer

Reviews about this item

Review Summary

2025-05-27T08:14:30

Rated 5 out of 5

Atem Pro ISO

Great product, easy to use and set up. Great service and fast shipping

TINORA L.

2024-04-05T05:09:39

Rated 4 out of 5

My key equipment for Livestreaming

I love this product. The only thing I wish was that it had 2 USB-C ports so I can record and use it for livestreaming at the same time. I don't want to buy the extreme version which has 8 camera inputs as its an overkill for me. Otherwise, this is a great product for livestreaming. The PiP function via buttons is just a joke where it does not let me use the size I want.. I hope they fix this in future firmware updates.

Krishnakumar V.

2023-11-09T10:30:13

Rated 5 out of 5

Very good item

Very good item

Johanna M.

2023-11-01T12:22:47

Rated 5 out of 5

Worth the money

Great product. Quality and performance is outstanding

KAMALYA M.

2023-02-23T06:23:24

Rated 5 out of 5

Fast shipping

Fast shipping and arrived in perfect condition.

JASON S.

2023-02-01T07:28:22

Rated 5 out of 5

Great video switcher

This is a great switcher. I use for live streaming church services and I am more than pleased with the efficiency of this device. It switches between 4 cameras or HDMI devices, I use it with cameras and an NDI feed from my Mac and it does wonders. I can do lower this, picture in picture and even run macros using the included software. It works great and is definitely worth the price.

FRANCISCO M.

2022-12-04T07:36:30

Rated 5 out of 5

Versatile switcher.

Go to switcher. Love the fact that it has iso record and can stream to the destination I choose.

John N.

2022-12-01T12:17:44

Rated 5 out of 5

Very affordable

Great idea for anyone else trying to get into live streaming

Sean A.

2022-10-24T16:16:09

Rated 5 out of 5

This is a very useful product. I highly recommend it to anyone working with audio/visual.

I am very happy with this product. I am using it for personal recording. It works very well. Thank you for having this product.

Phil T.

2022-10-21T21:34:11

Rated 5 out of 5

$200 Reduction in price made me buy it.

I had been eyeing the Mini for a long time and almost bought it a few weeks ago but decided to wait, and I'm glad I did. The Mini was discontinued and the Mini-Pro was reduced in price by $200 which was just enough of a reduction in price to make me buy. I own a lot of cameras. I hooked up four of them (Olympus OM-D E-M1 Mark II Mirrorless, Pentax K-70 DSLR, Nikon D3500 DSLR, Canon T2i DSLR) and then played around with it. I was impressed with how well it worked and more so by how well it accepted the old Canon T2i and low-end Nikon D3500. I was most impressed that I was able to record to an external drive connected to the USB port of the Mini-Pro and how it just kept on recording when one of the four cameras suddenly shut down (dead battery). This is going to be a lot of fun to play with.

CHARLES N.

2022-09-30T15:16:30

Rated 3 out of 5

Desappointed

The purchase was smooth and what motivated me the most was the possibility of fast delivery (next day) due to the urgency I had. The problem is that after 3 days of purchase I still haven't received the product and apparently it will take at least 3 more days, that is, I won't get the product in the time I need it. Disappointed.

FRANCISCO S.

2022-09-21T10:46:03

Rated 5 out of 5

Good value- very powerful

Easy to setup and use

Thomas K.

2022-07-01T10:21:57

Rated 4 out of 5

BlackMagic ATEM

I love this thing! I love how it can be networked and controlled by up to four different t computers giving me a broadcast team! I o my wish it had 2 hdmi outputs.

Michael C.

2022-06-15T09:00:02

Rated 5 out of 5

Great solution!

This is an amazing piece of tech that makes streaming so easy. More audio controls and a headphone out would be nice, but there are workarounds for these issues. Overall, I am very pleased!

ZACHARY S.

2022-05-17T08:14:39

Rated 5 out of 5

ATEM Mini Pro

This device has upgraded my production quality in a tremendous way. It?s lightweight, portable and a production beast. The only thing I wish is that there were two outputs so that I could have a multi view AND a program out but for the price and quality, this device absolutely delivers!!

TRANISE F.

2022-05-10T21:31:46

Rated 5 out of 5

It?s easy to use . But it doesn?t have turn off switch

It is a good product

WILFRED R.

2022-04-20T11:24:47

Rated 5 out of 5

You need this one

Its really reliable and easy to use. take the stress off my MacBook Pro.

carlos c.

2022-03-30T09:48:11

Rated 4 out of 5

So far so good.

Still testing it before the big event but I really like how the footage looks.

LOGAN A.

2022-03-17T09:47:10

Rated 5 out of 5

Awesome!

Clean and strait to the point!

ROY D.

2022-03-04T07:40:44

Rated 5 out of 5

ATEM Mini Pro

Great switcher, easy to learn and easy to use. Can?t wait to really start it on it?s paces

LEONARD S.

2022-02-11T09:08:21

Rated 5 out of 5

Great

Great Equipment and customer service

BRUCE T.

2022-02-01T08:11:40

Rated 4 out of 5

Good Product, but Clunky Workflow in Control Software

I like this encoder quite a lot - it is plug and play with my blackmagic cameras, and the switching / monitoring features are intuitive. I travel onsite for most of my work, so the fact that it is so lightweight and durable makes a huge difference. The control software however is not easy to use. The graphic overlay feature is especially time consuming. If Blackmagic does a major overhaul on the control software then I will have no complaints at all!

Matthew P.

2022-01-31T07:23:45

Rated 4 out of 5

Nice for the price

Smooth, does what it says. Only has pre set effect transition speeds but fine for the price.

MARTIN S.

2022-01-25T07:57:52

Rated 5 out of 5

If you're gonna start streaming... this is it.

It does what it says and doesn't it reliably. Can't think of anything negative about it and a great deal too.

ELLIOT C.

2022-01-23T09:57:23

Rated 5 out of 5

Great product

Easy to set up and use right out of the box. And the app gives tons of control over a bunch of cool features.

LAMONTE W.

2021-12-17T10:49:24

Rated 5 out of 5

Mini Pro upgrade

Upgraded from the ATEM Mini to the Mini Pro and found the difference is significant with the ability to preview all inputs. Used this for a live production and would not have been able to do it near as well with the older Mini.

TERRY L.

2021-12-05T13:08:20

Rated 5 out of 5

Great purchase

Does exactly what is described. Great for video podcast and simple live productions

MICHAEL L.

2021-10-15T08:38:07

Rated 4 out of 5

Mis IDSs

It is a good product but miss SDIs

HERMES T.

2021-10-15T08:37:09

Rated 5 out of 5

The Only thing that you need

The BMD Atem Mini Extreme is all that you need to be a professional live broadcaster

Hermes T.

2021-10-03T10:31:17

Rated 5 out of 5

I love it.

I work with it in our church and it work so great and so many a different features I love it.

JOHN J.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Blackmagic Design ATEM Mini Specifications

Connections

Connections

Jump to...
  • Total Video Inputs

    4

  • Total Outputs

    2

  • Total Aux Outputs

    1

  • Total Audio Inputs

    2x 3.5mm stereo mini jack

  • Total Audio Outputs

    No, embedded audio only

  • Timecode Connection

    No

  • HDMI Video Inputs

    4x HDMI type A, 10-bit HD switchable
    2-channel embedded audio

  • Video Input Re-Sync

    On all 4 HDMI inputs

  • Frame Rate and Format Converters

    On all 4 HDMI inputs

  • HDMI Program Outputs

    1

  • Ethernet

    Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection

  • Computer Interface

    1x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection

Standards

Jump to...
  • HD Video

    Input Standards: 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60

    Output Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60

  • Ultra HD Video Standards

    No

  • Video Sampling

    4:2:2 YUV

  • Color Precision

    10-bit

  • Color Space

    Rec 709

  • HDMI Input Resolutions from Computers

    1280 x 720p 50Hz, 59.94Hz and 60Hz
    1920 x 1080p 23.98, 24, 25, 29.97,30, 50, 59.94 and 60Hz
    1920 x1080i 50 and 59.94Hz 60Hz

  • Colorspace Conversion

    Hardware based real time

Specifics/Keys

Jump to...
  • Upstream Keyers

    1

  • Downstream Keyers

    1

  • Advanced Chroma Keyers

    1

  • Linear/Luma Keyers

    2

  • Transition Keyer

    DVE only

  • Total Number of Layers

    5

  • Pattern Generators

    1

  • Color Generators

    2

  • DVE with Borders and Drop Shadow

    1

  • Interface

    Minimum monitor resolution of 1366 x 768

  • Audio Mixer

    6 input x 2 channel mixer
    Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel
    Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control

  • Analog Input

    Unbalanced stereo

  • Analog Input Delay

    Up to 8 frames

  • Input Impedance

    1.8k

  • Max Input Level

    +6dBV

  • Mic Plug In Power

    Available on both 3.5mm mini jack connections

Streaming

Jump to...
  • Direct Streaming

    ATEM Mini Pro ISO supports direct live streaming over ethernet using Real Time Messaging Protocol (RTMP)

Recording

Jump to...
  • Direct Recording

    Video and Audio: USB-C 3.1 Gen 1 expansion port can record directly to external media.

  • Video Recording

    4x HDMI ISO inputs as H.264 .mp4 files at up to 70Mb/s quality at the ATEM video standard with AAC audio

    1x Program out as H.264 .mp4 file at the Streaming quality setting and at the ATEM video standard with AAC audio

  • Audio Recording

    6x 2 channel audio inputs recorded as separate 24-bit 48KHz .wav files. Including 2 x analog stereo audio inputs and 4 x HDMI 2 channel embedded audio inputs

  • Switching

    Program switching recorded as a DaVinci Resolve project .drip file

  • Media Format

    Supports media formatted ExFAT (Windows/Mac) or HFS+ (Mac) file system

Multi View Monitoring

Jump to...
  • Multi View Monitoring

    1x 10 Views including left right configurable Program/Preview, 4 HDMI inputs, Media Player, Streaming Status, Recording Status and Audio Meters

  • Multi View Video Standard

    HD

Media Player

Jump to...
  • Media Players

    1

  • Channels

    Fill and key for each Media Player

  • Media Pool Still Image Capacity

    20 with fill and key

  • Media Pool Still Image Format

    PNG, TGA, BMP, GIF, JPEG and TIFF

Control

Jump to...
  • Control Panel

    Built in control panel. Software control panel with camera control included
    Supports optional hardware panel

  • Control Panel Connection

    Ethernet supports 10/100/1000 BaseT. Ethernet used for direct connection between panel and chassis or via network
    ATEM Mini Pro ISO also supports direct USB-C connection. Ethernet or USB-C used for updating the software

  • Control Panel Compatibility

    Includes ATEM Software Control Panel. Also compatible with ATEM 1 M/E Advanced Panel, ATEM 2 M/E Advanced Panel and ATEM 4 M/E Advanced Panel. ATEM Mini Pro ISO can be configured using Blackmagic Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control Pro

  • Control Panel Included

    ATEM Software Control Panel included free for Mac 10.14 Mojave, Mac 10.15 Catalina or later and Windows 10 64 bit only

Software

Jump to...
  • Software Updates

    Using USB or Ethernet connection directly connected to Mac OS X or Windows computers. Includes ATEM Switcher Utility

  • Configuration

    Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis

Operating Systems

Jump to...
  • Operating Systems

    Mac 10.14 Mojave, Mac 10.15 Catalina or later
    Windows 10, 64-bit

  • Power Supply

    1x External 12V power supply.

  • Power Usage

    36W

Environmental

Jump to...
  • Operating Temperature

    41 Degree - 104 Degree F (5 Degree C to 40 Degree C)

  • Storage Temperature

    14 Degree to 140 Degree F (-10 Degree to 60 Degree C)

  • Relative Humidity

    0% to 90% non-condensing

Physical

Jump to...
  • Dimensions

    9.35 x 4.07 x 1.38" (23.7 x 10.3 x 3.50cm)

  • Weight

    19.4 oz (549.9g)

  • UPC Codes

    192223155992, 9338716006872, 7291063082260, 7290012307515

Related Articles & Videos

How to Live Stream, Step-by-Step in 2024

How to Live Stream, Step-by-Step in 2024

Live streaming is a highly effective way to engage with and grow your audience online. It allows viewers to interact with you directly and follow along with what you're presenting in real-time. Running a live stream is like having your own broadcast network at your fingertips, but without the upfron...
Read more
Level Up Your Virtual Meetings
Blackmagic Introduces new Pocket Cinema Camera 6K Pro, ATEM Mini Live Extreme

Blackmagic Introduces new Pocket Cinema Camera 6K Pro, ATEM Mini Live Extreme

Today, Blackmagic introduced a variety of new innovations to help videographers and producers elevate and streamline their work: the Blackmagic Pocket Cinema Camera 6K Pro, the Blackmagic Desig...
Read more
Blackmagic Design Just Launched the New ATEM Mini Pro

Blackmagic Design Just Launched the New ATEM Mini Pro

Blackmagic has released an upgraded version of the popular and affordable ATEM Mini. The new Read more

About Blackmagic Design ATEM Mini

FEATURED REVIEWS

FANTASTIC DEVICE!

By Gary L.

This product works as advertised. It has made life much easier for me. It's not a high end switcher just based on the inputs and function capacity, so be sure to have your expectations in order. It's not made for high end productions. It's made for the prosumer market or record-to-web audience viewing on popular social media platforms such as YouTube & Facebook. It's great for me because I was using the Blackmagic Web Presenter as a pseudo switcher for a couple of cameras and was able to repl...

View full Review

Small and powerful.

By PETER O.

This is a very nice, very well built, small but powerful switcher/streamer. We are big Blackmagic users, and this little ATEM is a welcome addition to our team. It just works. Works connected to a computer to stream to the internet live pictures from HD cameras and stills. A video player can also be connected to transmit pre-recorded video. It can key green screen and titles stored in the computer. In the connected computer, audio, still storage and the video imputes can also be selected. Lim...

View full Review

After elevating live production capabilities, the ATEM Mini Pro ISO Live Production Switcher emerges as a game-changer for broadcasters and live streamers. This advanced model not only allows for the simultaneous recording of up to five separate H.264 video streams in real-time but also provides a pristine clean feed of all inputs along with the live program output. This feature is indispensable for professionals who require the highest quality recordings of each individual input for post-production flexibility.

The ATEM Mini Pro ISO doesn't just stop at recording. It also saves a DaVinci Resolve project file, streamlining the post-production process by enabling you to open your live production as a video edit directly within the renowned color grading and editing suite. With this functionality, you can refine edits, swap shots, remix audio, and apply comprehensive color correction with ease. The integration with DaVinci Resolve is seamless, with all cuts, dissolves, and media pool graphics pre-loaded for immediate fine-tuning.

Metadata tags such as synced timecode and camera numbers are embedded within the video files, ensuring a smooth editing workflow. The inclusion of the DaVinci Resolve Sync Bin is particularly noteworthy, as it simplifies shot selection through its intuitive multiview interface, and the ability to relink to Blackmagic RAW files means that you can elevate your production with professional color grading and finishing in Ultra HD.

The ATEM Mini Pro ISO is not only powerful in terms of recording and editing capabilities but also excels as a live production switcher. It boasts four standards-converted HDMI inputs, USB webcam output, and an audio mixer complete with EQ and dynamics. The switcher also offers a 2D digital video effect (DVE) for picture-in-picture effects, a range of transitions, and a green screen chroma key for creating stunning visual effects. Additionally, it can store up to 20 stills for titles, ensuring that your production has a professional and polished look.

For live streaming, the ATEM Mini Pro ISO is equipped with a built-in hardware streaming engine compatible with popular platforms like YouTube Live, Facebook, Twitch, and more. It also supports recording to USB disks in H.264 format, allowing for easy archiving and distribution of content. The multiview output enables you to monitor all camera feeds on a single display, enhancing your ability to manage live production with confidence and precision.

In summary, the ATEM Mini Pro ISO Live Production Switcher, bundled with the Kramer USB-C 3.1 Gen-1 to USB-A Female Adapter Cable and the Kramer Standard HDMI (M) to HDMI (M) Cable, 6', offers an unparalleled combination of live switching, multi-stream recording, and post-production capabilities, making it an essential tool for any serious video producer looking to enhance their live event coverage and post-event editing workflow.

Blackmagic Design ATEM Mini Features

  • Features miniaturized control panel based design
  • Built in support for recording each input as a separate ISO file
  • Saves DaVinci Resolve project file for 1 click editing of live production
  • Supports connecting up to 4 cameras or computers
  • Live streaming via Ethernet supported on ATEM Mini Pro
  • USB output operates as a webcam and supports all video software
  • Automatically standards converts and re-syncs all HDMI inputs
  • Includes free ATEM Software Control for Mac and Windows
  • Internal media for 20 RGBA graphics for titles, opening plates and logos
  • Includes ATEM Advanced Chroma Key for green/blue screen work
  • Multiview allows monitoring of all cameras on ATEM Mini Pro
  • Audio mixer supports limiter, compressor, 6 band EQ and more

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Enhance live streams with the ATEM Mini Pro ISO's high video quality and reliable connectivity.
  • Easily switch between 4 HDMI inputs for dynamic, multi-camera live production and streaming.
  • Record directly to external USB drives in H.264 for efficient content creation and archiving.
  • Use the intuitive software control panel for seamless operation and real-time streaming control.
  • Achieve professional audio mixing with Fairlight audio tools, ensuring clear sound for viewers.
  • Enjoy versatile compatibility with various cameras and devices for flexible live productions.

What's in the box:

  • Blackmagic Design ATEM Mini Pro ISO HDMI Live Stream Switcher
  • 12V Power Supply with International Adapters
  • Blackmagic Design 1 Year Limited Warranty
  • Bundle Includes:
  • Kramer Electronics USB-C 3.1 Gen 1 to USB-A Female Adapter Cable
  • 6' Standard HDMI (M) to HDMI (M) Cable
