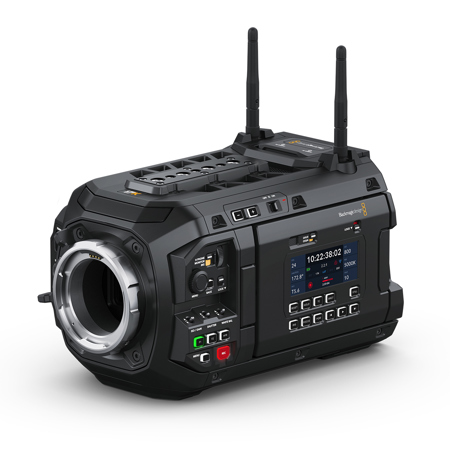

Blackmagic Design URSA Cine 17K 65 Digital Cinema Camera Body

SKU: BMDBMURSA17 MFR: CINEURSAA17K65BODY
Earn VIP Reward Points

Key Features

  • Capture stunning visuals with the URSA Cine's 17K 65mm format sensor for unparalleled image quality.
  • Achieve cinematic excellence with 16 stops dynamic range, perfect for HDR and vibrant color grading.
  • Record in Blackmagic RAW for ultimate control in post-production, ensuring pristine footage always.
  • Use the versatile PL mount for cinema lenses, adapting to various shooting scenarios with ease.
  • Enjoy high-speed frame rates up to 170fps in 8K, capturing smooth slow-motion shots effortlessly.
  • Stream directly via Ethernet or Wi-Fi, ideal for live events and remote broadcasting with SRT/RTMP.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Accessories
Learn
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Blackmagic Design URSA Cine 17K 65 Specifications

Camera Features

Camera Features

Jump to...
  • Effective Sensor Size

    50.81 x 23.32mm (65mm Format)

  • Pixel Pitch

    2.9 microns

  • Lens Mount

    PL mount. Interchangeable with URSA Cine Mount LPL included

  • Lens Control

    Lens data from compatible PL or LPL lenses and control of some PL lenses. Lens control of compatible EF lenses

  • Dynamic Range

    16 Stops

  • Shooting Formats

    17,520 x 8040 (17K 2.2:1 open gate)
    16,128 x 8040 (17K 2:1)
    15,360 x 8040 (17K 17:9)
    14,304 x 8040 (17K 16:9)
    17,520 x 7296 (17K 2.4:1)

    12,288 x 8040 (12K 3:2)
    12,288 x 6912 (12K 16:9)
    12,288 x 6480 (12K 17:9)
    12,288 x 5112 (12K 2.4:1)
    9648 x 8040 (12K 6:5)

  • Shooting Formats (Contd.)

    11,680 x 5360 (8K 2.2:1 open gate)
    10,752 x 5360 (8K 2:1 full height)
    8192 x 5360 (8K 3:2)
    8192 x 4608 (8K 16:9)
    8192 x 4320 (8K 17:9)
    8192 x 3408 (8K 2.4:1)

    5840 x 2680 (4K 2.2:1 open gate)
    5376 x 2680 (4K 2:1 full height)
    4096 x 2680 (4K 3:2)
    4096 x 2304 (4K 16:9)
    4096 x 2160 (4K 17:9)
    4096 x 1704 (4K 2.4:1)

  • Frame Rates

    Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. Maximum sensor frame rate dependent on resolution selected

  • High Speed Frame Rates

    17K 2.2:1 open gate up to 60 fps
    12K 2.4:1 up to 90fps
    8K 2.2:1 open gate up to 100 fps
    8K 2.4:1 up to 170 fps

  • Built in ND Filters

    None

  • Focus

    Focus button turns on peaking, auto focus available using compatible lenses

  • Iris Control

    Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses so no pixel is clipped in film mode. Scene average auto exposure in video mode

  • Screens

    2x Monitoring Screens
    1x Camera Status Screen

  • Monitoring Screen Size

    5" (12.7cm)

  • Monitoring Screen Resolution

    1920px x 1080px

  • Monitoring Screen Brightness

    1500 nits

  • Monitoring Screen Type

    LCD capacitive touchscreen

  • Metadata Support

    Automatically populated lens data from i/Technology with compatible PL, LPL lenses and electronic EF and Hasselblad HC lenses when using optional EF lens mount or HC lens mount. Automatic recording of camera settings and slate data such as project, scene number, take and special notes

  • Controls

    Touchscreen menus on 5 inch screen. Push buttons for other controls. 7 assignable shortcut keys plus 6 assignable viewfinder shortcut keys on optional URSA Cine EVF

  • Timecode Clock

    Highly accurate timecode clock. Less than 1 frame drift every 8 hours

Connections

Jump to...
  • Total Video Outputs

    2

  • SDI Rates

    1.5G, 3G, 6G, 12G

  • Analog Audio Inputs

    2x XLR analog switchable between mic, line and AES audio. Phantom power support

  • Analog Audio Outputs

    1x 3.5mm headphone jack

  • Reference Inputs

    Tri-Sync/Black Burst and Timecode

  • Viewfinder

    1x Viewfinder USB-C with video, power, camera control data and locking connector. Works with URSA Cine EVF and PYXIS Monitor

  • USB-C Monitor Outputs

    2x USB-C side monitor ports support URSA Cine EVF, PYXIS Monitor or DisplayPort monitors

  • Accessories

    1x 7-pin Lemo 'EXT' for power out, serial communication, and run/stop.
    1x 3-pin Fischer 'RS' for power out and run/stop

  • Computer Interface

    2x USB-C side expansion ports for camera accessories.
    Software updates using side USB-C closer to rear

  • Ethernet

    1x 10Gb/s RJ-45 connector supporting 10/100/1000/10G BASE-T for SMB file sharing, Web Media Management, Blackmagic Cloud uploads, camera control and streaming

  • Microphone

    Integrated stereo microphone

  • Built in Speaker

    1x mono speaker

Standards

Jump to...
  • SD Video Standards

    None

  • HD Video Standards

    1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60

  • Ultra HD Video Standards

    2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60

  • SDI Compliance

    SMPTE 292M, SMPTE 424 Level B, SMPTE 2081-1, SMPTE 2082-1

  • SDI Audio Sampling

    48 kHz and 24 bit

  • Media

    1x Blackmagic Media Module

  • Media Format

    Blackmagic

Supported Codecs

Jump to...
  • Codecs

    Blackmagic RAW Constant Bitrate 3:1,
    Blackmagic RAW Constant Bitrate 5:1,
    Blackmagic RAW Constant Bitrate 8:1,
    Blackmagic RAW Constant Bitrate 12:1,
    Blackmagic RAW Constant Bitrate 18:1,
    Blackmagic RAW Constant Quality Q0,
    Blackmagic RAW Constant Quality Q1,
    Blackmagic RAW Constant Quality Q3,
    Blackmagic RAW Constant Quality Q5.
    H.264 Proxy in 1920 x 1080, 8-bit 4:2:0

Control

Jump to...
  • External Control

    Blackmagic URSA Cine EVF can trigger record plus camera functions assigned to the VF1, VF2, VF3, Zoom, Exp and Record buttons. External Camera Control supported using REST API over Ethernet, Wi-Fi or serial communication via the 7-pin Lemo connector. Run / Stop supported via 3-pin Fischer and 7-pin Lemo connector. Blackmagic iPad control and Bluetooth control supported

  • External Control (Contd.)

    Blackmagic Zoom Demand and Blackmagic Focus Demand for controlling camera and compatible lenses

Streaming

Jump to...
  • Direct Streaming

    Supports Secure Reliable Transport (SRT) and Real Time Messaging Protocol (RTMP) local live streaming using a Ethernet or Wi-Fi, or global live streaming using an internet connection via Ethernet, Wi-Fi or USB-C cellular data

Network Management

Jump to...
  • NTP

    Network time protocol support allows you to sync the time on your camera, whenever connected to a network with any NTP server of your choice

  • FTP

    Download files from any drive attached to your camera using FTP

  • Web Media Manager

    Using a browser connected over Ethernet, web media manager allows you to access, browse, download and delete files from any drive connected to the camera

  • SMB

    File sharing using SMB

Storage Features

Jump to...
  • Storage Type

    1x Blackmagic Media Module 8TB

  • Storage Rates

    Storage rates based on 24 frames per second.

    17K - 17,520 x 8,040:
    Blackmagic RAW 3:1 - 1,700 MB/s
    Blackmagic RAW 8:1 - 637 MB/s
    Blackmagic RAW 12:1 - 425 MB/s
    Blackmagic RAW 18:1 - 283 MB/s
    Blackmagic RAW Q0 - 425 to 2,040 MB/s
    Blackmagic RAW Q1 - 255 to 1,020 MB/s
    Blackmagic RAW Q3 - 170 to 425 MB/s
    Blackmagic RAW Q5 - 127 to 319 MB/s

  • Storage Rates (Contd.)

    12K - 12,288 x 8040:
    Blackmagic RAW 3:1 - 1,194 MB/s
    Blackmagic RAW 8:1 - 448 MB/s
    Blackmagic RAW 12:1 - 298 MB/s
    Blackmagic RAW 18:1 - 199 MB/s
    Blackmagic RAW Q0 - 298 to 1,432 MB/s
    Blackmagic RAW Q1 - 179 to 716 MB/s
    Blackmagic RAW Q3 - 119 to 298 MB/s
    Blackmagic RAW Q5 - 90 to 224 MB/s

  • Storage Rates (Contd..)

    8K - 8192 x 5360:
    Blackmagic RAW 3:1 - 533 MB/s
    Blackmagic RAW 5:1 - 320 MB/s
    Blackmagic RAW 8:1 - 200 MB/s
    Blackmagic RAW 12:1 - 133 MB/s
    Blackmagic RAW Q0 - 133 to 319 MB/s
    Blackmagic RAW Q1 - 80 to 200 MB/s
    Blackmagic RAW Q3 - 53 to 133 MB/s
    Blackmagic RAW Q5 - 40 to 100 MB/s

  • Storage Rates (Contd...)

    4K - 4096 x 2680:
    Blackmagic RAW 3:1 - 135 MB/s
    Blackmagic RAW 4:1 - 101 MB/s
    Blackmagic RAW 5:1 - 81 MB/s
    Blackmagic RAW 6:1 - 68 MB/s
    Blackmagic RAW Q0 - 34 to 81 MB/s
    Blackmagic RAW Q1 - 20 to 50 MB/s
    Blackmagic RAW Q3 - 13 to 34 MB/s
    Blackmagic RAW Q5 - 10 to 25 MB/s

  • Recording Formats

    Blackmagic RAW 3:1, 8:1, 12:1, 18:1, Q0, Q1, Q3 and Q5 at full sensor width or height resolutions:
    [17,520 x 8,040], [16,128 x 8,040], [15,360 x 8,040], [14,304 x 8,040] and [17,520 x 7,296]

    Blackmagic RAW 3:1, 8:1, 12:1, 18:1, Q0, Q1, Q3 and Q5 at full sensor width or height resolutions:
    [12,288 x 8,040], [12,288 x 6,912], [12,288 x 6,480], [12,288 x 5,112] and [9,648 x 8,040]

  • Recording Formats (Contd.)

    Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 at full sensor width or height scaled to:
    [8,192 x 5,360], [8,192 x 4,608], [8,192 x 4,320], [8,192 x 3,408] and [6,432 x 5,360]

    Blackmagic RAW 3:1, 4:1, 5:1, 6:1, Q0, Q1, Q3 and Q5 at full sensor width or height scaled to:
    [4,096 x 2,680], [4,096 x 2,304], [4,096 x 2,160], [4,096 x 1,704] and [3,216 x 2,680]

  • Recording Formats (Contd..)

    with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies.
    Constant Quality Rates for 17K and 12K are: Q0 12:1 - 2.5:1, Q1 20:1 - 5:1, Q3 30:1 - 12:1, Q5 40:1 - 16:1
    Constant Quality Rates for 8K and 4K are: Q0 12:1 - 5:1, Q1 20:1 - 8:1, Q3 30:1 - 12:1, Q5 40:1 - 16:1
    Actual storage rates are dependent on image subject matter

Software

Jump to...
  • Software Included

    URSA Cine Blackmagic OS
    DaVinci Resolve Studio for Mac and Windows including activation key
    Blackmagic Camera Setup
    Blackmagic RAW Player
    Blackmagic RAW QuickLook Plugin
    Blackmagic RAW SDK

Operating Systems

Jump to...
  • Operating Systems

    Mac: Mac 14.0 Sonoma, Mac 15.0 Sequoia or later.
    Windows: Windows 10 and 11

Power Requirements

Jump to...
  • Power Supply

    +24V DC external power supply 100 - 240 AC 50/60Hz compatible with IEC C14 socket.
    Molex connector for rear battery plate

  • Power Input

    1x 8 pin Lemo compatible socket for external power or battery use.
    B-Mount battery plate

  • Power Output

    1x 7-pin connector with +24V DC power output when camera is powered by +24V DC batteries or power supply.
    1x 3-pin Fischer with +24V DC power output when camera is powered by +24V DC batteries or power supply.
    B-Mount battery plate including 2-pin connector with +12V regulated output from camera

Environmental

Jump to...
  • Operating Temperature

    32 Degree to 104 Degree F (0 Degree to 40 Degree C)

  • Storage Temperature

    -4 Degree to 113 Degree F (-20 Degree to 45 Degree C)

  • Relative Humidity

    0% to 90% non-condensing

Battery

Jump to...
  • Battery Info

    Optional, not included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

Physical

Jump to...
  • Dimensions

    11.36 x 8.44 x 11" (28.8 x 21.4 x 27.9cm)

  • Weight

    8.72 lbs (3.95kg) (Body Only)

  • UPC Code

    9338716009859

Related Articles & Videos

The IBC Experience: Navigating the Trade Show in 2024
Blackmagic Design URSA Cine 17K 65 Camera

Blackmagic Design URSA Cine 17K 65 Camera

The attendees at IBC 2024 got a huge treat when Blackmagic Design presented the URSA Cine 17K 65 Cinema Camera. Building on the URSA Mini Pro 12k, the URSA Cine brings powerful new features and real-time editing.
Read more

66 Accessories for Blackmagic Design URSA Cine 17K 65 Digital Cinema Camera Body

  • All Accessories (66)
  • Digital Cinema Lenses (32)
  • Memory & Data Storage (1)
  • Monitor & Recorder (3)
  • Batteries & Power Supply (2)
  • Media Read/Write Devices (1)
  • Viewfinders (1)
  • Lens Adapters & Converters (2)
  • Grips & Handles (1)
  • Baseplates (2)
  • Tripods & Monopods (1)
  • Microphones & Audio (4)
  • Cables & Adapters (6)
  • XLR Cables (3)
  • Converters (1)
  • Flash & Lighting (6)

About Blackmagic Design URSA Cine 17K 65

Blackmagic URSA Cine 17K 65 is a revolution in digital film with an extremely large format 17520 x 8040 65mm RGBW sensor with larger photo-sites for 16 stops of dynamic range. This revolutionary model also includes interchangeable lens mounts, a dedicated assist station with a second 5″ HDR LCD touchscreen and industry standard Lemo and Fischer connections.

17K Full Sensor with 2.20:1 native aspect ratio

At the heart of the URSA Cine 17K 65 lies a full-frame sensor that captures at a native 2.20:1 aspect ratio, giving your visuals an undeniably cinematic edge.

Blackmagic Design URSA Cine 17K 65 Digital Cinema Camera Body has a full-frame sensor

PL, LPL, EF, and Hasselblad compatibility

With the URSA Cine 17K, you can hot-swap between PL, LPL, EF, and Hasselblad lens mounts — quickly and painlessly. That means your glass of choice, from vintage vibes to sharp modernity, will feel right at home.

Magnesium and carbon fiber composite body

Rugged enough to take a tumble, light enough to chase the light — URSA Cine 17K rocks a magnesium alloy chassis wrapped in a carbon fiber polycarbonate composite.

Blackmagic URSA Cine 17K 65 Camera is optimized to deliver incredibly rich colors at all resolutions

5" HDR touchscreen and status LCD

You’ve got a fold-out 5-inch HDR touchscreen that’s as vivid as it is responsive. Flip it over, and there's a crisp external status LCD for quick-glance monitoring.

Blackmagic Design URSA Cine 17K 65 Digital Cinema Camera Body has a fold-out 5-inch HDR touchscreen

XLR, mic input and time code I/O

The URSA Cine 17K has a built-in microphone, professional XLR mic input, standard mic input, and Time Code I/O. Whether you're recording scratch audio or syncing multi-camera setups, it’s plug-and-play all the way.

Built-in storage

The URSA Cine 17K comes with built-in storage designed for high-bandwidth performance, letting you record at full resolution without worrying about dropped frames or external drives slowing you down.

Blackmagic URSA Cine 17K 65 Camera comes with a massive removable high performance media storage

Blackmagic Design URSA Cine 17K 65 Camera Features

  • Full sensor area gives you a stunning 2.20:1 image with supported aspect ratios of 1.3, 1.5, 1.6, 1.66 1.8 and 2x de-squeeze factors.
  • Quickly switch between PL, LPL, EF and Hasselblad mounts.
  • Fold out monitor has a large 5" HDR touchscreen on one side and an external color status LCD on the other.
  • Built with a robust magnesium alloy chassis and lightweight carbon fiber polycarbonate composite skin to help you move quickly on set.

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Capture stunning visuals with the URSA Cine's 17K 65mm format sensor for unparalleled image quality.
  • Achieve cinematic excellence with 16 stops dynamic range, perfect for HDR and vibrant color grading.
  • Record in Blackmagic RAW for ultimate control in post-production, ensuring pristine footage always.
  • Use the versatile PL mount for cinema lenses, adapting to various shooting scenarios with ease.
  • Enjoy high-speed frame rates up to 170fps in 8K, capturing smooth slow-motion shots effortlessly.
  • Stream directly via Ethernet or Wi-Fi, ideal for live events and remote broadcasting with SRT/RTMP.

What's in the box:

  • Blackmagic Design URSA Cine 17K 65 Digital Cinema Camera
  • PL Mount (Preinstalled)
  • Media Module (8TB)
  • Wi-Fi Antenna Set
  • PL Body Cap
  • DaVinci Resolve Studio License (Download)
  • Blackmagic 1 Year Warranty
