What is the resolution capability of the Blackmagic URSA Cine 17K 65 Cinema Camera?

The Blackmagic URSA Cine 17K 65 Cinema Camera features a large format 65mm RGBW sensor with a resolution of 17520 x 8040.

Can I use different types of lenses with the URSA Cine 17K 65?

Yes, the URSA Cine 17K 65 supports interchangeable lens mounts, including PL, LPL, EF, and Hasselblad, allowing for versatile lens options.

How much storage does the URSA Cine 17K 65 offer?

The camera comes with built-in 8TB high-performance storage, enabling extensive recording capabilities.

What connectivity options are available on the URSA Cine 17K 65?

The camera features advanced connectivity options, including 12G-SDI out, 10G Ethernet, USB-C, and XLR audio outputs.

Does the URSA Cine 17K 65 support live streaming?

Yes, the camera has an integrated streaming engine that supports RTMP and SRT for seamless live streaming.

Reviews about this item

Review Summary

Blackmagic Design URSA Cine 17K 65 Specifications

General

General

Jump to...
  • Color

    Black

  • Tripod Mount

    5x 3/8"-16 Female (Bottom)
    4x 1/4"-20 Female (Bottom)

  • Accessory Mounting Thread

    3x 1/4"-20 on Camera Body
    4x 3/8"-16 on Camera Body

  • Operating Conditions

    32 to 104°F / 0 to 40°C at 0 to 90% Humidity

  • Storage Conditions

    -4 to 113°F / -20 to 45°C at 0 to 90% Humidity

  • Dynamic Range

    16 Stops

Imaging

Jump to...
  • Lens Mount

    Interchangeable Mount

  • Lens Communication

    Yes

  • Image Sensor

    50.8 x 23.3 mm (Large Format) CMOS

  • Sensor Resolution

    Effective: 140.8 Megapixel (17,520 x 8040)

  • Image Stabilization

    No

  • Built-In ND Filter

    No

  • Built-In CC Filter

    No

  • Capture Type

    Video Only

Exposure Control

Jump to...
  • Shutter Type

    Electronic Rolling Shutter

  • Advertised Dynamic Range

    16 Stops

  • Focus Mode

    Automatic, Manual Focus

  • Internal Recording

    Blackmagic RAW
    17520 x 8040 up to 60.00 fps
    16128 x 8040
    15360 x 8040
    14304 x 8040
    12288 x 8040
    9648 x 8040
    17520 x 7296
    12288 x 6912
    12288 x 6480
    11680 x 5360 up to 100 fps
    10752 x 5360
    8192 x 5360
    12288 x 5112 up to 90 fps
    8192 x 4608
    8192 x 4320
    8192 x 3408 up to 170 fps
    5840 x 2680
    4096 x 2680
    4096 x 2304
    4096 x 2160
    4096 x 1704

  • Video Output

    SDI/BNC
    4096 x 2160 at 25/24.00/30.00/29.97/50/59.94/60.00/23.98 fps
    1920 x 1080p at 59.94/60.00/23.98/24.00/25/29.97/30.00/50 fps
    1920 x 1080i at 59.94/60.00/50 fps

  • Fast-/Slow-Motion Support

    No

  • Built-In Microphone

    Stereo

Interface

Jump to...
  • Media/Memory Card Slot

    No

  • Internal Storage

    8 TB

  • Video I/O

    2x BNC (12G-SDI) Output

  • Audio I/O

    2x XLR 3-Pin Mic/Line/AES/EBU Selectable Input (+48 V Phantom Power)
    1x 1/8" / 3.5 mm TRS Stereo Headphone Output

  • Power I/O

    1x LEMO 8-Pin Input

  • Other I/O

    1x BNC (Reference, Timecode)
    1x RJ45 (10 Gigabit Ethernet)
    1x LEMO 7-Pin
    1x Fischer 3-Pin
    1x USB-C Viewfinder Output
    2x USB-C Control/Data/Monitor

  • Wireless

    Bluetooth

  • Mobile App Compatible

    Yes: Android & Ios

  • Global Positioning (GPS, GLONASS, etc.)

    No

Monitor

Jump to...
  • Display Type

    Primary Monitor: Articulating 5" Touchscreen OLED

Battery

Jump to...
  • Battery

    B-Mount

  • Battery Info

    Optional, not included

  • Battery Material

    Lithium-ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

Physical Details

Jump to...
  • Dimensions

    10.15 x 6 x 6" / 25.78 x 15.2 x 15.2 cm

  • Weight

    8.72 lb / 3.96 kg (Body Only)

  • UPC Code

    9338716009484

69 Accessories for Blackmagic Design URSA Cine 17K 65 Cinema Camera

  • All Accessories (69)
  • Lenses (20)
  • Digital Cinema Lenses (9)
  • Memory & Data Storage (1)
  • Batteries & Power Supply (8)
  • Monitor & Recorder (2)
  • Media Read/Write Devices (1)
  • Viewfinders (1)
  • Lens Adapters & Converters (2)
  • Baseplates (2)
  • Tripods & Monopods (2)
  • Grips & Handles (1)
  • Microphones & Audio (4)
  • Cables & Adapters (7)
  • XLR Cables (2)
  • Converters (1)
  • Flash & Lighting (6)

About Blackmagic Design URSA Cine 17K 65

Extremely large format digital film camera with a 17520 x 8040 65mm RGBW sensor, 16 stops dynamic range, built in cloud storage module with 8TB of memory,interchangeable lens mounts and more.

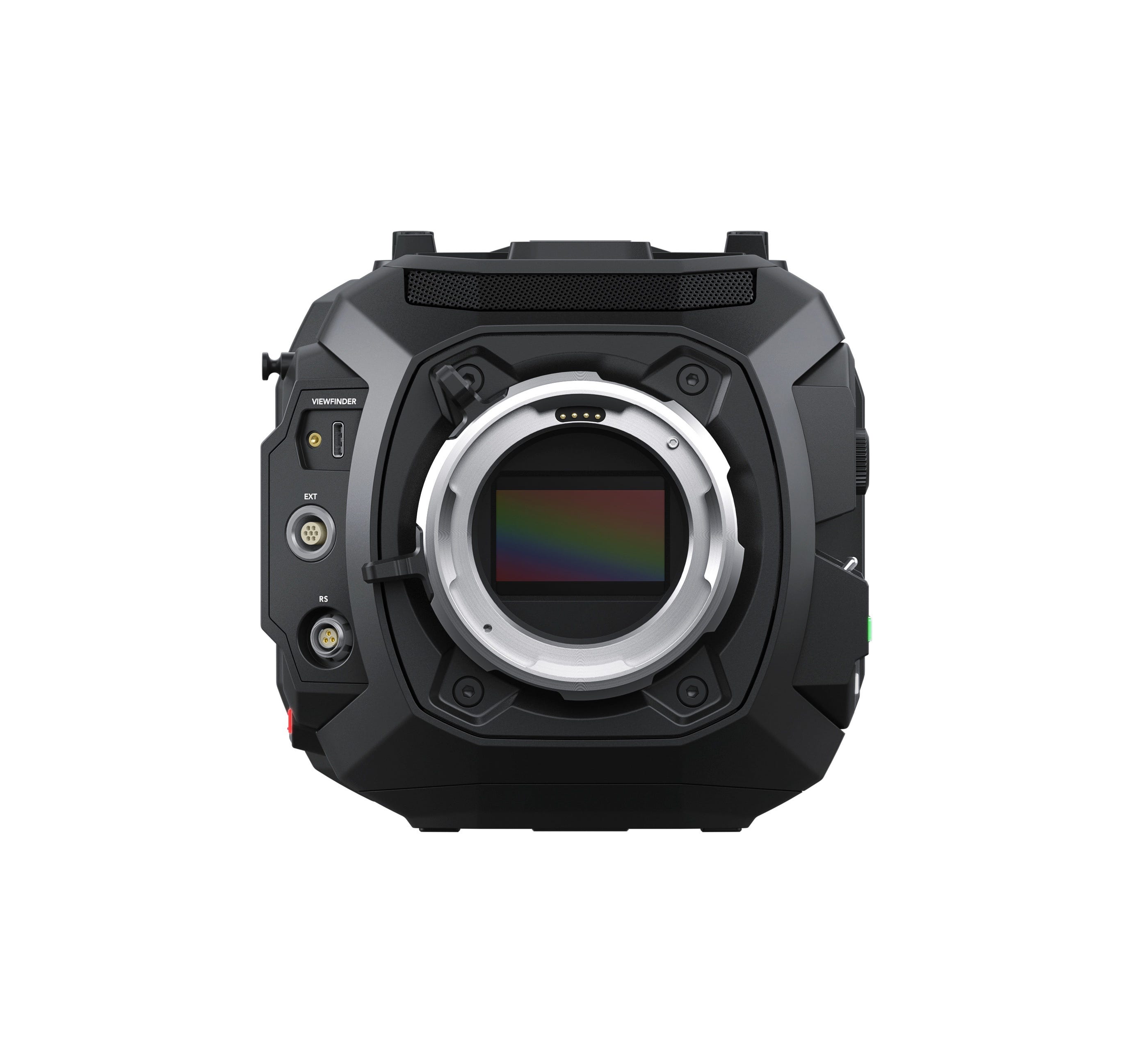

Ultra-large 65mm 17K sensor

The URSA Cine 17K 65 is equipped with an expansive 17520 x 8040 65mm RGBW sensor, providing 2.2:1 aspect ratio.

Industry standard connections

Features standard industry connections, making it compatible with a wide range of equipment and accessories

Advanced Blackmagic RAW tech

With Blackmagic RAW technology, filmmakers can edit massive 17K footage in real time.

True-to-life colors + new film curve

Get vivid colors with Generation 5 Color Science and a new film curve.

Ultra-large 65mm 17K sensor

High-performance optical low-pass filter

The built-in OLPF minimizes moiré and aliasing.

8TB Blackmagic Media Module

Blackmagic Media Module features a generous 8TB of high-performance storage.

Blackmagic Media Dock compatibility

Provides flexible storage solutions to suit any production requirement.

Connectivity options

Stay connected with high-speed Wi-Fi, 10G Ethernet, and mobile data options.

High-performance optical low-pass filter

Built-in live streaming

Stream live with confidence using built-in RTMP and SRT protocols.

Interchangeable lens mounts

Adapt the URSA Cine 17K 65 to various lenses with its interchangeable mount system.

Optional URSA Cine EVF

The Blackmagic URSA Cine EVF provides an immersive viewfinder experience for cinematic shooting.

Includes DaVinci Resolve Studio

Each URSA Cine 17K 65 comes with DaVinci Resolve Studio.

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Capture stunning visuals with the URSA Cine's 17K 65mm RGBW sensor for unmatched image quality.
  • Achieve cinematic excellence using the preinstalled PL lens mount, ready for professional lenses.
  • Enjoy seamless workflow with the built-in 8TB media module, ensuring ample recording times.
  • Experience superior dynamic range with 16 stops, capturing every detail in challenging light.
  • Utilize 10G Ethernet for rapid file transfers and cloud storage, streamlining post-production.
  • Create high-resolution masterpieces with the 17K resolution, perfect for large format displays.

What's in the box:

  • Blackmagic Design URSA Cine 17K 65 Cinema Camera
  • PL Mount (Preinstalled)
  • Media Module 8TB (Preinstalled)
  • Top Handle
  • Antennas
  • Baseplate
  • 24V Power Supply
  • B Mount Battery Plate
  • DaVinci Resolve Studio with Activation Key
  • Rugged Pelican Case with Custom Foam
  • Blackmagic Design 1 Year Limited Warranty
