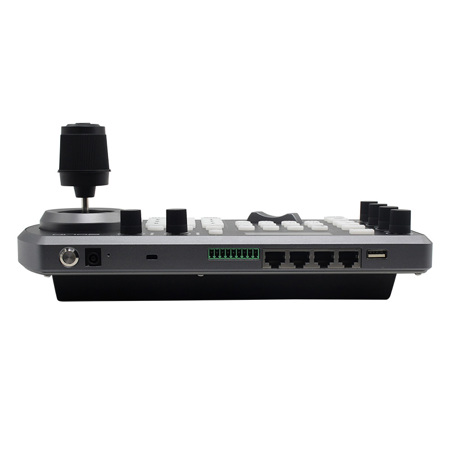

Bolin Technology KBD-1010-RNV PTZ Camera Remote Controller

Bring your live event production and content creation to the next level with the KBD-1010-RNV PTZ Camera Remote Controller. This versatile tool is perfect for a range of applications, including education, broadcasting, video conferencing, and houses of worship.

The compact design of this PTZ camera controller features an ergonomic, high-quality joystick for effortless one-handed operation. It allows for seamless pan, tilt, and zoom adjustments, with the option to control zoom via the joystick or a supplementary seesaw lever.

The KBD-1010-RNV PTZ Camera Remote Controller is equipped with dedicated knobs and control buttons, providing direct access to frequently-used camera functions without the need to navigate through camera menus. Quick Access features include control of Exposure, Shutter Speed, Iris, Compensation, White Balance, Focus, PT Speed, and Zoom Speed.

This advanced PTZ camera controller supports IP control, allowing for automatic search of available IP cameras in the network and easy assignment of IP addresses. It is compatible with Onvif, CGI*, and Visca Over IP. The controller supports 2 groups of cameras (2x7) via Visca RS422 daisy chain control. An unlimited number of controllers (IP control) can operate in a single network to control up to a total of 255 cameras.

The KBD-1010-RNV PTZ Camera Remote Controller offers up to 256 camera presets with memory of image parameters and 8 patterns/cruises to recall camera moves (camera support required). It also features up to 6 selectable ASSIGN function keys, with the ability to assign additional functions to ASSIGN buttons.

Camera exposure adjustment options include Full Auto, Iris Priority, Shutter Priority, Manual Iris Gain, Manual Shutter Gain, and Black Level. The controller is compatible with the Black Magic SDI video router, allowing for camera switching on the router with PTZ camera control.

This PTZ camera controller also provides a configuration file export/import via IP interface capability, enabling the duplication of keyboard settings across multiple keyboards. Firmware upgrades via USB/IP ensure the controller's performance remains up to date.

The KBD-1010-RNV PTZ Camera Remote Controller includes a Tally Indicator with Normal Tally/On-Air Tally/Contact Modes. It supports both 12VDC and POE power input, with power over control using the included Junction Box. Its wide range power voltage tolerance of 5V - 48V makes it suitable for longer distance power runs and vehicle use.
