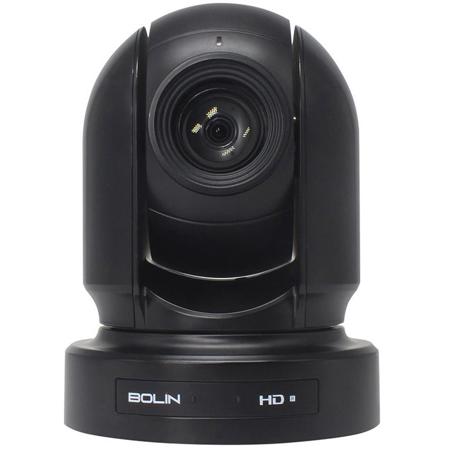

Bolin Technology VCC-7HD30S-3SMN Full HD True Dual Output IP & HD SDI 30x PTZ Camera
SKU: BNVCC30S3SMN
This item is no longer available.
Share:
Overview
Compare
Specs
Protection
About Bolin Technology VCC-7HD30S
Design
• High quality broadcast standard SDI video and extremely quiet and smooth Pan/Tilt movements ideal for broadcast, video conferencing, filming studios, churches and lecture halls, and for applications requiring high zoom ratios and variable slow speed controls
• Dual Output PTZ camera provides simultaneous 3G-SDI and IP video outputs with no latency and remote IP video streaming.
• It is a TRUE Dual Output PTZ where SDI and IP formats can be set independently. You can combine SDI 1080i(up to1080i59.94) or 1080P with IP 1080P(up to 1080p60).
• The camera provides multiple methods of controlling: RS232, RS422 and IP control ONVIF, Visca over IP and CGI. It gives you capabilities of local control and remote control without distance limitations.
Functionality
• Ideal for video-conferencing, house of worship, broadcast, educational environment, corporate training, distance learning applications.
• Comprehensive image parameter setting for broadcast and Pro AV applications.
• Adaptive speed for slow movement when running zoom-in application. Speeds of Pan/Tilt and Presets (0-5 level) are adjustable.
• IP protocol RTSP,RTMP for online video streaming.
• Local storage Micro SD card up to 128GB supported.
• Control: RS232/RS422/RS485, IP/Onvif/Visca-Over-IP, IR Remote Controller.
• Image parameter setting restore with presets and quick access operation
• Independent PoE+(IEEE 802.3at) power ready and 12VDC
• Firmware upgrade via USB2.0 or IP
• Standard mounting and ceiling mounting with E-Flip function
Bolin Technology VCC-7HD30S Features
- Zoom: Optical 30x, Digital 12x
- Video Output: 3G-SDI+HDMI+IP/NDI+CVBS Simultaneous. It is a TRUE Dual Output PTZ, which SDI and IP video formats can be set independently. It outputs IP/NDI 1080p60/30 when SDI is set to 1080i59.94/29.97.
- SDI/HDMI video resolution supports up to 1080p60, 1080i59.94; IP/NDI video resolution up to 1080P60
- Control supports RS232, RS422/485, IP Onvif/Visca-over-IP, IR remote control
- Image stabilizer(30x) and true WDR 130dB
- Comprehensive image parameter setting for broadcast and Pro AV applications
- RJ45 Ports for RS232 and RS422 control connection when using network cable for control cable
- Image parameter setting restore with presets and quick access operation
- Extreme quiet and smooth speed adjustable PTZ movements, 6 speed of preset adjustable
- IP protocol RTSP,RTMP for online video streaming
- Local storage Micro SD card up to 128GB supported
- USB Firmware upgrade interface provides capability of constantly improving the camera features and performances, even for customized function upgrades
- Camera Power: 12VDC, PoE+ (IEEE 802.3at)
Warranty Information
This product has a limited warranty of 24 months.
