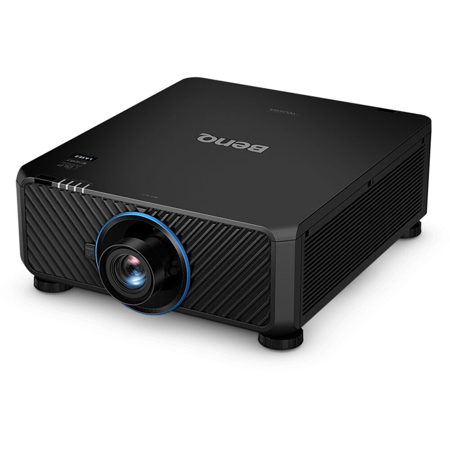

BenQ LU9750 WUXGA Large-Venue Laser DLP Projector without Lens

SKU: BQLU9750 MFR: LU9750
Earn VIP Reward Points

Key Features

  • Experience stunning visuals with 8500 ANSI lumens, perfect for large venues.
  • Enjoy long-lasting performance with a laser light source life of up to 70000 hours.
  • Achieve exceptional clarity with WUXGA resolution for detailed presentations.
  • Customize your setup with optional lenses for flexible throw ratio adjustments.
  • Seamless integration with multiple HDMI and HDBaseT ports for diverse connectivity.
  • Ensure precise image alignment with keystone correction and lens shift features.
See More Product Details
Special Order Item?Estimated to Ship: 09/02/2025
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

BenQ LU9750 Specifications

Display

Display

Jump to...
  • Projection System

    DLP

  • Brightness (ANSI lumens)

    8500

  • Native Resolution

    WUXGA (1920x1200)

  • Native Aspect Ratio

    16:10

  • Contrast Ratio (FOFO)

    3,000,000:1

  • Display Color

    30-bit (1.07 billion colors)

  • Light Source

    Laser

  • Light Source Life

    A. Normal 20000 hrs, B. ECO 38000 hrs, D. Dimming 70000 hrs

Optical

Jump to...
  • Throw Ratio

    (Optional Lens) Ultra Short Throw: 0.38 LS1ST3A Short throw 0.77-1.1 LS1ST2A Wide Zoom 2: 1.1-1.3 LS1ST1A Wide Zoom 1: 1.25-1.6 LS1SDA Standard: 1.54-1.93 LS1LT0 Semi long: 1.93-2.9 LS1LT1 Semi long 1: 2.22-3.67 LS1LT2 Long zoom 1: 3.58-5.38 LS1LT3 Long Zoom2: 5.31-8.26

  • Zoom Ratio

    (Optional Lens) Long Zoom 1: 1.5x, (Optional Lens) Long Zoom 1: 1.67x, (Optional Lens) Semi Long: 1.5x, (Optional Lens) Semi Long: 1.65x, (Optional Lens) Semi Throw: 1.28x, (Optional Lens) Standard: 1.25x, (Optional Lens) Ultra Short Throw: Fixed, (Optional Lens) Ultra Wide: 1.25x, (Optional Lens) Wide Zoom: 1.18x

  • Lens

    LS1ST4 Ultra Short Throw (5J.JCY37.001) LS1ST3A Short throw (5J.JPN37.001) LS1ST2A Wide Zoom 2 (5J.JPN37.002) LS1ST1A Wide Zoom 1 (5J.JPN37.003) LS1SDA Standard (5J.JPN37.004) LS1LT0 Semi long (5J.JPN37.005) LS1LT1 Semi long 1 (5J.JAM37.051) LS1LT2 Long zoom 1 (5J.JAM37.031) LS1LT3 Long Zoom2 (5J.JAM37.041)

  • Projection Offset

    0

  • Keystone Adjustment

    2D, Vertical +/- 30 degrees; Horizontal +/- 30 degrees

  • Lens Shift Vertical

    (Optional Lens) Ultra Short Throw: V: (-3% - +7%) H: (-5%- 5%) LS1ST3A Short throw: '-15 - +55% Vertical; -5% - +5% Horizontal LS1ST2A Wide Zoom 2 '-15 - +55% Vertical; -5% - +5% Horizontal LS1ST1A Wide Zoom 1: '-15 - +55% Vertical; -5% - +5% Horizontal LS1SDA Standard '-15 - +55% Vertical; -5% - +5% Horizontal

  • Lens Shift Vertical (Contd.)

    LS1LT0 Semi long (5J.JPN37.005) '-15 - +55% Vertical; -5% - +5% Horizontal LS1LT1 Semi long 1 0 - +50% Vertical; -10% - +10% Horizontal LS1LT2 Long zoom 1: 0 - +50% Vertical; -10% - +10% Horizontal LS1LT3 Long Zoom2: 0 - +50% Vertical; -10% - +10% Horizontal


Jump to...
  • Rec. 709 Coverage

    0.95

  • Picture Modes

    3D, Bright, DICOM SIM, HDR10, HLG, Infographic, Presentation, sRGB, User 1, User 2, Video

Compatibility

Jump to...
  • Input Lag

    33.4 ms (1080P 60Hz)

  • Resolution Support

    VGA (640 x 480) to WUXGA_RB (1920 x 1200)

  • Horizontal Frequency

    15K-135KHz

  • Vertical Scan Rate

    23-120Hz

I/O Interface

Jump to...
  • PC in (D-sub 15pin)

    1x

  • Monitor out (D-sub 15pin)

    1x

  • HDMI in

    2x

  • LAN (RJ45)

    1x

  • HDBaseT (RJ45)

    1x

  • 3D Sync in

    1x

  • 3D Sync out

    1x

  • USB Type A

    1x

  • USB Type B

    USB Type B-1 (service)

  • RS232 in (DB-9pin)

    1x

  • RS232 out (DB-9pin)

    1x

  • Wired Remote in

    1x (3.5mm Mini Jack)

  • Wired Remote out

    1x (3.5mm Mini Jack)

  • DC 12V Trigger

    1x (3.5mm Jack)

  • Speaker

    No Speaker

  • Audio in (3.5mm Mini Jack)

    1x

Environment

Jump to...
  • Operating Temperature

    32 - 104 Degree F (0 - 40 Degree C)

  • Power Supply

    AC 100 to 240 V, 50/60 Hz

  • Typical Power Consumption

    792W

  • Stand-by Power Consumption

    <0.5W

  • Network Stand-by Power Consumption

    <6W

  • Acoustic Noise (Typ./Eco.)

    38/35

Physical

Jump to...
  • Dimensions (W x H x D)

    19.6 x 8.3 x 23.1" (500 x 211 x 587.3mm)

  • Weight

    58.2 lbs (26.4kg)

  • UPC Code

    840046046392

About BenQ LU9750

The LU9750 WUXGA Large-Venue Laser DLP Projector without Lens is a cutting-edge product from BenQ, the world's leading DLP brand. This projector is designed with proprietary DLP high brightness laser technology, making it ideal for large venue applications. It promises high brightness, superior image quality, and installation flexibility, all powered by a maintenance-free laser light source.

This BenQ Laser Projector is designed to enable immersive public displays and innovative visual communication like never before. The zero-deviation alignment of laser diodes enhances luminous flux into the light tunnel, improving light efficacy for superior brightness.

The projector's dual synchronized color wheels use an additive yellow segment, stimulating precise RGBY spectra for optimal chromatic performance. The DLP chip, comprising over two million micromirrors, reflects pure light through the color wheel and is hermetically sealed to resist heat for over 200,000 hours without degradation.

The LU9750 projector produces 95% Rec.709 color coverage for optimal color performance, thanks to its dual color wheels. These wheels significantly achieve laser-precise RGBY color by eliminating the conventional color wheel's white segment. The result is brilliant color and a wider color gamut than conventional lamp-based projectors.

The projector also features ultra-high contrast with automatic power control, directly controlling light output for faster response and strikingly clear images at a super-high contrast ratio of 3,000,000:1. It also adjusts brightness automatically to retain clarity and subtle details in dark scenes and balance in bright scenes.

With an impressive WUXGA (1920 x 1200) native resolution that far exceeds Full HD 1080p, the LU9750 laser projector offers greater detail and stunning clarity image when high-resolution images are projected. The projector's custom light mode modulates light power output from 40% to 100% under a scale of 80 steps, optimizing the projected image in a variety of ambient lighting situations.

The LU9750 laser projector is designed for enduring reliability, delivering 20,000 hours of superior image quality and performance. The laser light source resists color decay over time, making it ideal for multiple blending projections without concern for adjacent projectors generating different levels of brightness after a period of operation.

The projector supports continuous 24/7 operation, making it suitable for public display applications in museums and exhibitions. Users can choose from three different light source modes to optimize energy consumption and delivers up to 70,000 hours under Dimming Mode.

BenQ laser projectors are based on the absolute reliability of 1chip DLP design. The highly durable DLP chip is rated to last over 100,000 hours without degradation, ensuring true-to-life colors and pristinely legible text for countless uses.

The LU9750 projector is designed with superior dustproofing for severe conditions, with IP5X certification. It features sealed laser modules and enclosed light engines to protect the DMD chip, color wheel sensor, laser bank, and other optical components. This lock-and-key design hermetically seals the engine from dust and high thermal conductivity metallic fluid controls engine operating temperature to prolong projector lifespan.

The projector offers excellent installation flexibility, compatible with multiple electrical optional lenses to maximize throw ratio coverage. These all-glass optics, made in Japan, eliminate chromatic aberration and color flare for utmost image quality.

The LU9750 projector is equipped with groundbreaking HDBaseT connectivity, HDMI 2.0 ports, and 3D Sync In /3D Sync out, ensuring seamless transmissions and supreme image quality. It is also compatible with leading projector control systems including Extron, Crestron, AMX, and PJ-Link for network control via LAN, making it simple to integrate into corporate network infrastructures.

In conclusion, the LU9750 WUXGA Large-Venue Laser DLP Projector without Lens from BenQ is a high-performance, reliable, and versatile solution for all your large venue projection needs.

BenQ LU9750 Features

  • Compatible with 9 electrical optional lenses to maximize throw ratio coverage
  • Support BenQ factory white balance calibration
  • Up to 70,000 hrs laser light source life under Dimming Mode
  • 3000000:1 high contrast ratio

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience stunning visuals with 8500 ANSI lumens, perfect for large venues.
  • Enjoy long-lasting performance with a laser light source life of up to 70000 hours.
  • Achieve exceptional clarity with WUXGA resolution for detailed presentations.
  • Customize your setup with optional lenses for flexible throw ratio adjustments.
  • Seamless integration with multiple HDMI and HDBaseT ports for diverse connectivity.
  • Ensure precise image alignment with keystone correction and lens shift features.

What's in the box:

  • BenQ LU9750 WUXGA Large-Venue Laser DLP Projector
  • Remote Control with Battery (RCA025)
  • Power Cord (1.8m)
  • Lens Cover
  • User Manual CD
  • BenQ 3 Year Limited Warranty
