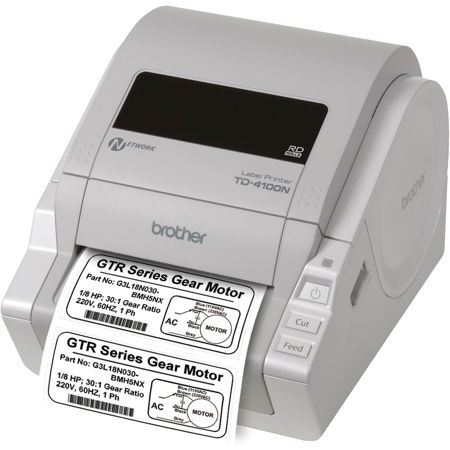

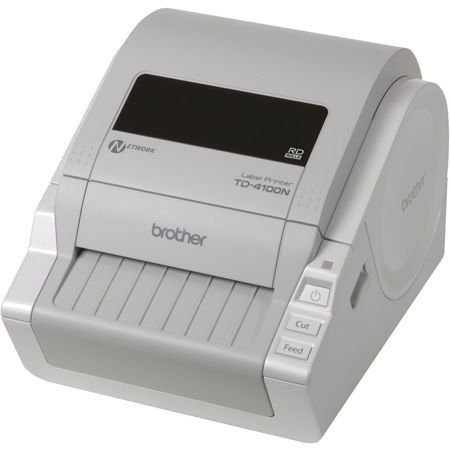

Brother TD-4100N Desktop Network Barcode and Label Printer
See all Brother items

Brother TD-4100N Desktop Network Barcode and Label Printer, 109mm/sec Printing Speed, 300x300dpi Print Resolution, 1" Print Length

SKU: BRTD4100N

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Brother TD4100N Specifications

  • Maximum Media Width

    4.13" (105 mm)

  • Maximum Printing Speed

    4.29 ips (109 mm/sec)

  • Maximum Print Resolution

    300 x 300 dpi (12 x 12 dots/mm)

  • Printing Method

    Direct Thermal

  • Operation Modes

    PC Connected (Dumb Printer, Template), Connected to Host Peripheral (Serial Interface)

  • Cutter

    Automatic (Built-In)

  • Cutter Life

    Up to 300,000 cuts (liner only), Up to 150,000 cuts (label and liner)

  • Maximum Print Width

    3.88" (98.6 mm)

  • Minimum Print Length

    1" (25.4 mm)

  • Media Sensor & Position

    Fixed Transmissive, Edge

  • Media Types

    Drop-In Roll or Fanfold (rear slot) Continuous Label or Paper, Die Cut Labels, Tag Stock

  • Maximum Roll Size (outside diameter)

    4" (101.6 mm)

  • Media Width

    0.7" - 4.0" (19 mm - 101.6 mm)

  • Media Thickness - With Adhesive

    0.003" - 0.007" (0.076mm-0.178mm)

  • Media Thickness - Without Adhesive

    0.003" - 0.006" (0.076mm-0.153mm)

  • Control Panel

    On/Off, Feed, Cut

  • Status Indicator

    LED (3 Colors)

  • Printer Emulation

    Raster, ESC P, Template

  • Internal Fonts

    ESC P: Helsinki, Letter Gothic Template (Bitmap & Outline): Helsinki, Brussels, Letter Gothic

  • Internal Font Sizes

    ESC P: 21, 28, 44, 56, 88, 120 dots Template (Bitmap): 21, 28 dots Template (Outline): 35 - 380 dots (20 sizes)

  • Internal Font Styles

    ESC P: Bold, Italic, Underline Template: Bold, Italic, Vertical, Outline, Shadow, Outline/Shadow

  • Memory

    2 MB

  • Memory for Transferred Data (number)

    Up to 99 Template Files

  • Symbols for Windows

    1379 ( No. of Clip arts in P-touch Editor)

  • Multiple Copies

    Up to 9999 Copies (PT-Editor)

  • Mirror Printing

    Yes

  • Vertical Printing

    Yes

  • Rotate Printing

    Yes

  • Date/Time Stamp

    Through PC

  • Bar-codes Types

    Linear: Code39, ITF (I-2/5), UPC-A, UPC-E, EAN8, EAN13, Codabar (NW-7), Code128, UCC/EAN128, Postnet, Laser Bar Code, ISBN-2, ISBN-5, GS1 DataBar (RSS) 2-Dimensional: PDF417, QR Code, Micro QR Code, Data Matrix, Maxicode

  • Microsoft Add-ins

    Office 2000/2003/2007

  • Database File Compatibility

    .csv, .txt, .mdb, .xls and Microsoft SQL Server

  • Software

    BRAdmin Light 1.14, P-touch PT-Editor 5.0, Transfer Manager 2.1, Transfer Express, Library 2.1

  • Networking

    10/100 Print Server Built-in

  • Interface

    USB (1.1 or 2.0), Serial (RS-232C), Ethernet (10/100 Base - TX)

  • Compatibility

    PC

  • Operating System

    Windows 2000 Professional/XP/7, Windows Vista, Windows Server 2003/2008

  • Power Supply

    120VAC 60 Hz 1.8A

  • Power Switch

    Mechanical

  • Energy Star

    Yes

  • Dimensions

    Housing: 6.8 x 9.0 x 6.2" / 17.27 x 22.86 x 22.86cm

  • Weight

    4.0 lbs (1.85 kg) Without RD Roll

  • UPC Code

    012502623564

About Brother TD4100N

The Brother TD-4000 is a complete barcode software and network label printing solution. A true GDI desktop network printer, the TD-4100N is fully compatible with Windows OS computers - including Windows 7. This network barcode printer and label printer will print on most medium/high sensitivity direct thermal media in high quality 300 dots/inch print resolution and comes ready with everything you need to start printing including the USB cable and PT-Editor 5, powerful but easy-to-use design software application.

Use PT-Editor 5 to add barcodes, lines, curves, text and graphics and print by typing in your data or link to a Microsoft Excel or Access database file or SQL server and select one or multiple records. Or, use your own Windows-based software application as the TD-4100N comes with a WHQL certified Windows-based printer driver and is compatible with many third party Windows-based software applications.

Compared to competitive network barcode and label printer models that require printing using their resident fonts and bar codes, the TD-4100N is host-based and can print text, barcodes and graphics from software, up to 4.3 inches/second. The built-in automatic cutter reliably trims receipts and continuous labels to your desirable length or configures it to cut after printing die cut labels - either one at a time or after printing a strip of multiple labels.

Brother TD4100N Features

  • Complete barcode software and network label printing solution
  • Uses Genuine Brother or most medium/high sensitivity direct thermal label, receipt and tag media up to 4" wide
  • Fully compatible with Windows OS computers, including Windows 7
  • Prints high quality 300 dpi text, graphics and barcodes
  • Fast, host based printing - up to 4.3 ips
  • Download templates and print from a barcode scanner, keyboard or other standalone device
  • Reliable built-in automatic cutter
  • Clam shell cover and no spindle, drop in roll design
  • 10/100 Base TX Ethernet, USB 2.0 and RS-232C serial interface connectivity

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Complete barcode software and network label printing solution
  • Fully compatible with Windows OS computers, including Windows 7?
  • Prints high quality 300 dpi text, graphics and barcodes
  • Fast, host based printing - up to 4.3 ips
  • Reliable built-in automatic cutter
  • Clam shell cover and no spindle, drop in roll design

What's in the box:

  • Brother TD-4100N Desktop Network Barcode and Label Printer
  • Power Cord
  • USB Cable
  • CD
  • RD Starter Roll-Continuous Length Label (7 m or 22.97')
  • RD Starter Roll-2x1" Labels (250 labels)
  • User Guide
  • Software Bundle
  • Brother 1 Year Limited Warranty
