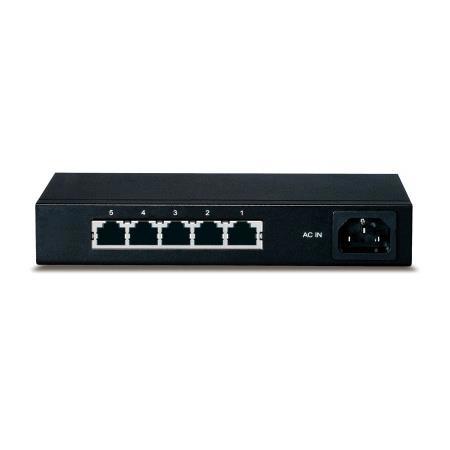

Buffalo Technology 5-Port Desktop Gigabit Green Ethernet Switch

SKU: BUBSGU2005

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

2018-01-04T17:22:43

Rated 5 out of 5

Very Solid Gigabit Switch

This switch does great on our Home Network. Originally was considering a Net-gear but this one does just as good.Nice Led Lights and Fast Lan Transfer Speeds.

FRANZ S.

Buffalo Technology Ethernet Switch Specifications

  • Number of Ports

    5

  • Standards Compliance

    IEEE802.3 (10BASE-T)
    IEEE802.3u (100BASE-TX)
    IEEE802.3ab (1000BASE-T), AUTO-MDIX

  • Flow Control

    IEEE802.3x

  • Connector

    RJ-45 8-pin connector (shielded)

  • Data Transfer Rates

    10/100/1000 Mbps

  • Switching Capacity

    10 Gbps

  • Buffer Memory

    256 KB

  • Transmission Speeds

    1000 Mbps (1000 BASE-T)
    100 Mbps (100 BASE-TX)
    10 Mbps (10 BASE-T)

  • Switching Method

    Store & Forward

  • Jumbo Frame

    9,216 Bytes (Header 14 Bytes + FCS 4 Bytes inclusive)

  • Transfer Encryption Method

    8B1Q4/4D-PAM5 (1000 BASE-T)
    4B5B/MLT-3 (100 BASE-TX)
    Manchester encoding (10 BASE-T)

  • Access Method

    CSMA/CD

  • Data Transfer Speed

    1,488,095 packets/second (1000 BASE-T)
    148,810 packets/second (100 BASE-TX)
    14,881 packets/second (10 BASE-T)

  • MAC Address Table

    8,190 (Self Learning)

  • Aging Time

    Default 300 seconds

  • Power Supply

    Internal AC 100-240V, 50/60 Hz

  • Power Consumption

    Max 2.9W

  • Operating Environment

    32 to 122 deg. F / 0 to 50 deg. C, 10 - 85% humidity (non-condensing)

  • Acquired Standards

    VCCI Class A, UL60950-1, FCC Class A, Canada IC Class A, VCCI Class A, FCC Class A, Canada IC Class A

  • Compatible Cables

    10BASE-T: RJ-45 two-pair Cat3 UTP or higher
    100BASE-TX: RJ-45 two-pair Cat5 UTP or higher
    1000BASE-T: RJ-45 two-pair Cat5e UTP or higher

  • Dimensions

    7.09 x 4.02 x 1.18" / 180.09 x 102.11 x 29.97mm

  • Weight

    1.1lbs / 0.50kg

  • UPC Code

    747464130200

About Buffalo Technology Ethernet Switch

FEATURED REVIEWS

Very Solid Gigabit Switch

By FRANZ S.

This switch does great on our Home Network. Originally was considering a Net-gear but this one does just as good.Nice Led Lights and Fast Lan Transfer Speeds.

Buffalo's BS-GU Series of Gigabit Green Ethernet Switches offer an easy and cost-effective way to extend your business network at gigabit Ethernet speeds. Plug and play installation requires no additional software or configuration; each auto-sensing gigabit port automatically detects and configures the correct connection.

• Lifetime warranty
• 5 gigabit Ethernet ports
• Durable metal chassis
• Fanless, compact design
• Fast and easy setup
• 802.3az Green Ethernet technology
• Loop detection/prevention (depending on model)
• Easily mount on a wall or place it on a desktop

Buffalo's Gigabit Green Ethernet Switches include power-savings features, like 802.3az Green Ethernet technology and an energy conservation feature that monitors the activity status of each port to reduce the total power consumed, therefore reducing related operational costs. Gigabit speeds, eco-minded operation, performance-minded features and a lifetime warranty make Buffalo's BS-GU Series of Gigabit Green Ethernet Switches a perfect network extension solution for your office.

Built To Last
Buffalo's Gigabit Green Ethernet Switches come with a compact and durable all metal chassis and are fanless which provides silent and reliable operation. Buffalo's lifetime warranty ensures that you will never have to replace your switch due to defects.

Easily Extend Your Home Network
Integrates any Ethernet enabled device with plug and play setup including PCs, TVs, gaming consoles and other digital home appliances.

Gigabit Ethernet
Multiple gigabit Ethernet ports provide fast transfer rates of large bandwidth intensive files including graphics and multimedia.

Fast and Easy Setup
Easy to read LED indicators for each port clearly and quickly communicate which ports have active connections as well as which ports have gigabit speed devices attached. Auto-MDIX provides fast plug and play setup, eliminating the need for a crossover cable while auto-negotiation detects the link speed of the attached device and adjusts for compatibility and optimal performance, making the switch backwards compatible with older network devices.

Save Energy and Operational Expenses
802.3az Green Ethernet technology monitors the link status of each port and only provides power to those that have a connected device that is powered on and puts transmitters into sleep mode when no information is being sent or received. In addition, the length of cable connected to each port is detected and the amount of power supplied is adjusted accordingly. All of these features add up to energy savings of up to 79% over traditional switches.

Detect Network Disruptions
Buffalo's Gigabit Green Ethernet Switches come with loop detection. Loop detection will alert you of a loop in your network by lighting an LED on the front of the switch.

What's in the box:

  • Buffalo Technology 5-Port Desktop Gigabit Green Ethernet Switch
  • Power Cable
  • Rubber Feet
  • User Manual
  • Buffalo Technology Lifetime Warranty with Registration
