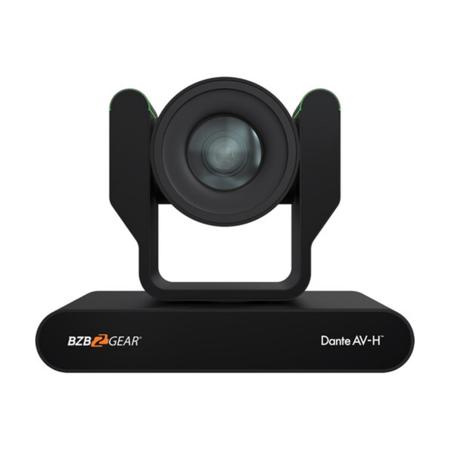

BZB GEAR BG-ADAMO-4KDA 4K HDMI 2.0/12G-SDI/USB Dante AV-H 25x PTZ Camera Black

SKU: BZBG4KDA25XB MFR: BG-ADAMO-4KDA25X-B
Earn VIP Reward Points

Key Features

  • Capture every detail with sharp 4K video resolution, perfect for professional live streaming and presentations.
  • Experience smooth pan-tilt movements and a wide zoom range, offering flexible camera control for any event.
  • Enjoy easy setup with versatile connectivity options, including HDMI, 12G-SDI, and USB, for seamless integration.
  • Benefit from reliable connectivity and Power over Ethernet (PoE) for simplified installation and consistent performance.
  • Utilize advanced auto-tracking capabilities to keep your subject in focus, ideal for dynamic presentations or lectures.
  • Choose from multiple color options to match your aesthetic, ensuring a durable build that blends into any environment.
See More Product Details
Special Order?Estimated to Ship: 07/11/2026
Free Shipping

See Options

1
Add to ListGet Sale Alert

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is Dante AV-H technology and how does it work with the BG-ADAMO-4KDA camera?

Dante AV-H technology is a leading network-based production standard in the AV over IP space. It allows the BG-ADAMO-4KDA camera to stream footage over a local area network with a single Ethernet cable, using H.26x compression for high image quality and low latency.

What is the purpose of the 255 programmable presets in the BG-ADAMO-4KDA camera?

The 255 programmable presets in the BG-ADAMO-4KDA camera allow for pre-composition of shots. This feature provides flexibility and efficiency, allowing you to set up your shots ahead of time and switch between them easily during live streaming or recording.

How does the auto-tracking feature in the BG-ADAMO-4KDA camera work?

The auto-tracking feature in the BG-ADAMO-4KDA camera uses the latest human detection AI algorithms. This monocular tracking method uses only one camera and one lens to detect and capture human forms and moving objects in seconds. It offers two modes: Presenter Tracking and Zone Tracking, providing flexibility depending on the usage scenario.

What types of video connections does the BG-ADAMO-4KDA camera support?

The BG-ADAMO-4KDA camera supports a variety of video connections, including Dante AV-H, USB 2.0, USB 3.0, LAN, HDMI, and 12G-SDI. These options provide versatility for different broadcasting and recording needs.

What is the storage capacity of the BG-ADAMO-4KDA camera?

The BG-ADAMO-4KDA camera features a Micro SD Card writer capable of storing up to 1TB of video footage. This allows for on-the-fly recording when other connections are not available.

Reviews about this item

Review Summary

BZB GEAR BG-ADAMO-4KDA 4K HDMI 2.0/12G-SDI/USB Dante AV-H 25x PTZ Camera Specifications

Camera Parameters

Camera Parameters

Jump to...
  • Optical Zoom

    25x

  • Focal Length Range

    f=6.91 mm - 214.64 mm +/-5%

  • View Angle

    H: 1.98 Degree (tele) - 59 Degree (wide)
    V: 1.12 Degree (tele) - 34.14 Degree (wide)

  • AV

    F1.35 - F4.6 +/-5%

  • Sensor

    1/1.8" SONY CMOS sensor

  • Effective Pixels

    8.51 Megapixels 16:9

  • Video Format

    HDMI:
    3840x2160p@60/50/30/25/59.94/29.97Hz; 1080p@60/50/30/25/59.94/29.97Hz; 1080i@60/50,30/59.94Hz; 720p@60/50/59.94Hz;

    12G-SDI:
    3840x2160p@60/50/30/25/59.94/29.97Hz; 1080p@60/50/30/25/59.94/29.97Hz; 1080i@60/50/59.94Hz; 720p@60/50/59.94Hz;

    USB2.0:
    MJPG: 3840x2160 /1920x1080 /1280x720 /1024x768 /1024x576 /800x600 /720x576 /720x480 /704x576 /640x480 /640x360 /352x288 /320x240p@30Hz;

  • Video Format (Contd.)

    H264: 3840x2160 /1920x1080 /1280x720 /1024x768 /1024x576 /800x600 /720x576 /720x480 /704x576 /640x480 /640x360 /352x288 /320x240p@30Hz;
    YUY2: 800x448 /720x480p@25; 640x360 /432x240p@30Hz
    NV12: 800x448p@25; 640x480 /640x360 /432x240p@30Hz

    USB 3.0:
    YUY2: 1920x1080 /1280x720p@60/50/30/25Hz; 960x540 /800x600p@30Hz; 720x576p@50Hz; 720x480p@60Hz; 640x480p@30Hz

  • Minimum Illumination

    0.5Lux (F1.8, AGC ON)

  • DNR

    3D DNR

  • White Balance

    Auto / Manual / One Push / Specified Color Temperature

  • Focus

    Auto / Manual / One Key Focus

  • Exposure Mode

    Auto, Manual / Shutter Priority / Aperture Priority / Brightness Priority

  • Aperture Parameters

    F1.8 - F11, CLOSE

  • Shutter Speed

    1/25 - 1/10000

  • BLC

    Off/On

  • Dynamic Range

    OFF / Dynamic Level Adjustment

  • Video Adjustment

    Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve

  • SNR

    >=50dB

Interface Features

Jump to...
  • Interfaces

    HDMI, 12G-SDI, LAN (support POE), USB2.0, A-IN, USB 3.0, Micro SD (FAT32), RS232-IN, RS232-OUT, RS422 (Compatible with RS485), Dial switch, DC12V, Power Switch

  • Video Compression

    LAN: H.264, H.265
    USB 2.0: MJPG, H264, H265, YUY2, NV12
    USB 3.0: YUY2

  • Audio-in Interface

    Double track 3.5mm linear Input

  • Audio-out Interface

    HDMI, SDI, LAN

  • Audio Compression

    AAC, G.711A

  • Sampling Frequency

    32000, 44100, 48000

  • LAN

    10M/100M/1000M adaptive Ethernet port, support POE and audio/video output

  • Network Protocol

    RTSP, RTMP, RTMPS, ONVIF, SRT, GB/T28181; VISCA Control Protocols

  • Control Interface

    RS232-IN, RS232-OUT, RS422 compatible with RS485

  • Serial Protocol

    VISCA/Pelco-D/Pelco-P; Baud Rate:115200/38400/9600/4800/2400

  • USB Communication Protocol

    UVC (video)

  • Power Interface

    HEC3800 (DC12V)

  • Power Adapter

    In: AC110V-AC220V; Out: DC12V/2.5A

  • Input Voltage

    DC12V +/-10%

  • Input Current

    <1.5A

  • Power Consumption

    <12W

PTZ Parameters

Jump to...
  • Pan Rotation

    -170 Degree - +170 Degree

  • Tilt Rotation

    -30 Degree - +90 Degree

  • Pan Control Speed

    0.1 Degree/s - 100 Degree/s

  • Tilt Control Speed

    0.1 Degree/s - 70 Degree/s

  • Preset Speed

    Pan: 78.8 Degree/s, Tilt: 31.7 Degree/s

  • Preset Number

    255 Presets (10 presets by remote control)

  • UPC Codes

    White: 850033687569 | Black: 850033687576

About BZB GEAR BG-ADAMO-4KDA 4K HDMI 2.0/12G-SDI/USB Dante AV-H 25x PTZ Camera

Just when you thought live streaming couldn't get any better, the BG-ADAMO-4KDA 4K HDMI 2.0/12G-SDI/USB 3.0 Dante AV-H Live Streaming PTZ Camera takes it to the next level. This next-generation PTZ camera, brought to you by BZBGEAR, is a game-changer in the live streaming broadcasting industry, thanks to its unique design, exclusive features, and superior performance.

The BG-ADAMO-4KDA is equipped with the latest Dante AV-H technology by Audinate, offering a full suite of video connections and delivering stunning 4K@60Hz resolution. This integration allows the camera to distribute the stream to multiple devices on the network using a simple Ethernet connection, making it a standout in its class.

With a 12G-SDI connection, the BG-ADAMO-4KDA ensures long-distance cable runs without compromising image quality. It also offers up to 255 programmable presets, with 10 easily accessible via the IR remote, allowing you to compose shots ahead of time.

The camera's lens features an advanced auto-focusing algorithm that guarantees quick, accurate, and stable focusing. Coupled with the 3D noise reduction technology and low-noise CMOS sensor, the BG-ADAMO-4KDA ensures impeccable image clarity. The 25x optical zoom lens with a 59-degree wide-angle further enhances its functionality.

The BG-ADAMO-4KDA offers a variety of video connections, including Dante AV-H, USB 2.0, USB 3.0, LAN, HDMI, and 12G-SDI. Its dual stream USB facilitates concurrent main-stream and substream outputs, while the HDMI, SDI, and USB 2.0 connections are capable of transmitting 4K video and audio signals simultaneously.

Dante AV-H technology, a leading network-based production standard in the AV over IP space, allows users to stream camera footage over a local area network with a single Ethernet cable. It uses H.26x compression to compress the bandwidth of a camera's video feed, enabling it to stream over a local area network with near-zero latency and high image quality up to YUV 4:4:4. Dante AV-H also ensures 100% audio/visual synchronization and is HDCP compliant for content protection.

The BG-ADAMO-4KDA's innovative design is as functional as it is attractive. Available in classic white or black finishes, its high-stability substructure provides a solid foundation for the precision lens delivering 4K resolution video at 60fps. The control arms feature built-in tally lights that illuminate either green or red with 360-degree visibility, eliminating the need for bulky external accessories.

The camera's auto-tracking technology uses the latest human detection AI algorithms to provide unparalleled tracking speed and accuracy. This monocular tracking method uses only one camera and one lens to detect and capture human forms and moving objects in seconds. The auto tracking is available in two modes: Presenter Tracking and Zone Tracking, providing flexibility and precision in capturing your live events.

Whether it's for studio recordings, houses of worship, sporting events, event businesses, or medical practices, the BG-ADAMO-4KDA 4K HDMI 2.0/12G-SDI/USB 3.0 Dante AV-H Live Streaming PTZ Camera is the ideal choice for capturing high-quality, professional-grade live streams.

BZB GEAR BG-ADAMO-4KDA 4K HDMI 2.0/12G-SDI/USB Dante AV-H 25x PTZ Camera Features

  • 12G SDI: Output up to 4K@60Hz resolution over SDI cabling
  • Tally Lights: Integrated red/green LED tally lights
  • MicroSD: Record and store up to 1 TB of 4K video
  • Zoom: 25x optical zoom lens
  • Multiple Video Outputs: Choose from SDI, HDMI, USB 3.0, USB 2.0, or IP Streaming
  • PoE: Data, power, and control over a single category cable
  • Multiple forms of control including RS232, RS422, Web GUI, Control App, or IR Remote
  • Stream to your choice of platform directly from the camera, no capture card needed

Key Features

  • Capture every detail with sharp 4K video resolution, perfect for professional live streaming and presentations.
  • Experience smooth pan-tilt movements and a wide zoom range, offering flexible camera control for any event.
  • Enjoy easy setup with versatile connectivity options, including HDMI, 12G-SDI, and USB, for seamless integration.
  • Benefit from reliable connectivity and Power over Ethernet (PoE) for simplified installation and consistent performance.
  • Utilize advanced auto-tracking capabilities to keep your subject in focus, ideal for dynamic presentations or lectures.
  • Choose from multiple color options to match your aesthetic, ensuring a durable build that blends into any environment.

What's in the box:

  • BZB GEAR BG-ADAMO-4KDA 4K HDMI PTZ Camera
  • IR Remote Control
  • 12V/1.5A Power Supply
  • RS232 Control Cable
  • User Manual
  • BZB GEAR 3 Year Limited Warranty (Extended 2 Year Warranty with Online Registration)
