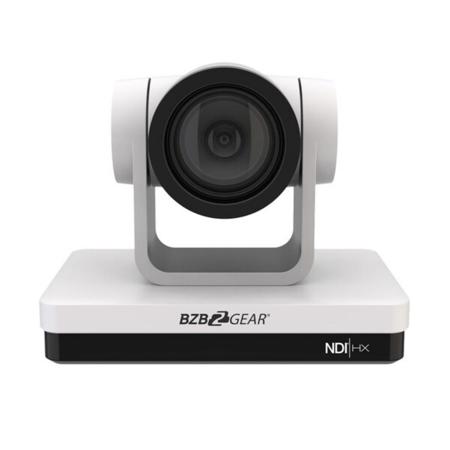

BZB GEAR BG-UPTZ-ND Universal FHD NDI/HDMI/SDI/USB 12x PTZ Camera White

SKU: BZBGZND12XW MFR: BG-UPTZ-ND12X-W
Earn VIP Reward Points

Key Features

  • Experience sharp, clear video with full HD 1080p resolution, perfect for live streaming and conferencing.
  • Enjoy smooth, precise PTZ camera movements with 340-degree pan and 90-degree tilt for comprehensive coverage.
  • Achieve broad, wide views with up to 12x optical zoom, capturing every detail in various settings.
  • Control your camera effortlessly with easy remote control options, including IR, RS232/485, and IP.
  • Benefit from a reliable, durable build with multiple video interfaces like NDI, HDMI, SDI, and USB 3.0.
  • Discover affordable value with versatile connectivity and power options, including PoE for simplified setup.
See More Product Details
Special Order?Estimated to Ship: 07/11/2026
Free Shipping

See Options

1
Add to ListGet Sale Alert

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the resolution of the BG-UPTZ-ND Universal Full HD Live Streaming Camera?

The BG-UPTZ-ND Universal Full HD Live Streaming Camera delivers an exceptional picture quality with a resolution of up to 1080p@60Hz.

What kind of video outputs does the BG-UPTZ-ND camera support?

The BG-UPTZ-ND camera supports a wide array of video outputs, including HDMI, 3G-SDI, USB 3.0, and NDI|HX, making it compatible with virtually any production or live streaming platform.

Does the BG-UPTZ-ND camera support direct streaming to platforms like Facebook and YouTube?

Yes, the BG-UPTZ-ND camera's built-in stream encoder supports H.264/H.265 video compression and the RTMP(S) network protocol, enabling direct streaming from the camera to popular platforms like Facebook and YouTube.

What is the zoom capability of the BG-UPTZ-ND camera?

The BG-UPTZ-ND camera offers a high-quality 12x optical zoom and an additional 10x digital zoom, providing comprehensive coverage for any event.

What are some of the control options for the BG-UPTZ-ND camera?

The BG-UPTZ-ND camera offers multiple control options, including WebGUI, NDI, IP VISCA, ONVIF, RS422/485, and cascading RS232 (VISCA/Pelco-P/D). It also supports up to 255 preset positions and IR remote control.

Reviews about this item

Review Summary

BZB GEAR BG-UPTZ-ND Specifications

  • Lens

    12x Optical zoom

  • Horizontal View Angle

    72.5 Degree (W)-6.3 Degree (T)

  • Image Sensor

    1/2.8" Progressive CMOS

  • Effective Pixels

    2.07 Megapixels (16:9)

  • Resolution

    1080p@60/50, 1080i@60/50, 1080p@30/25, 720p@60/50

  • Interface

    USB 3.0, HDMI, 3G-SDI, NDI/LAN(POE), RS232/485, LINE IN

  • Pan Rotation

    340 Degree (max. speed: 80 Degree/s)

  • Tilt Rotation

    -30 Degree to +90 Degree (max. speed: 60 Degree/s)

  • Focus System

    Auto/Manual

  • S/N Ratio

    >=50db

  • Preset Position

    9 preset positions by IR remote controller, 255 preset positions by Keyboard or PC

  • Minimum Illumination

    0.5 Lux (F1.8, AGC ON)

  • Exposure Control

    Auto/Manual/Priority AE/Exposure Compensation/Bright

  • Shutter Speed

    1/1-1/10,000s

  • Gain

    Auto/Manual

  • White Balance

    Auto/Manual/ATW/One-click/Indoor/Outdoor

  • Image Effect

    Full color/black and white/Electronic flip

  • Video Output HD

    HDMI, 3G-SDI, IP, USB 3.0

  • Control Protocol

    RTSP, RTMP, ONVIF, GB/T28181

  • Power

    12V DC

  • Power Consumption

    Max. 30W (DC 12V)

  • Operating Temperature

    32 Degree F - 104 Degree F (0 Degree C-+40 Degree C)

  • Storage Temperature

    -4 Degree F - 140 Degree F (-20 Degree C-+60 Degree C)

  • Dimensions (L x W x H)

    7 x 4.5 x 5.9" (178 x 115.5 x 151mm)

  • Weight

    3 lbs (1.38kg)

  • UPC Codes

    Black: 850023208576 | White: 850023208569

About BZB GEAR BG-UPTZ-ND

Why settle for less when you can have the best The BG-UPTZ-ND Universal Full HD NDI/HDMI/SDI/USB 3.0 Live Streaming 12x PTZ Camera is a high-tech, state-of-the-art solution for all your live streaming and conferencing needs. This advanced camera is designed to deliver exceptional picture quality with a resolution of up to 1080p@60Hz. Its sophisticated 12x optical zoom lens, backed by cutting-edge auto focus algorithms, ensures high-definition image captures at varying distances.

The BG-UPTZ-ND is not just a camera, but a comprehensive live streaming platform, equipped with a wide array of video outputs including HDMI, 3G-SDI, USB 3.0, and NDI|HX. This innovative feature set ensures seamless compatibility with virtually any production or live streaming platform.

Ease of use is a key advantage of the BG-UPTZ-ND. The camera incorporates the latest NDI technology and Power over Ethernet (PoE) functionality, eliminating the need for additional video or power cables. Its built-in stream encoder supports H.264/H.265 video compression and the RTMP(S) network protocol, enabling effortless streaming directly from the camera to popular platforms like Facebook and YouTube.

The BG-UPTZ-ND is also renowned for its smooth and quiet operation, thanks to its precision motor controller. The camera's NDI open protocol allows professionals to share video through a local area network (LAN) with video-compatible devices, simplifying all stages of production.

The camera's superior image quality is attributed to its 1/2.8" high-quality HD progressive CMOS sensor. It offers a high-quality 12x optical zoom and an additional 10x digital zoom. The camera's field of view extends up to 72.5 degrees at 12X, providing comprehensive coverage for any event.

The BG-UPTZ-ND offers multiple control options, including WebGUI, NDI, IP VISCA, ONVIF, RS422/485, and cascading RS232 (VISCA/Pelco-P/D). It supports up to 255 preset positions and IR remote control. The camera's PoE and NDI technology simplify installation by eliminating the need for extra power and video cables.

The BG-UPTZ-ND also enables operators to embed stereo audio with a 3.5mm jack. It offers versatile mounting options for walls, ceilings, and tripods, making it an extremely flexible platform for recording and streaming events. Whether you're capturing videoconferencing sessions, remote learning, worship services, sporting events, concerts, or other events, the BG-UPTZ-ND is the perfect tool for the job. It supports SRT, ensuring high-quality, low-latency video transmission over the internet.

Ideal for studio recordings, remote education and healthcare, houses of worship, sporting events, concerts, event businesses, teachers, doctors, and pastors, the BG-UPTZ-ND Universal Full HD NDI/HDMI/SDI/USB 3.0 Live Streaming 12x PTZ Camera is the ultimate choice for professionals seeking superior control and exceptional image quality.

BZB GEAR BG-UPTZ-ND Features

  • Zoom: 12x Optical zoom, + 10x Digital
  • Control: IP, IR, and cascadable RS232/485 (VICSA/Pelco) + 255 preset positions
  • Multiple Video Outputs: HDMI, 3G-SDI, USB 3.0, and IP-Streaming working simultaneously
  • Latest Streaming Tech: Supports H.264/H.265 video compression and RTMP(S) network protocol for YouTube/Facebook live streaming
  • Superb Auto Focus: Latest auto focusing algorithms resulting in quick, accurate, and stable focus
  • NDI: Compatible with NDI 4.0 from NewTek
  • Works with all NDI tools from NewTek
  • Minimum Illumination 0.5 Lux
  • 1/2.8" low-noise CMOS sensor
  • Whisper-quiet operation
  • Resolutions up to 1080p@60Hz
  • Multiple mounting options
  • PoE LAN port allows for single cable installations
  • Live-stream directly from the camera
  • 72.5 Degree Field of view at 12x

Key Features

  • Experience sharp, clear video with full HD 1080p resolution, perfect for live streaming and conferencing.
  • Enjoy smooth, precise PTZ camera movements with 340-degree pan and 90-degree tilt for comprehensive coverage.
  • Achieve broad, wide views with up to 12x optical zoom, capturing every detail in various settings.
  • Control your camera effortlessly with easy remote control options, including IR, RS232/485, and IP.
  • Benefit from a reliable, durable build with multiple video interfaces like NDI, HDMI, SDI, and USB 3.0.
  • Discover affordable value with versatile connectivity and power options, including PoE for simplified setup.

What's in the box:

  • BZB GEAR BG-UPTZ-ND Universal Full HD NDI/HDMI/SDI/USB 3.0 Live Streaming 12x PTZ Camera
  • 12V/1.5A Power Supply
  • RS232 Control Cable
  • IR Remote Control
  • User Manual
  • BZB GEAR 3 Year Limited Warranty
