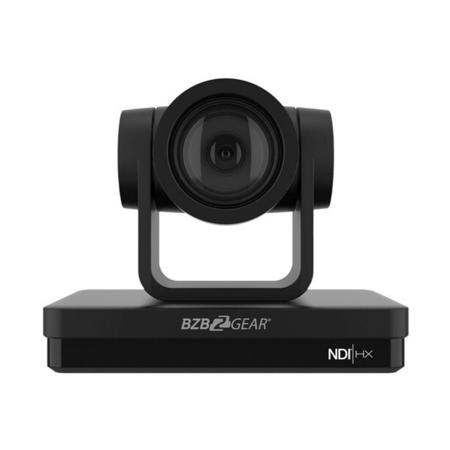

BZB GEAR BG-UPTZ-ND Universal FHD NDI/HDMI/SDI/USB 30x PTZ Camera Black

SKU: BZBGTZND30XB MFR: BG-UPTZ-ND30X-B
Earn VIP Reward Points

Key Features

  • Experience crystal-clear 1080p video resolution, perfect for professional live streaming and conferencing.
  • Achieve precise framing with smooth pan-tilt-zoom (PTZ) functionality and a powerful 30x optical zoom.
  • Enjoy versatile connectivity options including NDI, HDMI, SDI, and USB 3.0 for seamless integration.
  • Benefit from reliable low-light performance, ensuring exceptional image quality even in challenging environments.
  • Simplify installation with Power over Ethernet (PoE) support, reducing cable clutter and setup time.
  • Capture every detail with sharp 4K video capabilities, enhancing your presentations and broadcasts.
See More Product Details
Special Order?Estimated to Ship: 07/11/2026
Free Shipping

See Options

1
Add to ListGet Sale Alert

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the resolution of the BG-UPTZ-ND Universal Full HD NDI/HDMI/SDI/USB 3.0 Live Streaming 30x PTZ Camera?

The BG-UPTZ-ND camera offers high-resolution video capture with up to 1080p@60Hz.

What types of video outputs does the BG-UPTZ-ND camera support?

The BG-UPTZ-ND camera supports a variety of video outputs, including HDMI, 3G-SDI, USB 3.0, and NDI|HX.

Does the BG-UPTZ-ND camera support streaming directly to platforms like Facebook and YouTube?

Yes, the BG-UPTZ-ND camera has a built-in stream encoder that supports H.264/H.265 video compression and the RTMP(S) network protocol, allowing for direct streaming to platforms like Facebook and YouTube.

What control options does the BG-UPTZ-ND camera offer?

The BG-UPTZ-ND camera supports multiple control options, including WebGUI, NDI, IP VISCA, ONVIF, RS422/485, and cascading RS232 (VISCA/Pelco-P/D). It also supports up to 255 preset positions and IR remote control.

Does the BG-UPTZ-ND camera support Power over Ethernet (PoE) and NDI technology?

Yes, the BG-UPTZ-ND camera supports Power over Ethernet (PoE) and NDI technology, which simplifies the setup process by eliminating the need for extra power and video cables.

Reviews about this item

Review Summary

BZB GEAR BG-UPTZ-ND Specifications

  • Color

    Black

  • Lens

    30x Optical zoom

  • Horizontal View Angle

    65.1 Degree (W)-2.34 Degree (T)

  • Image Sensor

    1/2.8" Progressive CMOS

  • Effective Pixels

    2.07 Megapixels (16:9)

  • Resolution

    1080p@60/50, 1080i@60/50, 1080p@30/25, 720p@60/50

  • Interface

    USB 3.0, HDMI, 3G-SDI, NDI/LAN(POE), RS232/485, LINE IN

  • Pan Rotation

    340 Degree (max. speed: 80 Degree/s)

  • Tilt Rotation

    -30 Degree to +90 Degree (max. speed: 60 Degree/s)

  • Focus System

    Auto/Manual

  • S/N Ratio

    >=50db

  • Preset Position

    9 preset positions by IR remote controller, 255 preset positions by Keyboard or PC

  • Minimum Illumination

    0.5 Lux (F1.8, AGC ON)

  • Exposure Control

    Auto/Manual/Priority AE/Exposure Compensation/Bright

  • Shutter Speed

    1/1-1/10,000s

  • Gain

    Auto/Manual

  • White Balance

    Auto/Manual/ATW/One-click/Indoor/Outdoor

  • Image Effect

    Full color/black and white/Electronic flip

  • Video Output HD

    HDMI, 3G-SDI, IP, USB 3.0

  • Control Protocol

    RTSP, RTMP, ONVIF, GB/T28181

  • Power

    12V DC

  • Power Consumption

    Max. 30W (DC 12V)

  • Operating Temperature

    32 Degree F - 104 Degree F (0 Degree C-+40 Degree C)

  • Storage Temperature

    -4 Degree F - 140 Degree F (-20 Degree C-+60 Degree C)

  • Dimensions (L x W x H)

    7 x 4.5 x 5.9" (178 x 115.5 x 151mm)

  • Weight

    3 lbs (1.38kg)

  • UPC Codes

    Black: 850023208613 | White: 850023208606

About BZB GEAR BG-UPTZ-ND

Over the years, the BG-UPTZ-ND Universal Full HD NDI/HDMI/SDI/USB 3.0 Live Streaming 30x PTZ Camera has become a go-to choice for professionals seeking high-quality live streaming capabilities. This top-tier camera delivers superior picture quality, boasting resolutions up to 1080p@60Hz. The 30x optical zoom lens, complemented by advanced auto-focus algorithms, ensures HD image capture at varying distances, making it a versatile tool for any production or live streaming platform.

The BG-UPTZ-ND is equipped with a range of video outputs, including HDMI, 3G-SDI, USB 3.0, and NDI|HX, making it a versatile solution for diverse production needs. Its user-friendly design, coupled with the latest NDI technology and Power over Ethernet (PoE) functionality, eliminates the need for extra video or power cables, simplifying the setup process.

This live streaming camera stands out with its built-in stream encoder, supporting H.264/H.265 video compression and the RTMP(S) network protocol. This feature enables users to stream directly from the camera to popular platforms like Facebook and YouTube, enhancing the reach of their content.

The BG-UPTZ-ND camera is also renowned for its precise motor controller, ensuring smooth and quiet movement, crucial for professional video production. Its integration with the NDI 5.5 toolkit allows users to connect any audio device as an NDI source, adding audio over IP to NDI's revolution.

The camera's optical sensor, a 1/2.8" high-quality HD progressive CMOS sensor, along with its 30x optical zoom and additional 10x digital zoom, ensures exceptional image quality. The camera's field of view extends up to 65 degrees at 30x, offering a wide coverage area.

The BG-UPTZ-ND supports multiple control options, including WebGUI, NDI, IP VISCA, ONVIF, RS422/485, and cascading RS232 (VISCA/Pelco-P/D). It also supports up to 255 preset positions and IR remote control, offering superior control for any recording or streaming event.

With PoE and NDI technology, this camera simplifies installation, eliminating the need for additional power and video cables. It also allows operators to embed stereo audio with a 3.5mm jack. The camera offers flexible mounting options for walls, ceilings, and tripods, making it adaptable for various recording environments.

The BG-UPTZ-ND camera supports SRT, enabling high-quality, low-latency video to be sent reliably over the internet. This makes it an ideal fit for studio recordings, remote education and healthcare, houses of worship, sports events, concerts, event businesses, and professionals like teachers, doctors, and pastors.

BZB GEAR BG-UPTZ-ND Features

  • Zoom: 30x Optical zoom, + 10x Digital
  • Control: IP, IR, and cascadable RS232/485 (VICSA/Pelco) + 255 preset positions
  • Multiple Video Outputs: HDMI, 3G-SDI, USB 3.0, and IP-Streaming working simultaneously
  • Latest Streaming Tech: Supports H.264/H.265 video compression and RTMP(S) network protocol for YouTube/Facebook live streaming
  • Superb Auto Focus: Latest auto focusing algorithms resulting in quick, accurate, and stable focus
  • NDI: Compatible with NDI 4.0 from NewTek
  • Works with all NDI tools from NewTek
  • Minimum Illumination 0.5 Lux
  • 1/2.8" low-noise CMOS sensor
  • Whisper-quiet operation
  • Resolutions up to 1080p@60Hz
  • Multiple mounting options
  • PoE LAN port allows for single cable installations
  • Live-stream directly from the camera
  • 65.1 Degree Field of view at 30x

Key Features

  • Experience crystal-clear 1080p video resolution, perfect for professional live streaming and conferencing.
  • Achieve precise framing with smooth pan-tilt-zoom (PTZ) functionality and a powerful 30x optical zoom.
  • Enjoy versatile connectivity options including NDI, HDMI, SDI, and USB 3.0 for seamless integration.
  • Benefit from reliable low-light performance, ensuring exceptional image quality even in challenging environments.
  • Simplify installation with Power over Ethernet (PoE) support, reducing cable clutter and setup time.
  • Capture every detail with sharp 4K video capabilities, enhancing your presentations and broadcasts.

What's in the box:

  • BZB GEAR BG-UPTZ-ND Universal Full HD NDI/HDMI/SDI/USB 3.0 Live Streaming 30x PTZ Camera
  • 12V/1.5A Power Supply
  • RS232 Control Cable
  • IR Remote Control
  • User Manual
  • BZB GEAR 3 Year Limited Warranty
