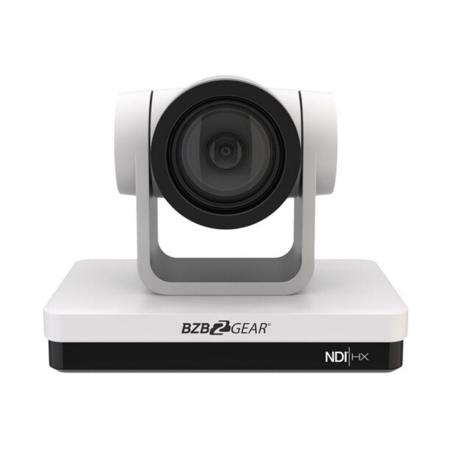

The BG-UPTZ-ND Universal Full HD NDI/HDMI/SDI/USB 3.0 Live Streaming 30x PTZ Camera provides a high resolution of Full HD 1080p, ensuring clear and detailed images.
The BG-UPTZ-ND camera offers a variety of video outputs including HDMI, 3G-SDI, USB 3.0, and NDI|HX, providing versatile options for connecting to different devices and platforms.
Yes, the BG-UPTZ-ND camera is equipped with a stream encoder that supports H.264/H.265 video compression and the RTMP(S) network protocol, enabling users to stream directly to platforms like Facebook and YouTube.
The NDI technology in the BG-UPTZ-ND camera allows for real-time, ultra-low latency video on existing IP video networks. It is a high-performance AV over IP standard that simplifies the setup process and enhances the overall user experience.
The BG-UPTZ-ND camera is equipped with a 30x optical zoom lens, allowing for HD image captures at various distances and providing more flexibility in framing shots and capturing distant objects.
Review Summary
Black
30x Optical zoom
65.1 Degree (W)-2.34 Degree (T)
1/2.8" Progressive CMOS
2.07 Megapixels (16:9)
1080p@60/50, 1080i@60/50, 1080p@30/25, 720p@60/50
USB 3.0, HDMI, 3G-SDI, NDI/LAN(POE), RS232/485, LINE IN
340 Degree (max. speed: 80 Degree/s)
-30 Degree to +90 Degree (max. speed: 60 Degree/s)
Auto/Manual
>=50db
9 preset positions by IR remote controller, 255 preset positions by Keyboard or PC
0.5 Lux (F1.8, AGC ON)
Auto/Manual/Priority AE/Exposure Compensation/Bright
1/1-1/10,000s
Auto/Manual
Auto/Manual/ATW/One-click/Indoor/Outdoor
Full color/black and white/Electronic flip
HDMI, 3G-SDI, IP, USB 3.0
RTSP, RTMP, ONVIF, GB/T28181
12V DC
Max. 30W (DC 12V)
32 Degree F - 104 Degree F (0 Degree C-+40 Degree C)
-4 Degree F - 140 Degree F (-20 Degree C-+60 Degree C)
7 x 4.5 x 5.9" (178 x 115.5 x 151mm)
3 lbs (1.38kg)
Black: 850023208613 | White: 850023208606
Over the years, the BG-UPTZ-ND Universal Full HD NDI/HDMI/SDI/USB 3.0 Live Streaming 30x PTZ Camera has become a go-to choice for professionals seeking high-quality live streaming capabilities. This top-tier camera delivers superior picture quality, boasting resolutions up to 1080p@60Hz. The 30x optical zoom lens, complemented by advanced auto-focus algorithms, ensures HD image capture at varying distances, making it a versatile tool for any production or live streaming platform.
The BG-UPTZ-ND is equipped with a range of video outputs, including HDMI, 3G-SDI, USB 3.0, and NDI|HX, making it a versatile solution for diverse production needs. Its user-friendly design, coupled with the latest NDI technology and Power over Ethernet (PoE) functionality, eliminates the need for extra video or power cables, simplifying the setup process.
This live streaming camera stands out with its built-in stream encoder, supporting H.264/H.265 video compression and the RTMP(S) network protocol. This feature enables users to stream directly from the camera to popular platforms like Facebook and YouTube, enhancing the reach of their content.
The BG-UPTZ-ND camera is also renowned for its precise motor controller, ensuring smooth and quiet movement, crucial for professional video production. Its integration with the NDI 5.5 toolkit allows users to connect any audio device as an NDI source, adding audio over IP to NDI's revolution.
The camera's optical sensor, a 1/2.8" high-quality HD progressive CMOS sensor, along with its 30x optical zoom and additional 10x digital zoom, ensures exceptional image quality. The camera's field of view extends up to 65 degrees at 30x, offering a wide coverage area.
The BG-UPTZ-ND supports multiple control options, including WebGUI, NDI, IP VISCA, ONVIF, RS422/485, and cascading RS232 (VISCA/Pelco-P/D). It also supports up to 255 preset positions and IR remote control, offering superior control for any recording or streaming event.
With PoE and NDI technology, this camera simplifies installation, eliminating the need for additional power and video cables. It also allows operators to embed stereo audio with a 3.5mm jack. The camera offers flexible mounting options for walls, ceilings, and tripods, making it adaptable for various recording environments.
The BG-UPTZ-ND camera supports SRT, enabling high-quality, low-latency video to be sent reliably over the internet. This makes it an ideal fit for studio recordings, remote education and healthcare, houses of worship, sports events, concerts, event businesses, and professionals like teachers, doctors, and pastors.
