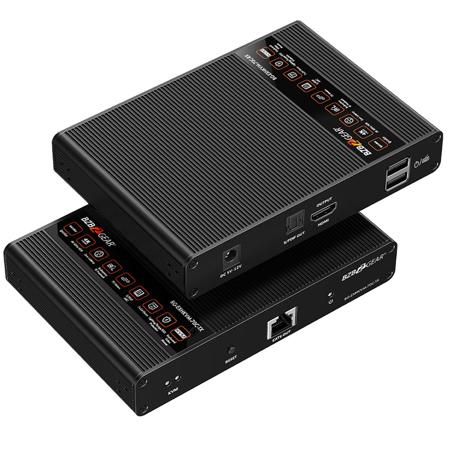

BZB GEAR BG-EXHKVM-70C 4K 60Hz HDR HDMI/KVM/ARC Extender with Zero Latency, 230'

SKU: BZBGXHKVM70C MFR: BG-EXHKVM-70C
Earn VIP Reward Points

Key Features

  • Extend your HDMI signal up to 230ft with this zero-latency HDMI KVM extender.
  • Enjoy pristine 4K 60Hz HDR video with this HDMI extender over CAT6/6A/7 cable.
  • Control your server or workstation remotely using the integrated KVM function.
  • Experience high-fidelity audio with S/PDIF out, supporting multiple audio formats.
  • This HDMI KVM extender supports HDMI loop-out for local monitoring needs.
  • Built with durable aluminum alloy, backed by a 2-year warranty for reliability.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$109.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

BZB GEAR BG-EXHKVM-70C Specifications

Technical

Technical

Jump to...
  • HDMI compliance

    HDMI2.0, compatible HDMI1.4

  • HDCP compliance

    HDCP2.2, compatible HDCP1.4

  • Transmission medium

    CAT6/CAT6A/CAT7

  • Transmission distance

    <=70 meters

  • Video bandwidth

    18Gbps

  • Video support

    1280x960, 1280x800, 1280x768, 1680x1050, 1360x768, 1366x768, 1600x900, 1024x768, 800x600,480i@60Hz,480p@60Hz,576i@50Hz,576p@50Hz,720p@50/60Hz,1080i@50/60Hz,1080p@50/60Hz,3840x2160@24/25/30/50/60Hz,4096x2160@24/25Hz

  • Audio formats

    LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1CH

  • HDR10(YUV4:4:4)

    support

  • HDMI Loop-out

    support

  • S/PDIF out

    support

  • EDID through

    support

  • KVM function

    support

  • Input TMDS signal

    0.7-1.2Vp-p

  • Input DDC signal

    5Vp-p

  • Input

    Transmitter: HDMI IN x1, DC2.1 x1, USB-A x1
    Receiver: DC2.1 x1, RJ45 x1, USB-A x2

  • Output

    Transmitter: HDMI OUT x1, RJ45 x1
    Receiver: HDMI OUT x1, S/PDIF OUT x1

  • HDMI connector

    Type A 19 Pins, Female

  • Network cable standard

    CAT6/CAT6A/CAT7, follow IEEE-5688 standard

Mechanical

Jump to...
  • Material

    Aluminum alloy material+crystal panel

  • Power supply

    Transmitter: 5V/2A
    Receiver: 5V/2A

  • Power consumption

    Transmitter: 4W
    Receiver: 4W

  • Operation Temperature

    -4 Degree F - +140 Degree F (-20-60 Degree C)

  • Storage temperature

    -22 Degree F - +158 Degree F (-25 Degree C - +70 Degree C)

  • Relative humidity

    0-90%(no condensation)

  • Dimensions (L x W x H)

    5.9 x 4.21 x 1.11" (150 x 107 x 28.4mm)

  • Weight

    Transmitter: 9.17 oz (260g)
    Receiver: 9.17 oz (260g)

About BZB GEAR BG-EXHKVM-70C

Take your audio-visual experience to the next level with the BG-EXHKVM-70C 4K 60Hz HDR HDMI/KVM/ARC Extender. This high-performance device is designed to transmit an uncompressed 4K@60Hz HDMI signal along with USB 2.0 over distances up to 70 meters, ensuring crystal clear image and sound quality.

The integrated KVM functionality provides the convenience of controlling a PC or media player remotely from the display side using a keyboard and mouse. This makes it an invaluable tool for environments where direct access to the source device is not possible or practical.

The BG-EXHKVM-70C also features digital audio extraction capabilities via the S/PDIF port. It supports a wide range of audio formats including LPCM, DTS-HD, DTS-Audio, Dolby Digital, and Dolby TrueHD, allowing you to connect an external audio system for enhanced sound quality.

With the HDMI loop-out feature, you can connect an additional display on the transmitter side, expanding your viewing options. The plug-and-play setup, coupled with bi-directional IR pass-through and integrated surge protection, ensures a hassle-free installation process and reliable operation.

The BG-EXHKVM-70C supports resolutions up to 4K@60Hz, delivering stunning visuals for a superior viewing experience. It's an ideal fit for offices, classrooms, and commercial displays, making it a preferred choice for business owners, educators, and professional A/V integrators.

In summary, the BG-EXHKVM-70C 4K 60Hz HDR HDMI/KVM/ARC Extender offers a comprehensive solution for your high-definition audio and video transmission needs, combining superior performance, flexibility, and reliability in one compact device.

BZB GEAR BG-EXHKVM-70C Features

  • 4K - Supports resolutions up to 4K@60Hz
  • Audio Extraction - Digital audio can be extracted via the optical audio port
  • KVM Function - Remotely control a PC from the display side with a keyboard and mouse
  • Plug and Play - Easy setup, no drivers to install
  • HDMI Loop-Out - Connect an additional display to the transmitter
  • Surge Protection - Integrated surge protection increases reliability
  • Supports HDMI 2.0a, compatible with HDCP 2.2 and HDCP 1.4
  • Supports auto down-scaling to match display resolution
  • Supports bi-directional IR for two-way remote control
  • Supports uncompressed 4K@60Hz 4:4:4 with HDR10 and zero latency

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Extend your HDMI signal up to 230ft with this zero-latency HDMI KVM extender.
  • Enjoy pristine 4K 60Hz HDR video with this HDMI extender over CAT6/6A/7 cable.
  • Control your server or workstation remotely using the integrated KVM function.
  • Experience high-fidelity audio with S/PDIF out, supporting multiple audio formats.
  • This HDMI KVM extender supports HDMI loop-out for local monitoring needs.
  • Built with durable aluminum alloy, backed by a 2-year warranty for reliability.

What's in the box:

  • HDMI Extender Transmitter
  • HDMI Extender Receiver
  • User Manual
  • USB Cable
  • 2x 5V2A DC Power Supply
  • 8x Mounting Brackets
  • 18x Screws
  • BZB GEAR 2 Year Limited Warranty
