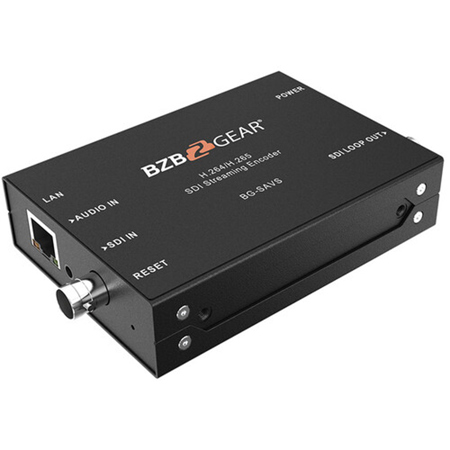

BZB GEAR BG-SAVS 1080P H.264/265 SDI Video and Audio Streaming Encoder

SKU: BZSAVS

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

BZB GEAR BG-SAVS Specifications

Connections

Connections

Jump to...
  • Video Input

    1x HDMI Type A

  • Video Loop Out

    1x HDMI Type A

  • Analog Audio

    1x 3.5mm (line in)

  • Network

    RJ-45 x 1 (100/1000Mbps self-adaptive Ethernet)

Standards

Jump to...
  • HDMI In Format Support

    1080p 60/59.94/50/30/29.97/25/24/23.98/23.976,1080i 50/59.94/60
    720p 60/59.94/50/30/29.97/25/24/23.98,
    576i 50, 576p 50, 480p 59.94/60, 480i 59.94/60

  • Video Coding

    H.265/ H.264

  • Video Bitrate

    16Kbps - 12MKbps

  • Audio Coding

    ACC/ MP3/ MP2/ G711

  • Audio Bitrate

    24Kbps - 320Kbps

  • Encoding Resolution

    1920 x1080, 1680 x1056, 1280 x720, 1024 x576, 960 x540
    850 x480, 720 x576, 720 x540
    720 x480, 720 x404, 720 x400, 704 x576, 640 x480, 640 x360

  • Encoding Frame Rate

    5-60fps

Systems

Jump to...
  • Network Protocols

    HTTP, RTSP, RTMP, RTP, UDP, Multicast, Unicast, SRT

  • Configuration Management

    Web configuration, Remote upgrade

General

Jump to...
  • Consumption

    5W

  • Temperature

    Working temp: 14 Degree F - 140 Degree F(-10 Degree C -60 Degree C)
    Storage temp: -4 Degree F - 158 Degree F (-20 Degree C -70 Degree C)

  • Dimensions (L x W x D)

    4.09 x 2.97 x 0.96" (104 x 75.5 x 24.5mm)

  • Weight

    10.9 oz (310g)

About BZB GEAR BG-SAVS

After careful design and innovation, the BG-SAVS 1080P H.264/265 SDI Video and Audio Streaming Encoder emerges as a compact, single-channel streamer capable of broadcasting a 3G-SDI source signal directly to your preferred platform. This high-quality, reliable encoder is compatible with all major streaming platforms, including YouTube, Facebook, and Twitch, making it a versatile tool for a variety of streaming needs.

Whether you're streaming video game consoles, video mixers, cameras, or other video equipment not originally designed for streaming, the BG-SAVS is an efficient solution. It can transmit resolutions up to 1080P@60fps, delivering clear images and fluid motion for a consistently high-quality streaming experience.

One of the standout features of this durable streaming encoder is its custom image and text overlay capabilities, allowing you to personalize and brand your stream. In addition to the 1080P mainstream, the BG-SAVS also outputs a 720P sub stream, providing a second feed without significantly impacting network bandwidth.

The BG-SAVS encodes video signals at H.265/H.264, and its output formats include RTSP, RTP, RTMPS, HTTP, UDP, SRT, unicast, and multicast. It features 1 x SDI input and 1 x SDI loop out for video, and 1 x 3.5 mm analog audio input for audio.

This innovative streaming encoder is an ideal fit for live streaming video games, distributing video over a LAN, and live streaming camera feeds. It's a popular choice among gamers, houses of worship, schools, and universities. With its crystal clear image resolutions up to 1080p@60Hz, stereo audio input for connecting mics or local audio sources, and LAN streaming interface, the BG-SAVS 1080P H.264/265 SDI Video and Audio Streaming Encoder is a reliable, efficient tool for all your streaming needs.

BZB GEAR BG-SAVS Features

  • HDMI input for your source and HDMI loop output to connect local monitor
  • 3.5 mm analog audio input to embed audio into your stream
  • Supports H.265/H.264 stream encoding at resolutions up to 1080P@60fps
  • Dual-Stream encoding (main stream and sub stream)
  • RTSP, RTP, RTMPS, RTMP, HTTP, UDP, SRT, unicast, and multicast formats
  • Image and text overlay
  • Supports image mirror and flip
  • Live stream without connecting a computer

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Achieve high video quality with H.264/H.265 encoding for pristine live streams.
  • Ensure reliable wireless connectivity using multiple network protocols like RTMP & SRT.
  • Enjoy easy setup and remote control via web configuration for seamless operation.
  • Experience low latency streaming, perfect for interactive broadcasts and events.
  • Wide compatibility: supports HDMI, audio inputs, and various encoding resolutions.
  • Streamlined encoder supports multiple platforms, ideal for diverse streaming needs.

What's in the box:

  • BZB GEAR BG-SAVS 1080P H.264/265 SDI Video and Audio Streaming Encoder
  • 12V 2A Power Supply
  • User Manual
  • BZB GEAR 3 Year Limited Warranty
