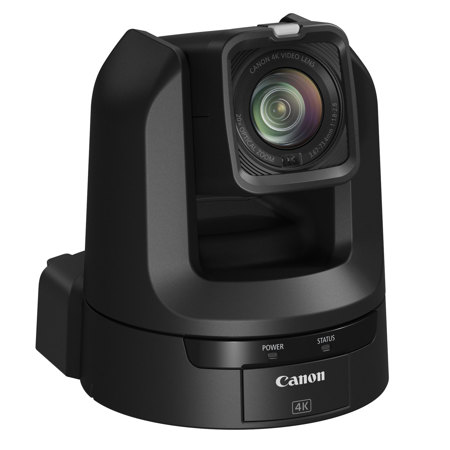

Canon CR-N300 21.1MP 4K UltraHD 20x PTZ Camera, Satin Black

SKU: CACRN300B MFR: 5157C001
Earn VIP Reward Points

Key Features

  • Capture stunning 4K Ultra HD video with the Canon PTZ camera's exceptional clarity.
  • Achieve smooth, precise camera movements with pan, tilt, and zoom functionality.
  • Use the 20x optical zoom to get closer to the action, ideal for live events.
  • Easily integrate this PTZ camera into your existing setup with multiple interfaces.
  • Enjoy flexible control options via LAN, Wi-Fi, or serial for remote operation.
  • Benefit from amazing low-light performance for clear video in various conditions.
See More Product Details
Slight Delay?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$159.99

4 Year

$191.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Learn
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?JEAN MAURICE N : Reviews , and footage show better image quality then the Sony one , and all features included from scratch ndi etc ....

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Canon CR-N300 Specifications

Camera
  • Color

    Black

  • Image Sensor

    Type 1/2.3 (1/2.3 in.) single-plate CMOS sensor
    Total pixels: approx. 21.14 megapixels
    Effective pixels: approx. 8.29 megapixels (3840 x 2160)

  • Lens

    f=3.67 - 73.4 mm, F/1.8 - 2.8, 20x optical zoom, 8-bladed circular aperture

    35mm equivalent focal length: [4K UHD] approx. 29.3 (W) - 601 mm (T)
    [Full HD] approx. 30.5 (W) - 627 mm (T)

  • Zoom

    Digital: 20x
    Optical: 20x

  • Lens Configuration

    12 elements in 10 groups (including 2 aspheric elements)

  • Minimum Focusing Distance

    1 cm (0.39 in.) at full wide angle, 60 cm (2.0 ft.) throughout the zoom range

  • Angle of View

    [4K UHD]
    Horizontal: 65.6 (W) - 3.6 Degree (T)
    Vertical: 39.8 Degree (W) - 2.0 Degree (T)

    [Full HD]
    Horizontal: 63.5 (W) - 3.4 Degree (T)
    Vertical: 38.4 Degree (W) - 1.9 Degree (T)

  • Shutter Speed

    1/6 - 1/2000 sec. (specific values depend on the frame frequency and frame rate)

  • Iris

    Manual/Automatic aperture

  • Gain

    0.0 dB - 36 dB

  • White Balance

    AUTO (AWB), Set A, Set B, preset settings (daylight: 5,600 K, tungsten lamp: 3,200 K), color temperature setting (2,000 K - 15,000 K), Manual

  • Focus

    Focus mode: Manual, Continuous AF, Face AF, Tracking AF type: Hybrid AF, Contrast AF

  • Gamma

    Normal1 (Standard), Normal3 (BT.709)

  • Image Stabilizer

    Optical-shift

  • Min. Subject Illumination

    Approx. 1.5 lux (shutter speed 1/30 sec., frame rate 59.947P (P (Programmed AE) shooting mode, auto slow shutter on)

  • Pan and Tilt

    Pan operation range: Horizontal +/-170 Degree
    Pan operation speed: 0.2 Degree - 300 Degree /sec.
    Tilt operation range: Vertical -30 Degree - +100 Degree
    Tilt operation speed: 0.2 Degree - 170 Degree /sec.

Video Output Format

Jump to...
  • SDI

    1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P (4:2:2 10 bit)
    1280 x 720: 59.94P, 50.00P (4:2:2 10 bit)

  • HDMI

    3840 x 2160: 29.97P, 25.00P, 23.98P (4:2:2 10 bit)
    1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P (4:2:2 10 bit)
    1280 x 720: 59.94P, 50.00P (4:2:2 10 bit)

  • IP

    3840 x 2160: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
    1920 x 1080: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
    1280 x 720: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
    640 x 360: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)

  • USB

    Motion JPEG:
    1920 x 1080
    59.94 Hz: 12.00 fps, 5.00 fps
    50.00 Hz: 12.50 fps, 5.00 fps

    1280 x 720
    59.94 Hz: 12.00 fps, 5.00 fps50.00 Hz: 12.50 fps, 5.00 fps

    640 x 360
    59.94 Hz: 12.00 fps, 5.00 fps
    50.00 Hz: 12.50 fps, 5.00 fps

  • Number of Presets

    Max. 100 (including home position)

Interface

Jump to...
  • Communication Control

    LAN, Wi-Fi, Serial, IR

  • Network Terminal

    LAN x 1, RJ45, 1000Base-T

  • 3G-SDI OUT Terminal

    BNC jack (output only) x 1, 0.8 Vp-p/75 Ohm, unbalanced SMPTE 424, SMPTE 425, SMPTE ST 299-2 compliant Embedded audio, Time code (VITC/LTC)

  • GEN-LOCK Terminal

    BNC jack x 1, 1.0 Vp-p/75 Ohm, input only

  • HDMI OUT Terminal

    HDMI connector x 1, output only

  • RS-422 Terminal

    RJ45 connector x 1

  • Mic Terminal

    3.5 mm stereo mini jack (unbalanced, plug-in power supported)
    Sensitivity (MIC): -72 dBV (Manual volume center, full scale -18 dB)/1 k Ohm or more/Att.: 20 dB
    Sensitivity (LINE): -10 dBV (Manual volume center, full scale -18 dB)/1 k Ohm or more
    Supply Voltage: 2.4 V DC (Bias resistance: 2.2 k Ohm)

  • USB Terminal

    Type-A (USB 2.0) x 1 (future expansion)
    Type-C (USB 3.0) x 1

  • Media Slot

    microSD card slot x 1 (future expansion, recording unavailable)

Environment

Jump to...
  • Operating Environment

    Temperature: +32 Degree F to +104 Degree F (0 Degree C to +40 Degree C)
    Humidity: 10% to 90% (without condensation)

  • Storage Environment

    Temperature: +32 Degree F to +104 Degree F (0 Degree C to +40 Degree C)
    Humidity: 10% to 90% (without condensation)

  • Power Supply

    PoE: PoE+ power supply via LAN connector (IEEE802.3at compliant) - PoE cannot be used
    External power source: 24 V DC (using included AC adapter)

  • Power Consumption

    PoE+ Input: Approx. 16.2 W max. (body only)
    DC Input: Approx. 15.0 W max. (body only)

Controllers

Jump to...
  • Supported Controllers

    Hardware: RC-IP100
    Software: Remote Camera Control Application

General

Jump to...
  • Dimensions (W x H x D)

    Approx. 6.06 x 7.01 x 6.46" (154 x 178 x 164mm) (excluding protrusions)

  • Weight

    Approx. 4.86 lbs (2.2kg) (body only)

  • UPC Code

    013803341027

Related Articles & Videos

PTZ Cameras: Everything You Need to Know

PTZ Cameras: Everything You Need to Know

PTZ (or pan, tilt, zoom) cameras offer a wealth of benefits and can be remotely controlled by camera operators or automated software.
Read more
Canon Introduces New PTZ Cameras for Streaming and Recording: CR-N500 and CR-N300

Canon Introduces New PTZ Cameras for Streaming and Recording: CR-N500 and CR-N300

Today, Canon is unveiling two new pan-tilt-zoom (PTZ) cameras: the CR-N500 and CR-N300. Perfect for everyone from corporations to houses of worship and education institutions to event businesses...
Read more

11 Accessories for Canon CR-N300 21.1MP 4K UltraHD 20x PTZ Camera, Satin Black

  • All Accessories (11)
  • Controllers (1)
  • Video Switching & Distribution (1)
  • Cables & Adapters (5)
  • Subscription & License (2)
  • Signal Converters (2)

About Canon CR-N300

Canon CR-N300.

Canon’s CR-N300 PTZ camera produces outstanding image quality and is equipped with powerful features and functions to be utilized in many industries including House of Worship, Education, Broadcast, Corporate, Events and more.

The CR-N300 PTZ produces incredible 4K and HD image quality with the combination of a 1/2.3” CMOS sensor and the DIGIC DV 6 image processor. This camera incorporates a Canon 4K lens that exhibits a 20x optical zoom ratio that maintains a high level of precision throughout the zoom range. On-air pan and tilt movement is possible thanks to the smooth and responsive pan and tilt mechanism equipped with the CR-N300.

The CR-N300 camera supports Canon’s new XC Protocol as well as Real-Time Messaging Streaming Protocol, NDI|HX Live Video Production Protocol, Standard (VISCA) Protocol and more. The CR-N300 can be controlled remotely by IP, Serial, IR, USB or wirelessly via Wi-Fi.

High Quality 4K 30P & FHD 60P Video Output.

High Quality 4K 30P & FHD 60P Video Output.

1/2.3 Type CMOS Sensor.
The CR-N300 features a Canon 1/2.3-inch 4K UHD CMOS image sensor capable of 4K UHD video capture at 30p up to 60fps in Full HD, making the PTZ camera a strong contender for professional production.

DIGIC DV 6 Image Processor.
The CR-N300 PTZ camera incorporates Canon's DIGIC DV 6 Image Processor, which is essential in providing high image quality, advanced performance and convenient operability. This advanced core technology component provides the image-processing power and speed that enables features such as 4K UHD video acquisition and precise Hybrid AF.

Hybrid AF.
The CR-N300 is equipped with "Hybrid AF". Hybrid AF is an auto focus system that combines high-precision contrast AF technology and the high-speed phase-difference AF technology to confirm auto focus from the camera. This hybrid auto focus system helps achieve auto focus faster and more reliably compared to contrast auto focus alone.

Canon 4K UHD Lens.
The CR-N300 features a 20x optical zoom lens and exhibits a wide viewing angle of 65.6 degrees** (horizontal). At the wide end, the 29.3 mm* lens is capable of capturing extensive scenes in tight shooting spaces such as indoor events for cinematic wide shots. The camera utilizes aspheric lens elements to achieve 4K image quality while minimizing various aberrations over the entire zoom range.

Furthermore, the lens structure of the CR-N300 enables real-time responsiveness in a three-dimensional space, supporting optical image stabilization, which helps keep the image capture stable by minimizing vibration.

Over Sampling HD Processing.
The full HD recording (over sampling HD processing) takes full advantage of the image information acquired by the 4K sensor to generate beautiful high-definition full HD video. This helps content creators produce stunningly detailed FHD video when utilizing the CR-N300.

High Quality 4K 30P & FHD 60P Video Output.

Smooth & Responsive Pan & Tilt Performance.

Variable Pan Speed Of .2° - 300°/second & Variable Tilt Speed of .2° - 170°/second.
The CR-N300 is equipped with the PT (Pan, Tilt) drive mechanism that can change the speed from fast to slow in incremental steps. This allows the operator to set the speeds to desired preference to allow for smooth PT movement. The CR-N300 exhibits a variable Pan speed of .2° - 300°/second and variable Tilt speed of .2° - 170°/second.

Four Scene Modes for Impressive Video.
The CR-N300 features Scene Modes that offer four preset shooting modes suitable for the desired application.

There are four types of Scene Modes: Portrait mode, which exhibits a blurred background while subject is in sharp focus, Sports mode, which enhances capture of moving objects, Low Light mode, which enhances capture of bright images even in dark places, and Spotlight mode, which enhances capture of beautiful images of spotlighted objects.

By selecting a Scene Mode, capture can be performed without having to adjust multiple settings within the Camera menu which aids a speedy setup and configuration allowing the operator to start shooting with impressive image expression.

Webcam via USB Connection.
The CR-N300 supports USB in addition to IP, SDI and HDMI. It is equipped with the specifications of UVC (Video: USB Video Class Ver. 1.1) and UAC (Audio: USB Audio Class Ver. 1.0) which are the connection standard of USB cameras and PCs. This allows video and audio output by connecting to a compatible USB device.

In addition, driver settings are not required for connection to a PC. It can also be used as a webcam by connecting to a PC with a web conferencing application installed. The CR-N300 delivers up to full HD 1920 x 1080 video for high quality web conferencing.

Easy Integration Into IP Streaming.

Easy Integration Into IP Streaming.

IP System.
In addition to SDI and HDMI connections, the CR-N300 is equipped with an RJ-45 interface purposed for IP communication, which supports high-resolution videos for distribution. The CR-N300 supports multiple protocols that can be utilized for video, audio and control. The genuine RC-IP100 controller utilizes the XC protocol to control the CR-N300. The CR-N300 can also be combined with third-party equipment for control purposes.* This IP system can contribute to an efficient and labor-saving camera operations for the field of video production, broadcasting and more.

IP Multi-Stream Support.
The CR-N300 can simultaneously distribute video to multiple protocols via IP. Simultaneous distribution is also known as multi-stream, and the CR-N300 can distribute a total of three video streams simultaneously. Furthermore, if the HDMI/SDI video output is 30 fps or less, the CR-N300 can distribute two video streams, 4K H.264 and 360P H.264, at the same time. Such IP multi-streams contribute to parallel workflows where the same video is used simultaneously in remote environments.

RTMP Streaming Protocol Supported.
The CR-N300 is capable of streaming video and audio using RTMP (Real-Time Messaging Protocol). Even high quality/large capacity video/audio files such as broadcast programs are played at the same time as distribution without waiting for the completion of download. For example, by using a live streaming service, the viewer's direct access to the distribution URL set on the camera will stream the "current video" captured by the camera. With the RTMP streaming distribution, multiple viewers can watch the program at the same time even in a remote environment

NDI|HX Live Video Production Support Protocol.
The CR-N300 supports the NDI (Network Device Interface) protocol that is well-established in the field of video production and broadcasting as the supporting RTP (Real-time Transport Protocol). The NDI protocol has been developed and led by NewTek, Inc. as a protocol that supports the workflow of live video production over an IP network. By constructing a system that uses NDI protocol-compatible devices and tools, it is possible to use video and audio resources on the network, including live video from cameras. As a result, a "live video production" workflow is created.

Standard (VISCA) Protocol.
The CR-N300 supports the Standard (VISCA) Protocol as a protocol to remotely control the camera via IP. When connecting a Standard (VISCA) Protocol compatible remote controller to the camera over IP or serial (RS-422) the camera can be operated remotely and shooting settings can be adjusted by utilizing the remote controller.

The Standard (VISCA) Protocol is widely used in video production, broadcasting and many other markets. The CR-N300 supports the standard (VISCA) protocol that is regarded as an industry standard and is suitable for operation within existing workflows.

Warranty Information

This product has a limited warranty of 36 months.

Product Documents

User Manual

Key Features

  • Capture stunning 4K Ultra HD video with the Canon PTZ camera's exceptional clarity.
  • Achieve smooth, precise camera movements with pan, tilt, and zoom functionality.
  • Use the 20x optical zoom to get closer to the action, ideal for live events.
  • Easily integrate this PTZ camera into your existing setup with multiple interfaces.
  • Enjoy flexible control options via LAN, Wi-Fi, or serial for remote operation.
  • Benefit from amazing low-light performance for clear video in various conditions.

What's in the box:

  • Canon Camera Body (Black)
  • Mounting Plate with Screw
  • Safety Wire
  • Safety Wire with Screw
  • AC Adapter
  • AC Cable
  • Infrared Remote Controller with Battery
  • Installation Guide
  • Canon 3 Year Limited Warranty
