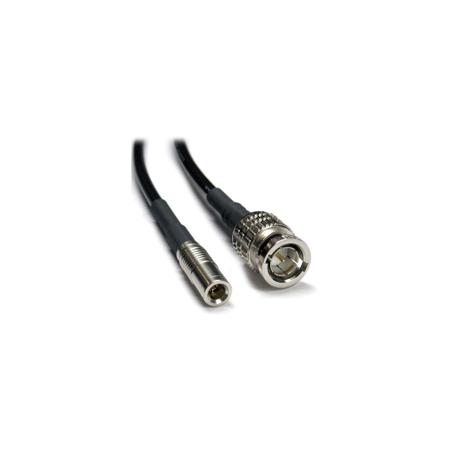

Canare L-2.5CHD 1' 3G/HD-SDI Cable with 1.0/2.3 DIN to BNC Male Connectors
See all Canare items
Closeout

Canare L-2.5CHD 1' 3G/HD-SDI Cable with 1.0/2.3 DIN to BNC Male Connectors

SKU: CAL25CHDB1 MFR: CAL2.5CHDB1
Be the first to review this itemAsk a Question
$25.00
Earn VIP Reward Points

Key Features

  • Experience pristine signal integrity with this 1' Canare 3G/HD-SDI coaxial cable, perfect for professional video.
  • This durable Canare L-2.5CHD cable features robust 75-ohm impedance for reliable data transmission.
  • Connect your professional video equipment seamlessly using the 1.0/2.3 DIN to BNC male connectors.
  • Ideal for broadcast and studio setups, this 3G/HD-SDI cable ensures high-quality video feeds.
  • Benefit from superior shielding for reduced interference, ensuring a clean signal path for your footage.
  • Trust in Canare's renowned brand reputation for a reliable and long-lasting coaxial cable solution.
See More Product Details
Free Shipping

See Options

1
Add to ListGet Sale Alert

Add Adorama Protect:

Available to U.S. customers only.
1-Year Adorama Protect$2.99
2-Year Adorama Protect$4.99
3-Year Adorama Protect$8.99

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Canare L-2.5CHD Specifications

  • Impedance

    75 +/- 3Ohms

  • Composition

    Inner Conductor: 1/0.59 A quantity/mm, 23 AWG

  • Shield Coverage

    Outer Conductors 95% or more: 0.12TA mm, 7 ends, 16 carriers

  • Conductor Resistance

    Inner: 39.95Ohms/mile (64.3Ohms/km)
    Outer: 10.5Ohms/mile (16.9Ohms/km)

  • Static Capacity

    53 nf/km at 1 kHz

  • Attenuation

    30.2 dB / 328' (100 m) at 750 MHz

  • Cable O.D.

    Nominal: 0.16" (4.2 mm)
    Insulation: 0.1" (2.59 mm)
    Inner Conductor: 0.02" (0.59 mm)

  • Maximum Transmission Distance

    1,030.18' (314m) at 143 Mbps (SMPTE 259M, Composite NTSC)
    941.6' (287m) at 177 Mbps (ITU-R BT. 601, Composite PAL)
    777.56' (237m) at 270 Mbps (SMPTE 259M, Component 4:2:2)
    675.85' (206m) at 360 Mbps (SMPTE 259M, Component 4:2:2, 16x9)
    551.18' (168m) at 540 Mbps (SMPTE 344M, SDI)
    216.53' (66m) at 1.5 Gbps (SMPTE 292M, HD-SDI)
    150.92' (46m) at 3 Gbps (SMPTE 424M, HD 1080p)

  • Nominal Attenuation

    4.1 dB / 328' (100m) at 10 MHz
    6.5 dB / 328' (100m) at 30 MHz
    9.5 dB / 328' (100m) at 72.0 MHz (SMPTE 259M, Composite NTSC)
    10.4 dB / 328' (100m) at 88.0 MHz (ITU-R BT. 601, Composite PAL)
    12.6 dB / 328' (100m) at 135 MHz (SMPTE 259M, Component 4:2:2)
    14.5 dB / 328' (100m) at 180 MHz (SMPTE 259M, Component 4:2:2 16x9)
    17.8 dB / 328' (100m) at 270 MHz (SMPTE 344M, 540 Mbps SDI)

  • Nominal Attenuation (Cont.)

    22.9 dB / 328' (100m) at 440 MHz
    30.2 dB / 328' (100m) at 750 MHz (SMPTE 292M, HD-SDI)
    40 dB / 328' (100m) at 1.3 GHz
    43.1 dB / 328' (100m) at 1.5 GHz (SMPTE 424M, HD 1080p)
    55.1 dB / 328' (100m) at 2.4 GHz
    62 dB / 328' (100m) at 3 GHz

  • Length

    1' (0.30m)

About Canare L-2.5CHD

Canare's variety of 75 ohm coaxial cables support full-range of video formats. Our cutting-edge Supper Low Loss Coax and Low Loss Coax are ideal for 3G-SDI / HD-SDI distribution.

Canare L-2.5CHD Features

  • HD-Serial Digital Video
  • Satellite Head Ends
  • HDTV Upgrades
  • Broadband Facilities
  • SMPTE 259M, 292M,424M
  • Best suited to 3G-SDI / HD-SDI transmission
  • Highly-foamed PE insulation allows further improvement in the attenuation characteristics
  • Multi-layer insulation in which to each layer is given a different foaming ratio is used to increase strength
  • Tinned copper braid with aluminum foil brings excellent shielding
  • L-2.5CHD is ideal for internal rack wiring
  • Flame resistance UL 1666 Riser

Warranty Information

This product has a limited warranty of 12 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Experience pristine signal integrity with this 1' Canare 3G/HD-SDI coaxial cable, perfect for professional video.
  • This durable Canare L-2.5CHD cable features robust 75-ohm impedance for reliable data transmission.
  • Connect your professional video equipment seamlessly using the 1.0/2.3 DIN to BNC male connectors.
  • Ideal for broadcast and studio setups, this 3G/HD-SDI cable ensures high-quality video feeds.
  • Benefit from superior shielding for reduced interference, ensuring a clean signal path for your footage.
  • Trust in Canare's renowned brand reputation for a reliable and long-lasting coaxial cable solution.

What's in the box:

  • Canare L-2.5CHD 1' 3G/HD-SDI Cable
  • Canare 1 Year Limited Warranty
