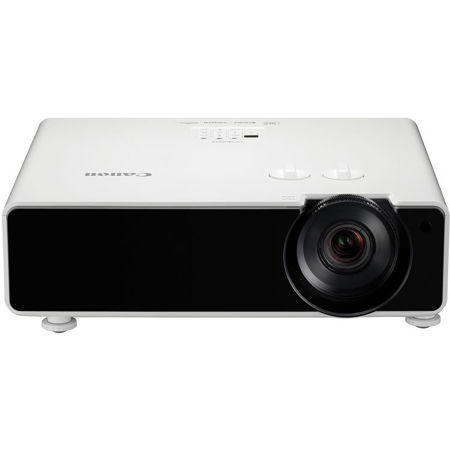

Canon LX-MH502Z 4K UHD Multimedia Laser DLP Projector, 3840x2160, 5000 Lumen, White

The LX-MH502Z projector combines long-lasting laser projection with 4K UHD (3840 x 2160) resolution and 5000 lumens of brightness for compelling image quality that will help keep your audiences engaged. Ideal for a variety of fields and applications, the LX-MH502Z projector delivers convenience and high performance for education, corporate and more. Whether used in classrooms, lecture halls, conference rooms or digital signage, the projector can help bring your content to life.

Laser Projection for Simplified Maintenance
The laser light source offers a long projection life of up to 20,000 hours, making it both dependable and durable. Because there are no lamps or filters to replace, the LX-MH502Z can run continuously and virtually maintenance-free. Easy to power on and off quickly, the projector also offers excellent operability.

High-resolution & High Brightness Image Quality
Featuring 3840 x 2160 4K UHD resolution, the LX-MH502Z provides big-screen projection of up to 300 diagonal inches. Combined with 5000 lumens and a high 50,000:1 contrast ratio, the projector delivers a clear and bright image, even in challenging environments. To help maximize image quality and match the projected content, a range of Preset Image Modes are provided, including Standard, Presentation, sRGB, Cinema, DICOM Simulation and two customizable user modes.

Flexible Installation
With its compact and lightweight design, the LX-MH502Z offers highly flexible installation. Its generous lens shift (+/-60% vertical, +/-23% horizontal) and wide throw ratio of 1.36 - 2.18:1 also ensure convenience whether the projector is placed in classrooms or conference halls. 360 deg. positioning means landscape and portrait orientations are possible, which is ideal for digital signage in retail outlets and museums.

The LX-MH502Z also provides versatile connectivity with a variety of inputs. Dual HDMI ports are available, as well as HDBaseT which helps simplify your connections with non-compressed HD video, audio and control signals that can be transmitted utilizing a single Ethernet cable over long distances of up to 328 feet. The projector is also compatible with Crestron RoomView and AMX Device Discovery, which helps users minimize downtime and maximize productivity.

4K UHD Resolution (3840 x 2160)
With 4K content and 4K-compatible devices now widely available, the LX-MH502Z brings the action to life with over 8 million pixels of ultra high definition, which is four times the detail of Full HD. This is achieved through 4-way shift technology, which splits a single pixel into four sub pixels, quadrupling the resolution - and the detail - for a richer and truer image quality.

5000 Lumens and 50,000:1 Contrast Ratio Deliver Bright, Engaging Images
This projector delivers bright 5000 lumen images with a 50,000:1 contrast ratio that helps ensure deep blacks, bright whites and excellent color. They feature clear depth and dimension and good color accuracy, which is important to those with discerning needs.

Laser Light Source Provides Longevity, Versatile Installation and a Wide Color Range
The projector's laser light source provides up to 20,000 hours in standard use of continuous, reliable, high-quality projection. Operation is virtually maintenance-free with minimal downtime, as the light source doesn't require routine replacement. This keeps running costs relatively low when looking at the total life of the product - a key consideration for challenging and hard-to-reach installations. Other advantages of the laser light source include installation flexibility and more.

360 deg. Projection
Because this projector uses a laser light source instead of a conventional lamp, it can be installed at any angle on a 360 deg. axis facing in any direction.

Wider Color Gamut
Because the laser light source produces a wide range of colors, the projector covers the sRGB color space to deliver millions of colors.

1-chip DLP Technology
This projector utilizes Single-chip Digital Light Processing (DLP) technology which is a widely utilized projection technology that creates bright and lifelike images. The DLP technology utilizes a color wheel along with a reflective Digital Micromirror Device (DMD) to produce video and images with high brightness. The resulting high-resolution video and images maintain the details inherent in what you are showing.

Multiple Image Modes including DICOM Simulation Mode for Optimal image quality reproduction
The projector includes Preset Image Modes and additional customizable Image Modes to suit a wide range of user preferences and projection environments.

Multiple Image Modes
Image Modes provide different variations of color reproduction characteristics suitable for the image type and projection environment. They include

Standard
Ideal for bright rooms and when using content from computer screens or motion picture content.

Presentation
Ideal for somewhat bright rooms when text needs to be clear, such as when part of a video presentation.

sRGB
Ideal for projecting images from sRGB-supported digital cameras.

Cinema
Ideal for viewing theatrical image content in a room without lighting.

2 Customizable Modes
Ideal for custom set-ups. Provides up to 2 user-selected combinations of image quality settings that can be stored in the memory and selected as an image mode.

DICOM Simulation Mode
Ideal for displaying medical images in non-diagnostic settings.

Advanced Adjustment Options for Customizable Image Characteristics
The projector offers extensive image quality adjustments to help users customize the image to meet their specific projection needs.

Image Adjustments
The Image Adjustment settings allow users to customize the image and color characteristics to fulfill their specific imaging needs. These include

• Brightness
• Contrast
• Sharpness
• Gamma
• Color Adjustments - Tint, Color Temperature, Screen Color

Advanced Image Adjustments These adjustments provide greater flexibility to professional users with more options to adjust the image as desired. These settings include

6-Axis Color Adjust
This technology lets users fine-tune the hue and saturation of each of the primary and secondary colors, providing a high degree of control that can make each projected image a "masterpiece".

Installation Versatility with Lens Shift and More Install-Friendly Functions

Lens Shift
Manual vertical (+/-60%) and horizontal (+/-23%) lens shift allow for adjustment of the image with virtually no distortion.

Omnidirectional Projection
Omnidirectional projection allows the projector to be positioned anywhere on the vertical axis. Fan speed can also be adjusted to help optimize results (depending on projector positioning).

Screen Color Correction
Enables users to fine-tune the colors of images based on the color of the projection surface. Adjustments can be made from Normal and Greenboard, as well as additional tuning for projecting onto virtually any other colored surface.

Versatile Connectivity - HDBaseT, Dual HDMI, Component USB Type A, RJ-45, RS-232 and Audio Inputs
Connections include: two HDMI inputs and a LAN connection terminal which relays data to a built-in HDBaseT receiver for transmission of video and audio signals from a source device. Industry-standard control and networking inputs include a network-ready RJ-45 port enabling authorized users to manage and control multiple projectors from any PC on a network, an RS-232 serial connection for monitoring the projector locally through a third-party control system, a USB Type A port for power output and a USB mini B port for easy installation of firmware upgrades.

Network Management including Compatibility with Crestron RoomView and AMX Device Discovery
Compatibility with Crestron RoomView and AMX Device Discovery helps ensure seamless integration into many systems or infrastructures and smooth network management.
