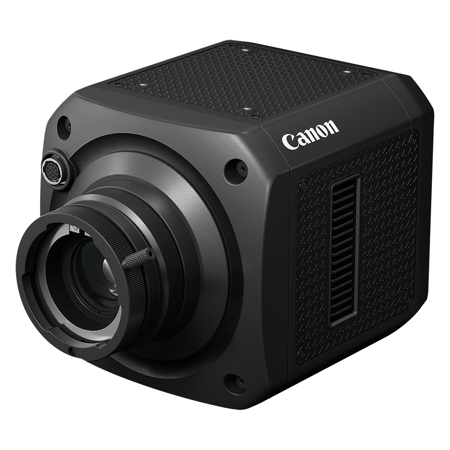

Canon MS-510 Multi-Purpose Low-Light Camera
SKU: CA9916B001 MFR: 9916B001
Earn VIP Reward PointsKey Features
- Long-range ultra-high-sensitivity low-light camera
- B4 mount that supports Canon's lineup of ultra-telephoto 2/3-inch broadcast zoom lenses
- Custom Picture Preset optimizes resolution and contrast while suppressing image noise
- Full color Infrared shooting (Night Mode)
- RS-422 serial remote control interface
Pre Order Now?
Free Expedited Shipping
See Options
1
Need help? Ask our experts.
Overview
Compare
Specs
Protection
About Canon MS-510

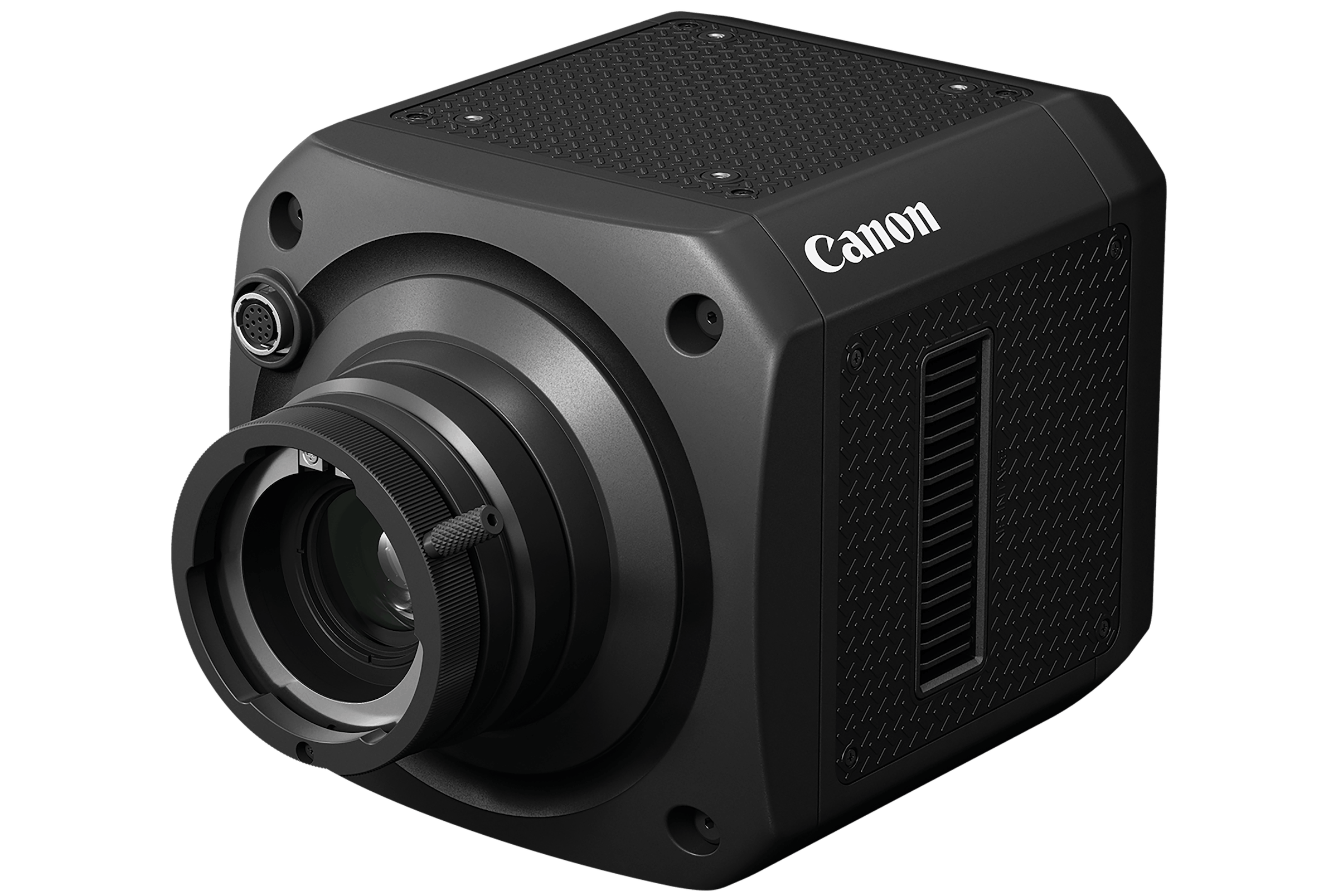

The MS-510 is an advanced long-range low-light camera from Canon, which was developed for viewing remote objects at distance of several miles in color – day or night. It is equipped with the ultra-high-sensitivity Single-Photon Avalanche Diode (SPAD) sensor and the B4 mount that can support Canon broadcast lenses, enabling capture of long-range objects even in low light.
Innovative Ultra-High-Sensitivity SPAD Sensor
The MS-510 camera’s SPAD sensor captures the brightness of a subject by digitally counting each incoming light particle (photon) through a method called photon counting, which is completely different from the conventional CMOS sensor.
Camera & Lens Control

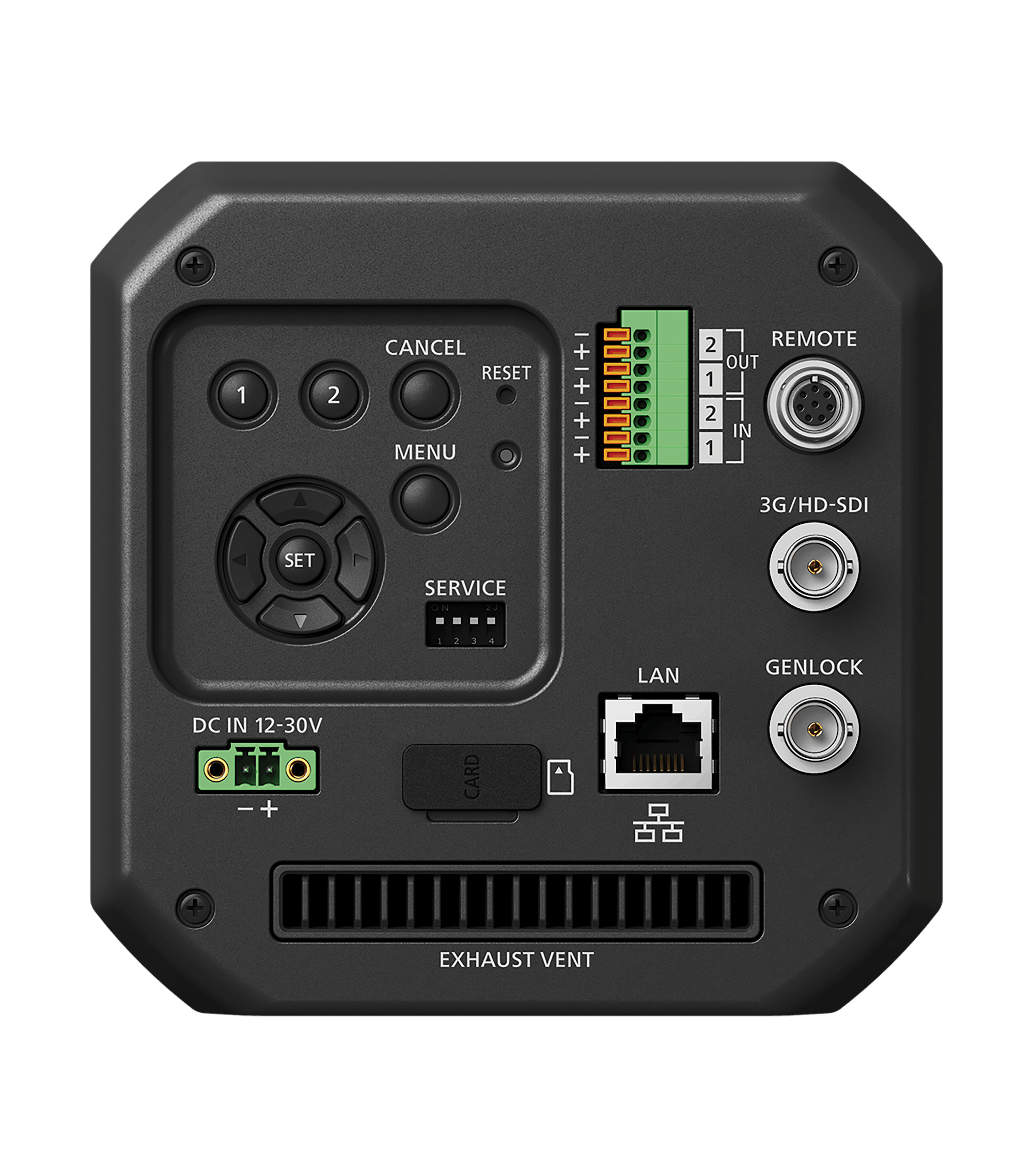

The MS-510 camera is equipped with an Ethernet port that can be used to remotely control the camera, the lens and the pan-tilt head control using NU, Pelco-DTM or ONVIFTM and access its video output over IP.
Serial communication is also available. Remote operation allows for more subtle manipulations and fine adjustments when shooting at a long distance with an ultra-telephoto lens with a very narrow angle of view, rather than operating directly with a camera button or lens ring.

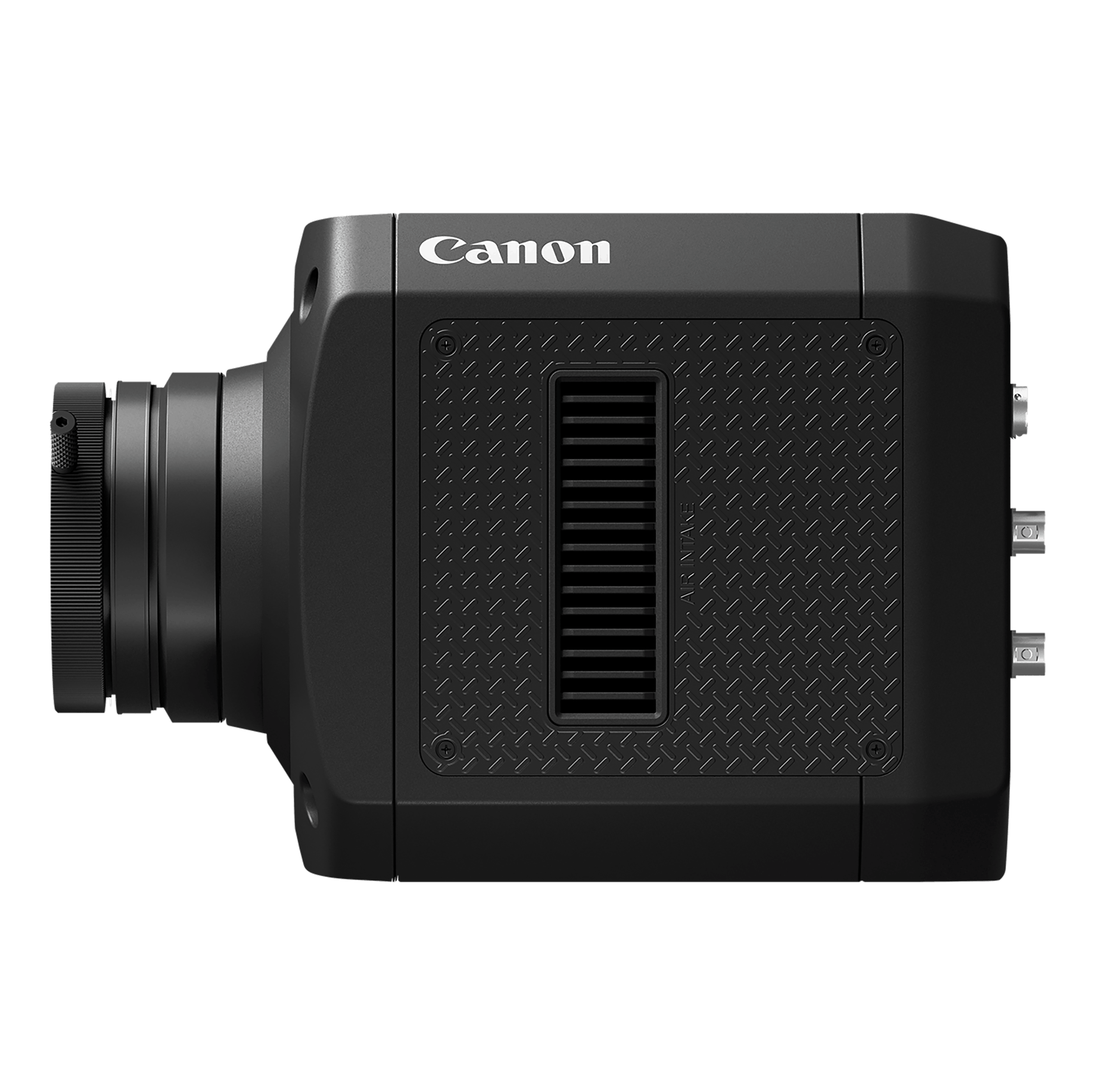

Broadcast Lens B4 Mount & Built-in Magnifying Optical System
Featuring Broadcast Industry standard B4 mount, the SPAD sensor is able to take advantage of Canon’s extensive lineup of broadcast lenses. Since most broadcast lens optics are designed for 2/3” sensors, the camera has a built-in magnifying optical system that matches the built-in 1-inch sensor, allowing the lens to be attached directly to the camera mount for shooting without cropping the sensor pixels.
Canon MS-510 Camera Features:
- Long-range ultra-high-sensitivity low-light camera
- Features the Canon-designed and developed 1" Single-Photon Avalanche Diode (SPAD) Sensor with approx. 3.2 million pixels
- B4 mount that supports Canon's lineup of ultra-telephoto 2/3-inch broadcast zoom lenses
- Custom Picture Preset optimizes resolution and contrast while suppressing image noise
- Custom Picture Mode allows users to create up to 20 customized image quality settings for various shooting conditions
Warranty Information
This product has a limited warranty of 12 months.
