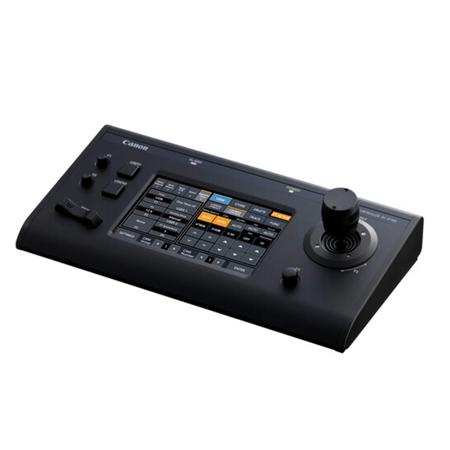

Canon RC-IP100 Remote Camera Controller

SKU: CARCIP100 MFR: 5231C004
Earn VIP Reward Points

Key Features

  • Control up to 100 Canon PTZ cameras via IP with this remote camera controller.
  • Enjoy seamless camera operation using the user-friendly 7" touch panel display.
  • Store and recall up to 100 presets per camera for dynamic, efficient workflow.
  • Utilize the LAN port for reliable connectivity, ensuring stable remote control sessions.
  • RS422 serial support offers legacy control options for older camera systems.
  • Compact and durable design ensures long-lasting performance in any studio setup.
See More Product Details
Temporarily On Backorder?Expected Availability: 09/2025Request assistance or get notified
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$99.99

3 Year

$159.99

4 Year

$191.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Learn
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?PETER K : Works well with Canon PTZ Cameras

Reviews about this item

Review Summary

2025-06-10T20:00:00

Rated 1 out of 5

Avoid at all costs

Do not buy this- save yourself the headache, and get the IP-1000 if you can afford it. If not, I strongly advise avoiding the Canon PTZ system altogether. We purchased this controller to go with our 4x CR-N500's. We are using this in a television studio, and it has been nothing but disappointing. Our issues are entirely with the touch interface- I don't know who thought this would be an acceptable way to control PTZ cameras, but they must have little to no experience working in a professional studio/broadcast setting. During a production, camera operators need to be looking at their shots, not at the controller to ensure they hit the right button! Physical buttons are a MUST, and Canon clearly realized this at some point, because they now offer the IP-1000, which has physical buttons like every other PTZ controller on the market. (That model does, however, cost DOUBLE what similar controllers from Panasonic and others go for) I am a lifelong Canon user, and pushed hard to have my studio purchase $20k in Canon PTZ's when we upgraded. At that time (Summer 2023) this was the only controller Canon offered for their PTZ cameras. Within 6 months of our purchase, the new IP-1000 controller was brought to market. We would have gladly purchased that unit (despite it being 5x the cost) had we not already spent the $1000 on this useless controller.

Pdews

2025-05-30T20:00:00

Rated 1 out of 5

Super disappointing.

I was going to leave two stars, but honestly. Canon should refund everyone who purchased one of these in the last decade. Where to begin: 1. It doesn't have an HDMI out, or any video switching capabilities, it is purely a PTZ controller (yes, the same functionality you can do FOR FREE with a stream deck and the web interface on each camera. It really is an overprice and extremely limited joystick. 2. Huge disadvantage. There's a "trace" button. Basically, you can record a cameras movement and play it back, but when you do, it freezes the interface. You can't switch to another camera, you can't start planning your next move, you either cancel the "trace" playback to get back operation or wait until it finishes. What moron thought of this? I mean, it actually behaves like a PC from 1994. 3. To change cameras you have to touch a tiny section of the screen, half the time it doesn't register, but this means that you also have to look down every single time you want to change cameras or run a preset. 4. No other video output options. This doesn't even have an NDI passthru so you can toggle the cameras through the device. It doesn't even have an output if you want to view the device on a larger screen. It is a huge waste of money. You are better off buying another camera using VDMX and a stream deck with a playstation controller to do the same exact thing (but you'll get more functionality out of the playstation controller). This is a disappointment and canon should be ashamed.

CJTech

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Canon RC-IP100 Specifications

  • Touch Panel

    7"(diagonal) touch screen

  • Controller Supported Cameras

    CR-N500, CR-N300 (IP)

  • Number of Connectable Cameras

    1 unit (RS422)
    100 units

  • Preset (Store/Play/Delete)

    100 per camera (CR-N500, CR-N300)

  • Trace (Store/Play/Delete)

    10 per camera (CR-N500, CR-N300)

  • Communication System

    IPv4

  • Tally

    D-Sub 9 pin

  • LAN

    R -45 x 1 (10 BASE-T/100 BASE-TX)

  • Serial

    RJ-45 x 1 (RS422)

  • Power

    12V DC (AC adapter power supply)

  • Operating Temperature

    0 Degree C - 40 Degree C

  • Dimensions (W x H x D)

    13.8 x 7.2 x 4.3" (350 x 182 x 110mm)

  • Weight

    4.6 lbs (2.1kg)

  • UPC Code

    013803345261

Related Articles & Videos

Canon Introduces New PTZ Cameras for Streaming and Recording: CR-N500 and CR-N300

Canon Introduces New PTZ Cameras for Streaming and Recording: CR-N500 and CR-N300

Today, Canon is unveiling two new pan-tilt-zoom (PTZ) cameras: the CR-N500 and CR-N300. Perfect for everyone from corporations to houses of worship and education institutions to event businesses...
Read more

About Canon RC-IP100

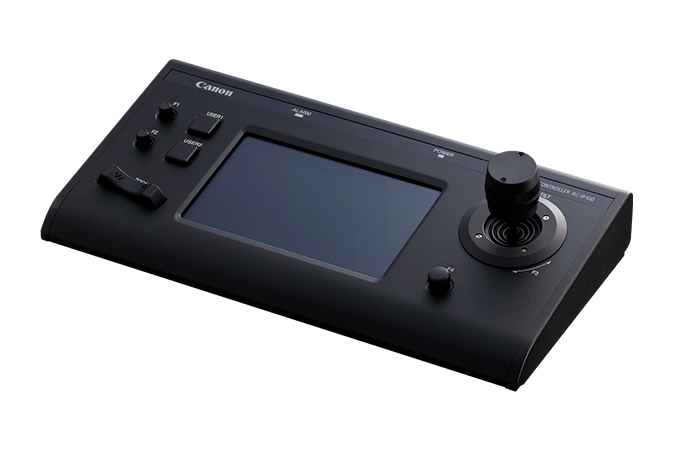

Canon RC-IP100.

Canon RC-IP100.

Canon’s RC-IP100 controller provides IP control for up to 99 supported Canon cameras. Additionally, through the serial port, the RC-IP100 can control one compatible Canon camera via the NU protocol. The controller is equipped with a large 7” diagonal touch screen, zoom lever and joystick in order to pan, tilt, zoom and change camera picture settings with precise precision. The smooth responsiveness of the joystick allows operators to capture on-air movements with confidence. Pair this controller with a supported Canon PTZ camera to create the ideal camera/controller combination into your video production.

Control Up To 100 Supported Canon Cameras.

Control Up To 100 Supported Canon Cameras.

The RC-IP100 controller provides IP control for 99 supported Canon PTZ cameras utilizing Canon’s new XC protocol. Additionally, through the serial port, the CR-X500 and other legacy Canon PTZ cameras that support the NU protocol can be simultaneously controlled.

Smooth PTZ Movement & Precise Control For Professional Productions.
It’s easy to achieve smooth PTZ movements with the accuracy and precise responsiveness of the joystick equipped on the RC-IP100. Camera operators could be confident when making on-air movements with the responsiveness of the controller – creating an effective video production.

Adjust Pan, Tilt, Zoom & Change Camera Function Settings Remotely.
Control, adjust and set Pan, Tilt, and Zoom functions smoothly, register up to 100 presets per camera, and manage trace movement, picture quality settings and much more with the advanced RC-IP100. The trace function can store camera movements for instant recall with a push of a button. Furthermore, the controller covers a wide range of functionality and customization and is a superb option for supported Canon PTZ cameras.

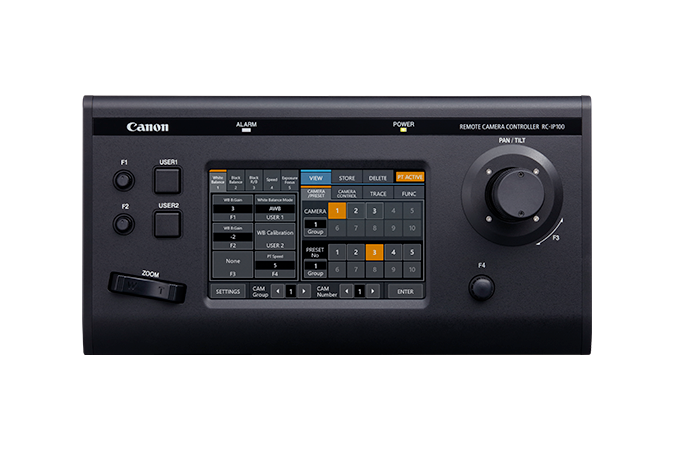

Equipped with 7” Diagonal Touch Screen, Control & Zoom Lever & 4 Customizable Buttons.
The RC-IP100 Controller is equipped with a control lever, zoom lever and 7” LCD touch panel GUI for intuitive operation. There are also 2 User and 4 Function buttons that are programmable for even more customization.

Warranty Information

This product has a limited warranty of 12 months.

Product Documents

User Manual

Key Features

  • Control up to 100 Canon PTZ cameras via IP with this remote camera controller.
  • Enjoy seamless camera operation using the user-friendly 7" touch panel display.
  • Store and recall up to 100 presets per camera for dynamic, efficient workflow.
  • Utilize the LAN port for reliable connectivity, ensuring stable remote control sessions.
  • RS422 serial support offers legacy control options for older camera systems.
  • Compact and durable design ensures long-lasting performance in any studio setup.

What's in the box:

  • Canon RC-IP100 Remote Camera Controller
  • AC Adapter
  • AC Cable
  • Printed Documents
  • Canon 1 Year Limited Warranty
