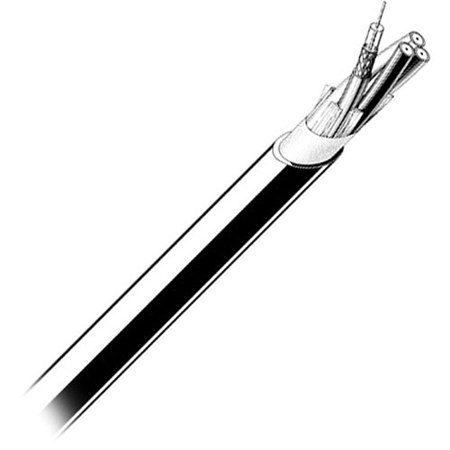

Canare 3 Channel 31 AWG 75 Ohm Video Coaxial Cable, 100m

SKU: CAV315C1M MFR: V3-1.5C 100M
Earn VIP Reward Points

Key Features

  • Experience superior signal quality with this Canare 75 Ohm coaxial cable for pristine video.
  • This 100m coaxial cable ensures reliable connections for your component video setups at home.
  • Enjoy durable, shielded coaxial cable, designed to minimize interference and maximize performance.
  • Perfect for analog video, this 3-channel coaxial cable supports vibrant, clear picture quality.
  • With a >94% shielded coverage, this coaxial cable provides exceptional protection from signal loss.
  • Get optimal performance with our 31 AWG coaxial cable, offering excellent structural return loss.
See More Product Details
Special Order?Estimated to Ship: 08/08/2025
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

1 Year

$29.99

2 Year

$49.99

3 Year

$59.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Canare 3 Channel 31 AWG 75 Ohm Video Coaxial Cable, 100m Specifications

  • Nominal Impedance

    75 Ohms

  • Number of Channels

    3Ch (RED, GRN, BLU)

  • Velocity of Propagation

    66%

  • Structural Return Loss

    > 20dB to 2GHz

  • Shield Material Coverage

    > 94 %

  • Nominal Outer Diameter

    0.291" (7.3 mm)

  • Color

    Black

  • Conductor Size (AWG)

    31

  • Jacket Type

    PVC

  • Shielded

    Yes

  • Analog

    Yes

  • Coax

    Yes

  • Component Video

    Yes

  • Dielectric Insulation Type

    Foam PE

  • PVC Jacket Thickness

    0.032" (0.81 mm)

  • Cable Length

    100m (328 ft)

  • Product Weight

    7.26 kg (16 lbs)

Models
Canare 3 Channel 31 AWG 75 Ohm Video Coaxial Cable, 100m
$265.00

$291.50

Save:$26.50 (9%)

Special Order

Generally ships in 7-14 days, subject to availability

Canare L-5.5CUHD 200' 12G-SDI 4K UHD Single-Ch Digital Video Coaxial BNC Cable
$261.00

Special Order

Generally ships in 7-14 days, subject to availability

Canare L-4CFB 984' 75Ohms RG59 HD-SDI Coaxial Cable Roll, 20 AWG, Blue
$299.95

Special Order

Generally ships in 7-14 days, subject to availability

TypeCableCableCable
Length328' (100m)200' (61m)984' (300m)
Connector TypeBulk UnterminatedBNC to BNCBulk Unterminated
Cable Gender-Male to Male-
SDI (SMPTE) Standards-12G (ST-2082)-

About Canare 3 Channel 31 AWG 75 Ohm Video Coaxial Cable, 100m

Micro coax, 31AWG, Canare Ultra-Mini V-Series offers excellent flexibility and reduced overall jacket OD. Specifically designed for very short run RGB fan-out cables, where robust pulling strength and high bandwidth is not a key factor. Terminate with Canare's 75 Ohm BNC Plug BCP-C1 (Features a Solder Pin and Crimp Sleeve) or HD15 VGA connector.

Canare 3 Channel 31 AWG 75 Ohm Video Coaxial Cable, 100m Features

  • Structural Return Loss >=20dB to 2GHz
  • Flexible Center Conductor
  • Channel ID Colors
  • Special Jacket Fillers
  • Dielectric strips away clean from Conductor
  • 2.2 ns. Differential Delay
  • Applicable in component analog video, video projectors, video walls, studio tie lines and CG/CAD workstations

Warranty Information

This product has a limited warranty of 12 months.
