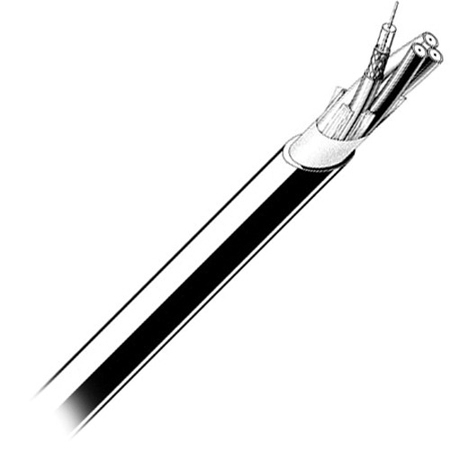

Canare 3 Channel 22 AWG 75 Ohm Video Coaxial Cable, 200m

SKU: CAV35C200M MFR: V3-5C 200M
Earn VIP Reward Points

Key Features

  • Experience superior signal quality with this 75 Ohm coaxial cable, perfect for video applications.
  • Enjoy extended use thanks to the durable design of this 200m Canare coaxial cable.
  • This multi-channel coaxial cable supports red, green, and blue signals, simplifying connections.
  • Minimize signal loss with our high-shielding coaxial cable, ensuring optimal performance.
  • Get reliable data transmissions using our 22 AWG coaxial cable, designed for consistent quality.
  • This Canare coaxial cable offers excellent return loss, maintaining signal integrity up to 2 GHz.
See More Product Details
Special Order?Estimated to Ship: 09/07/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Canare 3 Channel 22 AWG 75 Ohm Video Coaxial Cable, 200m Specifications

  • Nominal Impedance

    75 Ohms

  • Nominal Impedance

    75 Ohms

  • Number of Channels

    3

  • Channel Color

    Red, green, & blue

  • Nominal Outer Diameter

    0.611" (15.5mm)

  • Channel Outer Diameter

    0.237" (6 mm)

  • Conductor Outer Diameter

    0.031" (0.78 mm)

  • Insulation Outer Diameter

    0.189" (4.8 mm)

  • Channel Jacket Nominal Thickness

    0.047" (1.20 mm)

  • Brittle Point

    -22 Degree F (-30 Degree C)

  • Conductor AWG

    22 (7/10.24) (Quantity/mm)

  • Dielectric Insulation Type

    Foam PE

  • Dielectric Strength

    1000 VAC/min

  • Shield Material Coverage

    >94%

  • Conductor D.C.R.

    <5.1

  • Shield D.C.R

    <1.2

  • Nominal Mutual Capacitance

    67

  • Differential Delay

    <2.2

  • Velocity of Propagation

    66%

  • Return Loss

    >=20 dB at 2 GHz

  • Nominal Attenuation

    At 10 MHz: 1.0 (3.4) dB
    At 50 MHz: 2.4 (7.8) dB
    At 100 MHz: 3.3 (10.8) dB
    At 150 MHz: 4 (13.2) dB
    At 200 MHz: 4.6 (15.2) dB
    At 400 MHz: 6.6 (21.5) dB
    At 700 MHz: 8.6 (28.4) dB
    At 900 MHz: 9.8 (32.3) dB
    At 1.0 GHz: 10.4 (34) dB

  • Cable Length

    200 m (656')

  • Weight

    46 kg (102 lbs)

Models
Canare 3 Channel 22 AWG 75 Ohm Video Coaxial Cable, 200m
$1,314.00

$1,445.40

Save:$131.40 (9%)

Special Order

Generally ships in 7-14 days, subject to availability

Canare A2V2-L 200m Dual Balanced Audio & Dual Video Coax Cable, 200m / 656'
$1,159.55

$1,318.40

Save:$158.85 (12%)

Special Order

Generally ships in 7-14 days, subject to availability

Canare L-5.5CUHD 300m 75 Ohms Digital Video Ultra Low Loss Coaxial Cable, Black
$924.00

Special Order

Generally ships in 7-14 days, subject to availability

TypeCableCableCable
Length656' (200m)656' (200m)984' (300m)
Connector TypeBulk UnterminatedBulk UnterminatedBulk Unterminated

About Canare 3 Channel 22 AWG 75 Ohm Video Coaxial Cable, 200m

Why settle for less when you can enhance your video system's performance with the Canare V3-5C Video Coaxial Cable Spanning an impressive 656 feet (200 meters), this robust 3 Channel 22 AWG 75 Ohm coaxial cable is expertly designed to handle long cable runs, ensuring that your RGB component analog systems maintain the highest quality over distances.

Crafted with precision, the Canare V3-5C is ideal for applications requiring wide bandwidth to deliver clear, uninterrupted signals. Its 22 AWG gauge size is optimized for signal integrity, while the 75 Ohm impedance is standardized to match the needs of professional video equipment, reducing the possibility of signal reflection and ensuring a flawless transmission.

The cable's construction is tailored for field operations where durability is not just a requirement but a necessity. Its rugged design provides exceptional cable flex strength, allowing it to withstand the rigors of on-the-go use and frequent handling without compromising signal quality. Whether you're setting up for a live event, broadcasting, or establishing a permanent installation, the Canare V3-5C offers the reliability and resilience you need.

Moreover, the Canare V3-5C's superior shielding minimizes interference from external sources, preserving the purity of your video feed even in environments with high electronic noise. This makes it an excellent choice for professional videographers, broadcast engineers, and A/V technicians who demand the best in signal transmission and quality.

In summary, the Canare V3-5C Video Coaxial Cable is not just a cable but an investment in your video system's performance. With its extended length, wide bandwidth capabilities, and exceptional durability, it stands as a top-tier choice for professionals seeking to achieve the best in video signal transmission.

Canare 3 Channel 22 AWG 75 Ohm Video Coaxial Cable, 200m Features

  • Structural Return Loss >=20dB to 2GHz
  • Flexible Center Conductor
  • Channel ID Colors
  • Special Jacket Fillers
  • Dielectric strips away clean from Conductor
  • 2.2 ns. Differential Delay
  • Applicable in component analog video, video projectors, video walls, studio tie lines and CG/CAD workstations

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Experience superior signal quality with this 75 Ohm coaxial cable, perfect for video applications.
  • Enjoy extended use thanks to the durable design of this 200m Canare coaxial cable.
  • This multi-channel coaxial cable supports red, green, and blue signals, simplifying connections.
  • Minimize signal loss with our high-shielding coaxial cable, ensuring optimal performance.
  • Get reliable data transmissions using our 22 AWG coaxial cable, designed for consistent quality.
  • This Canare coaxial cable offers excellent return loss, maintaining signal integrity up to 2 GHz.
