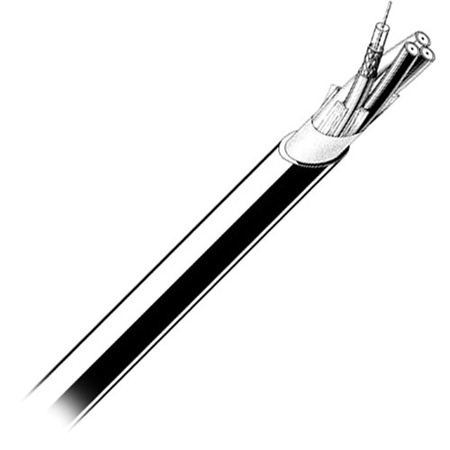

Canare 5 Channel 22 AWG 75 Ohm Video Coaxial Cable, 200m

SKU: CAV55C200M MFR: V5-5C 200M
Earn VIP Reward Points

Key Features

  • Experience pristine video with this 75 Ohm coaxial cable, perfect for HD signals.
  • This 200m Canare coaxial cable ensures minimal signal loss for superior video quality.
  • Enjoy durable and reliable connections with our high-quality shielded coaxial cable.
  • Ideal for professional A/V setups, this 5-channel coaxial cable simplifies installations.
  • Get superior signal transmission with this 22 AWG coaxial cable, built for performance.
  • With >94% shielding, this coaxial cable reduces interference for clear, crisp video.
See More Product Details
Special Order?Estimated to Ship: 08/25/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Canare 5 Channel 22 AWG 75 Ohm Video Coaxial Cable, 200m Specifications

  • Number of Channels

    5

  • Nominal Impedance

    75 Ohms

  • Nominal Outer Diameter

    0.756" (19.2mm)

  • Channel Outer Diameter

    6mm (0.237")

  • Conductor Outer Diameter

    0.78mm (0.031")

  • Insulator Outer Diameter

    4.8mm (0.189")

  • PVC Jacket Thickness

    0.055" (1.40mm)

  • Brittle Point

    -22 Degree F (-30 Degree C)

  • Conductor AWG

    22 (7/10.24)

  • Dielectric Insulation Type

    Foam PE

  • Shield Material Coverage

    >94%

  • Conductor D.C.R. ohm/1000ft (ohm/100m)

    <15.5 (<5.1)

  • Shield D.C.R. ohm/1000ft (ohm/100m)

    <3.7 (<1.2)

  • Nom. Cap. @1KHz pF/m

    21 (67)

  • Channel Diff. Delay 100ft ns.

    <2.2

  • Velocity of Propagation

    66%

  • Colors

    Red, Green, Blue, White, Yellow

  • Cable Length

    200m (656')

  • Weight

    76kg (168 lbs)

Models
Canare 5 Channel 22 AWG 75 Ohm Video Coaxial Cable, 200m
$2,020.00

$2,222.00

Save:$202.00 (9%)

Special Order

Generally ships in 7-14 days, subject to availability

Canare A3V2-FB 200m Audio Video Composite Cable

SKU: CAA3V2FB200M

MFR: A3V2-FB 200M

$1,789.00

$1,967.90

Save:$178.90 (9%)

Special Order

Generally ships in 7-14 days, subject to availability

Canare A2V2-L 200m Dual Balanced Audio & Dual Video Coax Cable, 200m / 656'
$1,159.55

$1,318.40

Save:$158.85 (12%)

Special Order

Generally ships in 7-14 days, subject to availability

TypeCableCableCable
Length656' (200m)656' (200m)656' (200m)
Connector TypeBulk UnterminatedBulk UnterminatedBulk Unterminated

About Canare 5 Channel 22 AWG 75 Ohm Video Coaxial Cable, 200m

The 5 Channel 22 AWG 75 Ohm Video Coaxial Cable, spanning a generous 200 meters, is a high-performance solution designed to enhance your audio-visual experience. This 8281F type cable is engineered to deliver superior performance for extended cable runs across wide bandwidth RGB component analog systems.

Constructed with 22 AWG (American Wire Gauge) for optimal signal strength, this coaxial cable ensures a reliable and consistent connection. It's ideal for use in both professional and home environments where high-quality video and audio transmission is required.

This robust cable is also highly recommended for field operations, where cable flexibility and maximum durability are paramount. With its sturdy construction, it can withstand the rigors of regular use and resist wear and tear, ensuring long-lasting performance.

Whether you're setting up a home theater system, professional audio-visual equipment, or a high-end surveillance system, the 5 Channel 22 AWG 75 Ohm Video Coaxial Cable is your go-to choice for a seamless and high-quality transmission.

Please note that this product description does not include warranty, price, or availability information.

Canare 5 Channel 22 AWG 75 Ohm Video Coaxial Cable, 200m Features

  • Component Analog Video
  • Video Projectors
  • Video Wall
  • Studio Tie Lines
  • CG/CAD Workstations
  • Structural Return Loss >=20dB to 2GHz
  • Flexible Center Conductor
  • Channel ID Colors
  • Special Jacket Fillers.
  • Dielectric strips away clean from Conductor.
  • 2.2 ns. Differential Delay

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Experience pristine video with this 75 Ohm coaxial cable, perfect for HD signals.
  • This 200m Canare coaxial cable ensures minimal signal loss for superior video quality.
  • Enjoy durable and reliable connections with our high-quality shielded coaxial cable.
  • Ideal for professional A/V setups, this 5-channel coaxial cable simplifies installations.
  • Get superior signal transmission with this 22 AWG coaxial cable, built for performance.
  • With >94% shielding, this coaxial cable reduces interference for clear, crisp video.
