Canon XF605 4K UHD 10-Bit Professional Camcorder

SKU: CAXF605 MFR: 5076C002
Earn VIP Reward Points

Key Features

  • Capture stunning 4K UHD video with the Canon XF605 professional camcorder for crisp, clear visuals.
  • Experience exceptional image stabilization, perfect for run-and-gun style video shoots on the move.
  • Utilize the 15x optical zoom lens to get up close and personal, ideal for documentaries and events.
  • Achieve broadcast-quality audio with 4-channel Linear PCM recording for clear, immersive sound.
  • Dual Pixel CMOS AF ensures fast, accurate focus, a must-have for interviews and dynamic scenes.
  • Enjoy versatile connectivity with 12G-SDI & HDMI, streamlining integration into any workflow.
See More Product Details

Product Options

Overview
Compare
Accessories
Learn
Specs
Protection
Q&A

Questions & Answers

Shopper : how long is the battery for Canon XF605 can record?
Shopper : Can it record 4k60p in cardA and 1080p120fps in cardB simultaneously?
KEVIN T : I currently have a Blackmagic Television Studio HD video mixer that only accepts 1080i streaming. Does the Canon XF-105 allow you to switch between 1080p and 1080i when streaming to a mixer with the SDI or HDMI out?

Reviews about this item

Review Summary

2022-06-20T20:00:00

Rated 5 out of 5

Hits the sweet spot of image quality, feature set, ease of use & price

I run a video production company focusing on creative arts and events. We shoot a wide range of music videos, live concerts, live-streaming, and some doc work. After getting started with Canon in the 5Dii generation, I've stuck with them through the years, adding 5Diii's, C100 mkII's, C200's, a C70, and our newest addition of 3 XF605's. It's one thing to shoot a doc or narrative with a cinema camera -- when you have time to truly compose the shot - including trying different lenses, adding filters, adjusting lights, etc, the C series has an intuitive feel and exceptional image quality. However these quickly lose their edge when switching to event or live-streaming duties -- changing lenses, attempting to pull focus and zoom, and ultimately having to rely more on touchscreen menus makes it tougher to make C series cameras provide good results. At first I scratched my head as to why I was 'regressing' to research at "old school" camcorders - but that didn't last long. The XF605 came out and was surprisingly affordable, had amazing 10 bit image quality, excellent optics and low light performance, and Canon's newest (and arguably best AF system. AF is a naughty world in the 'cinema' world, for obvious reasons, but in the event world, it's a game changer. For the 5% I feel like I've "lost" in image quality from my C70 (shooting 4K, 10 bit), I've gained 100% in low-light performance, efficient workflow, silky smooth zooms and a form factor that makes it simple to pull the camera out of the bag and get solid results -- time after time. I just recently shot and live-streamed a three-day music festival with a fleet of static C-series cameras, two PTZ's, a C70 as a master shot and the three XF605's as roaming cameras. The results were spectacular. The artists were extremely pleased with the quality, and the ease of use made the investment worth every penny. if you're shooting events, this camcorder is a beast. No, it's not a cinema camera.... but it has the image quality and low light performance, and delivers all the features you need for live shows and events.

Gadgetbox

2022-06-10T20:00:00

Rated 5 out of 5

Best camera purchase ever

I head up a wildlife film crew and this is our primary camera, in front of an R and XC15. It replaces an xf400, which was really good in its own right. This is a drastic increase in quality for us. Stand out features are endless. The zoom rocker mechanism is exquisitely smooth. The function and status controls make operating the camera so easy regardless of how customizable it is. CLog3 to rec709 conversion never fails to exceed my expectations. Snap on the old trusty 58 mm 500D although unsupported, autofocus works perfectly through the entire zoom range. Snap on a Raynox HP 9000EX and you've got 688 mm of jaw dropping zoom. The camera is surprisingly light and has a very long lasting battery. Freedom to stop the aperture beyond F11. Built-in time code. Unmatched focus accuracy and flexibility. Tons of button customization options. Camera remote allows touchless control at full zoom, so absolutely no camera motion. I always dreamed of owning the XF705, but it was too expensive for our small film crew. Then this came out :-)). Check out samples on our website using my handle. The lichen video close ups we're all recorded with this camera.

DallasNatureChannel

2021-08-19T20:00:00

Rated 4 out of 5

I have no more money

it was too expensive pretty alright could be better

bob3

warranty-logo

Protect your product against accidents, breakage and more!

CarePAK PLUS provided through Canon offers protection from accidental damage such as drops, spills, power surges, and more including normal wear and tear, beyond the standard warranty period.

SELECT YOUR PROTECTION PLAN:

Canon XF605 Specifications

  • Imaging Sensor

    4K Ultra High Definition

  • Power

    14.4 V DC (battery pack), 24 V DC (DC IN)

  • Video Recording System

    XF-AVC
    Compression: MPEG-4 AVC/H.264
    Color Sampling: 4:2:2 10-bit
    File Format: MXF

    Recording Modes:
    Resolution: 3840x2160 (YCC422 10-bit)
    260 Mbps Long GOP (59.94P/50.00P)
    410 Mbps Intra-frame (29.97P/25.00P/23.98P)
    160 Mbps Long GOP (29.97P/25.00P/23.98P)

  • Video Recording System (Contd.)

    Resolution: 1920x1080 (YCC422 10-bit)
    310 Mbps Intra-frame (59.94P/50.00P)
    160 Mbps Intra-frame (29.97P/25.00P/23.98P/59.94i/50.00i)
    50 Mbps Long GOP (59.94P/50.00P/29.97P/25.00P/23.98P/59.94i/50.00i)

    Resolution: 1280x720 (YCC422 10-bit)
    24 Mbps Long GOP (59.94P/50.00P)

  • Video Recording System (Contd..)

    MP4
    Compression: MP4 (HEVC): H.265/HEVC, MP4 (H.264): MPEG-4 AVC/H.264

    Color Sampling:
    MP4 (HEVC): YCC422 10-bit/YCC420 10-bit
    MP4 (H.264): YCC420 8-bit
    File Format: MP4

  • Audio Recording System

    Linear PCM: 24-bit / 48 kHz / 4-channel (XF-AVC)
    Linear PCM: 16-bit / 48 kHz / 4-channel (MP4)
    MPEG-2 AAC LC 16-bit / 48 kHz / 2-channel (MP4)

  • Image Sensor

    1" CMOS Sensor

  • Total Pixels

    Approx. 13.4 megapixels (4268x3148)

  • Effective Pixels

    Approx. 8.29 megapixels (3840x2160)

  • Lens

    Canon 15x Zoom, 8.3-124.5mm (35mm equivalent 25.5-382.5mm), f/2.8-4.5

  • Focusing System

    Dual Pixel CMOS AF w/Eye Detection

  • Manual Exposure

    Yes

  • Max Shutter Speed

    1/2000

  • Minimum Focusing Distance

    10mm at wide end, 60cm across entire zooming range

  • White Balance

    Auto, Preset (Daylight, Tungsten), Color Temperature Settings (2,000-15,000K), Set (1/2)

  • Frame Rate

    60p, 30p, 24p

  • Minimum Illumination

    Approx. 1.5 lux (with 1/30 sec. shutter speed, 29.97P)

  • Genlock Terminal

    Yes

  • Timecode Terminals

    Yes

  • Image Stabilization

    Optical system (lens shift) + electronic stabilization (Image rotation and camera movements in the yaw and pitch directions are electronically corrected.)
    Modes: Dynamic IS, Powered IS, Standard IS, IS Off

  • Filter Diameter

    58mm

  • Viewfinder

    0.36" color OLED display, approx. 1.77 million dots, approx. 100% field of view

  • LCD Screen

    3.5" LCD, (Approx. 2.76 million dots)

  • Microphone

    Stereo (using electret condenser microphone)

  • Recording Media

    SD card [x2] (SD/SDHC/SDXC)

  • USB Terminal

    Type-C, SuperSpeed USB (USB 3.2 gen 1x1) supported, PTP class supported, UVC Supported
    Type-A, USB HOST supported (max. voltage: 5V / max. output current: 900 mA)

  • Video Terminal

    HDMI connector, 12G-SDI terminal

  • Audio Terminal

    3.5mm stereo mini-jack, XLR 3-pin jack (two channels)

  • HDMI Terminal

    HDMI connector (Type A)

  • Headphone Terminal

    3.5mm stereo mini-jack

  • Operating Temperature Range

    For Performance: Approx. 0-40 Degree C, 85% (relative humidity)
    For Operation: Approx. -5-45 Degree C, 60% (relative humidity)

  • 12G-SDI

    Terminal Yes

  • Ethernet Terminal

    Ethernet connector (RJ-45) (supports 1000BASE-T)

  • Battery Info

    required, included

  • Battery Type

    lithium ion

  • Battery Quantity

    1

  • Dimensions

    Approx. 6.6 x 6.8 x 13.1" (168 x 173 x 333mm) (Body only, excluding grip belt)
    Approx. 7.9 x 8.6 x 15.2" (200 x 219 x 385mm) (Including lens hood, eyecup and mic holder unit)

  • Weight

    Approx. 4.4 lbs (2.01kg)
    (including grip belt; excluding hood, mic holder unit, eyecup, battery)

  • UPC Code

    013803340433

Related Articles & Videos

The Best 4K Video Cameras

The Best 4K Video Cameras

If you’re planning to expand your video equipment with more advanced gear, moving up to one of these best 4K cameras is one of the best decisions you can make.

In this article, we’ll help you find the best kind and mod...

Read more
The 6 Best Documentary Cameras

The 6 Best Documentary Cameras

Whether you’re working independently or with a team, filming a documentary can be tough. Documentary filmmaking requires a great deal of planning and improvisation if you want the process to go smoothly. And despite the challenges, Read more
Canon Introduces the Compact and Powerful XF605 Camcorder

Canon Introduces the Compact and Powerful XF605 Camcorder

Portability and high performance are among the many exciting perks of the new Canon XF605 Professional Camcorder. This 4K UHD professional camcorder packs a host of features into its lightweight and er...
Read more

94 Accessories for Canon XF605 4K UHD 10-Bit Professional Camcorder

  • All Accessories (94)
  • Extended Warranty (2)
  • Batteries & Power Supply (5)
  • Remote & Remote Accessories (2)
  • Monitor & Recorder (2)
  • Memory & Storage (1)
  • Zoom & Focus Control (7)
  • Flash & Lighting (52)
  • Bags & Cases (5)
  • Recorder (2)
  • Switches (2)
  • Microphones & Audio (4)
  • Headphones (1)
  • Cables & Adapters (4)
  • Filters (1)
  • Lenses (2)
  • Microphones (2)
Models
Canon XF605 4K UHD 10-Bit Professional Camcorder
$4,499.00

$5,049.00

Save:$550.00 (11%)

In Stock

Canon EOS R5 C Mirrorless Digital Cinema Camera w/RF 24-105mm f/4 L IS USM Lens
$4,599.00

$5,099.00

Save:$500.00 (10%)

In Stock

Canon EOS C70 Digital Camera Body, RF Mount
$4,399.00

$4,799.00

Save:$400.00 (8%)

In Stock

Special FeaturesTouchscreen LCD3.5mm Mic Input, Interchangeable Lens, Touch Screen LCD3.5mm Mic Input, Built-In Microphone, Interchangeable Lens
Resolution-8K4K
Kit StyleBaseBaseBase
ConfigurationCamcorder OnlyBody & LensBody Only
Sensor TypeCMOSCMOSCMOS
Sensor Size1"Full FrameSuper 35mm
Lens Included15x Zoom24-105mm f/4 LensWithout Lens
Lens Mount-Canon RF MountCanon RF Mount

About Canon XF605

FEATURED REVIEWS

Hits the sweet spot of image quality, feature set, ease of use & price

By Gadgetbox

I run a video production company focusing on creative arts and events. We shoot a wide range of music videos, live concerts, live-streaming, and some doc work. After getting started with Canon in the 5Dii generation, I've stuck with them through the years, adding 5Diii's, C100 mkII's, C200's, a C70, and our newest addition of 3 XF605's. It's one thing to shoot a doc or narrative with a cinema camera -- when you have time to truly compose the shot - including trying different lenses, addi...

View full Review

Best camera purchase ever

By DallasNatureChannel

I head up a wildlife film crew and this is our primary camera, in front of an R and XC15. It replaces an xf400, which was really good in its own right. This is a drastic increase in quality for us. Stand out features are endless. The zoom rocker mechanism is exquisitely smooth. The function and status controls make operating the camera so easy regardless of how customizable it is. CLog3 to rec709 conversion never fails to exceed my expectations. Snap on the old trusty 58 mm 500D although...

View full Review

Canon XF605 Pro Camcorder.

Canon XF605 Pro Camcorder.

The XF605 Professional Camcorder is the next-generation XF-series camera providing excellent mobility, connectivity, and superb 4K UHD HDR image quality. Equipped with Canon’s renowned Dual Pixel CMOS AF, the XF605 achieves high-speed and high-accuracy focusing, and is the first XF-series model to include Eye Detection AF, as well as iTR AF X technology for improved face and head detection for more accurate and stable tracking of subjects.

Versatile Functions, Simplified Post.

Versatile Functions, Simplified Post.

The XF605 features a 4K L-series 15x Optical Zoom lens with 3-ring manual control. XF605 can shoot 10-bit 4:2:2 4K UHD footage in XF-AVC and MP4 formats to dual SD cards for easy post-production and quick delivery. It features multiple recording modes including Frame, Interval, and Slow and Fast motion up to 120fps in FHD.

The Pro Camcorder, Modernized.

The Pro Camcorder, Modernized.

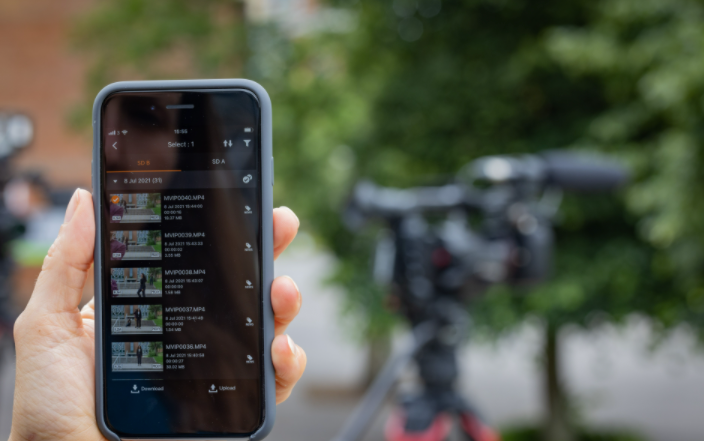

An ideal tool for news gathering, XF605 features a new CTM (Content Transfer Mobile) iPhone application which allows for proxy footage, audio, and metadata to be exchanged between a newsroom server through the phone connection in the field and integrates into newsroom assignment planning software.

Brilliant Video Capture, In Any Environment.

Brilliant Video Capture, In Any Environment.

XF605 features a Multi-Function Shoe that is compatible with a new XLR microphone adapter (developed by TEAC Corporation) for increasing the total number of XLR inputs to 4, providing a flexible audio recording workflow. The camera features built-in Wi-Fi/Ethernet for Browser Remote, CTM (Content Transfer Mobile) app, IP streaming, and FTP transfer. The camera is also the first XF-series camera to feature USB Video Class allowing use as a webcam without the need for a 3rd Party HDMI to USB adapter.

Features.

• 1.0-inch 4K UHD CMOS Sensor
• 15x Optical 4K UHD L Zoom Lens with 5-Axis Optical Image Stabilization
• 5-Axis Optical Image Stabilization
• 9-blade Iris
• Independent 3-Density ND Filter
• 4K UHD 59.94P 4:2:2 10-bit Recording
• Optional Wide and Tele Accessories
• DIGIC DV 7 Image Processor
• HDR Recording with HLG/PQ Shooting Assist
• Canon Log 3
• Wide DR Gamma (800%) Support
• Dual SD Card Slots
• Slow and Fast Motion Recording up to 120fps
• Dual Pixel CMOS AF, Eye Detection AF, EOS iTR AF X, Dual Pixel Focus Guide
• Direct Touch Control
• UVC Support (USB Video Class)
• Look File for Recording (User LUT)
• High Sensitivity Mode
• 3.5-inch Rotating Touch Panel LCD and .36-inch OLED Electronic Viewfinder
• 12G-SDI, Genlock, Time Code, and Other Terminals
• Flexible Audio Inputs with Linear PCM 4-channel Support
• Multi Function Shoe
• Live IP Streaming
• RC-V100 Remote Controller Support
• Compact, Lightweight and Ergonomic Design
• New CTM (Content Transfer Mobile) iPhone Application
• Network Connections for FTP Transfer and Browser Remote (Wired and Wi-Fi Connectivity)

Warranty Information

This product has a limited warranty of 12 months.

Product Documents

User Manual

Key Features

  • Capture stunning 4K UHD video with the Canon XF605 professional camcorder for crisp, clear visuals.
  • Experience exceptional image stabilization, perfect for run-and-gun style video shoots on the move.
  • Utilize the 15x optical zoom lens to get up close and personal, ideal for documentaries and events.
  • Achieve broadcast-quality audio with 4-channel Linear PCM recording for clear, immersive sound.
  • Dual Pixel CMOS AF ensures fast, accurate focus, a must-have for interviews and dynamic scenes.
  • Enjoy versatile connectivity with 12G-SDI & HDMI, streamlining integration into any workflow.

What's in the box:

  • Canon XF605 4K UHD 10-Bit Professional Camcorder
  • Battery Pack (BP-A30)
  • Compact AC Power Adapter (CA-CP200L)
  • Single Battery Charger (CG-A20)
  • Microphone Holder Unit with Screws
  • Eyecup
  • Lens Cap
  • Lens Hood
  • AC Cable
  • Canon 1 Year Limited Warranty
