Cinegears Ghost-Eye Wireless HDMI & SDI Video Transmission Kit

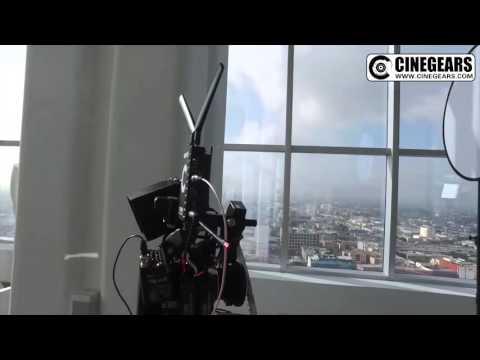

Cinegears Ghost-Eye Wireless Video Transmission Channels Setting for Multiple Receivers
Cinegears Ghost-Eye Wireless Video Transmission 150M Kit Review By DOP Chris Mckechnie
Cinegears Ghost-Eye: Picture 1 thumbnail
See all Cinegears items

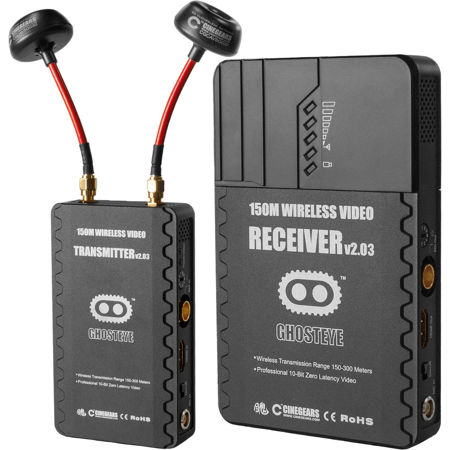

Cinegears Ghost-Eye Wireless HDMI & SDI Video Transmission Kit, Includes 150M V22.03 Video Transmitter, 150M V2.03Video Receiver

SKU: CG6155

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2017-02-15T07:32:15

Rated 5 out of 5

Amazing quality at a fantastic price point.

The Ghost Eye 150 has proved to be as good or better than the equivalent Teradek for significantly less money. It also comes with the sony L series battery plates as well a D-Tap cables for powering from larger camera batteries. Its been flawless on set.

EZRA M.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Cinegears Ghost-Eye Specifications

Transmitter

Transmitter

Jump to...

  • Interface

    SDI Input(BNC Female); HDMI Input (Type A female); 2 Antenna port(PRSMA male); DC input

  • Supply voltage range

    6.5-16.8V DC

  • Power consumption

    < 6.5 W

  • Input Video Format

    SDI:3G,HD SD-SDI(Auto/Manual-Selected): 525i, 625i, 720p 50/59.94/60, 1080i 50/59. 94/60, 1080p23.98/24/25/29.9/30/50/59.94/60; HDMI Type A: 525i, 625i, 720p 50/59.94/60, 1080i 50/59.94/60, 1080p23.98/24/25/29.9 /30/50/59.94/60; SMPTE 259/274/292/296/372/424/425;

  • Input Audio Format

    SDI embedded 2 channel 24 bit/48KHz

  • Signal Indicator

    POWER-Green; VIDEO-Yellow

  • Frequency Band

    5.1-5.9GHz,configurable with China, North American, Europe,etc

  • Modulation Mode

    OFDM 16QAM

  • Transmission Power

    <18dBm

  • Occupied Bandwidth

    40MHz

  • Temperature Range

    0 to 40 deg. C (32 to 104 deg. F)(operating condition); -20 to 60 deg. C (-4 to 140 deg. F)(Storage)

  • Compliance

    FCC; CE; RoHS

  • Transmission Range

    300m (984.24')

  • Video Processing Color Depth

    8bit;10 bit;(4:0:0);(4:2:2);(4:4:4)

  • Transmission Cross Compatibility

    Ghost-Eye 100M;150M;300M;400M

  • Time Code

    Every 10 Seconds

Receiver

Jump to...

  • Interface

    SDI Output(BNC Female); HDMI Output (Type A female); DC input

  • Supply voltage range

    6.5-16.8V DC

  • Power consumption

    < 6 W

  • Output Video Format

    SDI:3G,HD SD-SDI(Auto/Manual-Selected): 525i, 625i, 720p 50/59.94/60, 1080i 50/59.94 /60, 1080p23.98/24/25/29.9/30/50/59.94/60; HDMI Type A: 525i, 625i, 720p 50/59.94/60, 1080i 50/59.94/60, 1080p23.98/24/25/29.9 /30/50/59.94/60; SMPTE 259/274/292/296/372/424/425;

  • Output Audio

    SDI embedded 2 channel 24 bit/48KHz

  • Signal Indicator

    POWER-Green; Wireless RSSI-Blue (4 LEDs); POWER/VIDEO-Yellow

  • Frequency Band

    5.1-5.9GHz,configurable with China, North American, Europe,etc

  • Modulation Mode

    OFDM 16QAM

  • Receiver Sensitivity

    -75dBm

  • Occupied Bandwidth

    40MHz

  • Temperature Range

    0 to 40 deg. C (32 to 104 deg. F)(operating condition); -20 to 60 deg. C (-4 to 140 deg. F)(Storage)

  • Compliance

    FCC; CE; RoHS

  • Transmission Range

    300m (984.24')

  • Video Processing Color Depth

    8bit;10 bit;(4:0:0);(4:2:2);(4:4:4)

  • Transmission Cross Compatibility

    Ghost-Eye 100M;150M;300M;400M

  • Time Code

    Every 10 Seconds

General

Jump to...

  • Dimensions (LxWxH)

    Transmitter: 115 x 67 x 23mm (4.53 x 2.64 x 0.91") (without antennas)
    Receiver: 160 x 110 x 25mm (6.30 x 4.33 x 0.98")

Other

Jump to...

  • UPC Code

    610877598267

About Cinegears Ghost-Eye

FEATURED REVIEWS

Amazing quality at a fantastic price point.

By EZRA M.

The Ghost Eye 150 has proved to be as good or better than the equivalent Teradek for significantly less money. It also comes with the sony L series battery plates as well a D-Tap cables for powering from larger camera batteries. Its been flawless on set.

The Ghost-Eye 150M Wireless HDMI/SDI Transmission Suite utilizes today's most advanced wireless video transmission technology, broadcasting uncompressed 3G SDI/HDMI HD video signals with zero delay. The suite includes one transmitter and one receiver; where the transmitter provides a 3G SDI/HDMI HD input, the receiver provides 3G SDI/HDMI output. The Ghost-Eye 150M suite has 2 external stick antennas on the transmitter and 5 internal antennas inside the receiver.

The transmission suite functions in the 5.1-5.9GHz frequency band and can be flexibly configured to licensed or ISM band frequencies around the globe. The side panel of the transmitter and receiver units have a frequency selection knob that provides a maximum of 4 workable frequency channels and supports a maximum of 4 simultaneous receiver units per transmitter unit. The wireless suite can accommodate a wide range of DC power input, including many kinds of camera battery models. The suite can also sustain ~8kV ESD (HBM, contact discharge), the industry class metal case and professional heatsink design guarantees robust reliability.

Cinegears Ghost-Eye Features

  • Improved signal strength and transmission range
  • Optimized for the new frequency band
  • Additional thread holes on the bottom of the receiver and transmitter units for added mounting options
  • Improved power efficiency saves 30% on energy consumption
  • Now compatible with the Cinegears Panel Antenna
  • Comes with 2 Cinegears Cloverleaf Antennas
  • Includes 2 Free AC Adapters

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Cinegears 150M V22.03 Video Transmitter
  • 150M V2.03Video Receiver
  • 2x Paddle Antenna
  • 2x Cloverleaf Antenna
  • 2x 2-Pin Lemo Power Cable for 150M System
  • Heavy Duty Ball Joint Articulated Arm
  • 12mm-55mm Steel Mounting Clamp
  • Waterproof Foam Case for Ghost Eye 150M
  • 2x AC Power Adapters
  • Cinegears 3 Year Warranty
