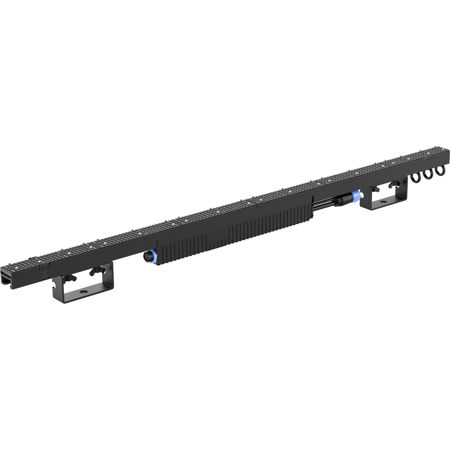

CHAUVET DJ F6 Pixel Pitch Video Panel Strip IP

SKU: CHF6STRIPIP MFR: F6STRIPIP
Earn VIP Reward Points

Key Features

  • Create stunning visual displays with the CHAUVET DJ F6 LED video panel strip.
  • Achieve vibrant colors with a 15-bit grayscale & RGB LEDs for your DJ lighting.
  • This durable IP65-rated panel is perfect for temporary outdoor DJ events and setups.
  • Easily control the video panel via Novastar for synchronized light show effects.
  • Customize your stage lighting with a wide 160° viewing angle on this video strip.
  • Quick setup with Seetronic TRUE1 power connectors for efficient DJ lighting rigs.
See More Product Details
Special Order?Estimated to Ship: 08/21/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$69.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

CHAUVET DJ F6 Strip IP Specifications

Optical

Optical

Jump to...
  • Light Source

    720 LEDs (tri-color RGB) SMD 1921, 50,000 hours life expectancy

  • Color Wavelength

    Red (615 to 630nm), Green (515 to 535nm), Blue (460 to 475nm)

  • Viewing Angle (H/V)

    160 Degree /155 Degree

  • Calibrated Illuminance

    5500 NITS

  • Maximum Illuminance

    5500 NITS

  • Contrast Ratio

    5,000: 1

  • Pixels

    144 x 5

  • Pixel Pitch

    6.9mm

  • Minimum Viewing Distance

    10' (3m)

  • Grayscale

    15 bit

  • Pixel Density

    20,736/sq.m

  • Display Refresh Rate

    5,940 Hz

Connections

Jump to...
  • Power Connection

    Edison (Local) plug to Seetronic TRUE1

  • Power Input

    Seetronic TRUE1

  • Power Output

    Seetronic TRUE1

  • Data Connectors

    Seetronic etherCON SE8FC-L

  • Cable Length

    Power: 5' (1.5m)

Control

Jump to...
  • Control Protocol

    Novastar

  • Maximum Strips/VIP Drive 83R

    0 Degree or 90 Degree orientation: 70/port, 560/Drive (8 ports)

  • Maximum Strips Wide/VIP Drive 83R

    Horizontal orientation: 26

  • Maximum Strips Tall/VIP Drive 83R

    Vertical orientation: 7

Electrical

Jump to...
  • Input Voltage

    100 to 240 VAC, 50/60 Hz (auto-ranging)

  • Power Linking

    50 units @ 120 V; 55 units @ 208 V; 60 units @ 230 V

  • Power and Current

    32 W, .265 A @ 120 V, 60 Hz
    52 W, .248 A @ 208 V, 60 Hz
    53 W, .229 A @ 230 V, 50 Hz

    Resting:
    3 W, .049 A @ 120 V, 60 Hz
    2 W, .038 A @ 208 V, 60 Hz
    2 W, .034 A @ 230 V, 50 Hz

Certifications/Qualifications

Jump to...
  • Certifications

    CE, MET, ROHS, FCC

  • IP Rating

    IP65, temporary outdoors

  • Thermal Dissipation

    @120V: 109 BTU per hour
    @ 208V: 177 BTU per hour
    @ 230V: 180 per hour

  • Operating Temperature

    -4 to 122 Degree F (-20 to 50 Degree C)

Construction/Physical

Jump to...
  • Threaded Bolt

    M12

  • Color

    Exterior: Black

  • Housing Material

    Aluminum extrusion and Aluminum die-cast

  • Maximum vertical hang

    4 Strip

  • Transparency

    0

  • Dimensions

    39.37 x 1.36 x 2.69" (1,000 x 34.5 x 68.2mm)

  • Weight

    4.85 lbs (2.2kg)

  • UPC Code

    781462219895

About CHAUVET DJ F6 Strip IP

For those seeking a versatile and robust solution for their outdoor video display needs, the F6 Pixel Pitch Video Panel Strip IP stands out as an exceptional choice. This uniquely shaped, outdoor-ready video panel boasts a precise 6.9 mm pixel pitch, providing high-definition visuals that are sure to captivate your audience.

Designed to seamlessly integrate with other video wall panels in the F-series, including the F2, F3, F4IP, and F5IP, the F6 Strip IP allows for the creation of custom configurations and designs that enhance your visual presentations. This compatibility is facilitated by the inclusion of the VIP Drive 83R video processor, which accepts HDMI, DVI, and SDI inputs directly, eliminating the need for a separate, dedicated video server.

The F6 Strip IP also utilizes the same Smart-LCT mapping software as other F-series video panels, ensuring a consistent and streamlined user experience across the range. Its elongated, die-cast housing not only makes this product one of the lightest and slimmest in its class, but also ensures its durability and strength, making it a reliable choice for outdoor use.

Running on the advanced Novastar control platform, the F6 Strip IP offers superior control and customization options. It also includes two diffusion filters, square soft white and square black stealth, providing further versatility for different lighting conditions and aesthetic preferences.

In summary, the F6 Pixel Pitch Video Panel Strip IP is a high-quality, durable, and user-friendly solution for all your outdoor video display needs. Its compatibility with other F-series panels, advanced control platform, and versatile features make it a standout choice in the market.

CHAUVET DJ F6 Strip IP Features

  • 6.9 mm pitch high resolution outdoor video strip works with the VIP Drive 83R, using the Novastar control protocol
  • High quality black body LEDs accurately reproduce video at 15 bit grayscale, operating on a customized receiver card from Novastar
  • 5000:1 contrast ratio greatly improves the video performance
  • High performance digital LED drivers deliver 5940Hz refresh rate and a clear, vibrant image
  • Intelligent, modular LED modules with dedicated memory store factory calibration, ensuring optimal image quality, color uniformity, and simplifies maintenance by making service fast and easy
  • 1,000 x 34.5 x 68.2 mm, 4.85 lb (2.2 kg) aluminum extrusion and die-cast housing makes this product among the lightest and slimmest in its class without compromising strength
  • Specialized design supports hardware for end-to-end linking/hanging and 180 Degree angling capabilities
  • Pixel pitch is maintained for 0 Degree end-to-end linking, as well as mounting next to each other, even when the filters are installed
  • Design features to prevent damage to the LEDs when handling: multiple clear, front standoffs keep the LEDs from getting damaged from impacts, and includes specialized LED board design to improve impact resistance up to 3x that of other products, and resilient led mask design to optimize image viewing angle and uniformity without exposing the LEDs t
  • Flexible mounting options include 2pcs adjustable 13mm mounting brackets on either side, as well as 1pc M12 threaded insert in the center
  • Optimized heat dissipation (convection cooled) ensures an even color across the F6 Strip IP
  • Compact power supply, designed solely for this product, increases the stability of the system
  • 2-in-1 power/data cables offer quick connection, and are IP-rated for indoor and outdoor environments
  • PowerKON and etherKON break in, break outs, and 2-in-1 linking cables available
  • 2 Diffusion filters included with the F6 Strip IP (square soft white and square black stealth)
  • VIP Drive 83R Nova required for operation
  • Quick Lock 2-in-1 power/data cables offer quick connection, are IP-rated for indoor and outdoor environments, and are available in direct linking, break in, and break out cables

Warranty Information

This product has a limited warranty of 24 months for parts and 24 months for labor.

Key Features

  • Create stunning visual displays with the CHAUVET DJ F6 LED video panel strip.
  • Achieve vibrant colors with a 15-bit grayscale & RGB LEDs for your DJ lighting.
  • This durable IP65-rated panel is perfect for temporary outdoor DJ events and setups.
  • Easily control the video panel via Novastar for synchronized light show effects.
  • Customize your stage lighting with a wide 160° viewing angle on this video strip.
  • Quick setup with Seetronic TRUE1 power connectors for efficient DJ lighting rigs.

What's in the box:

  • CHAUVET Professional F6 Pixel Pitch Video Panel Strip IP
  • Square Milky Filter
  • Black Stealth Filter
  • Quick Start Guide
  • CHAUVET Professional 2 Year Limited Warranty
