Chief JWS210 Flat Panel Single Swing Arm Wall Mount, Silver

SKU: CHJWS210S

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Chief JWS210 Specifications

  • Depth from Mounting Source

    3.38" (85mm)

  • Max Equipment Size

    Up to 45"

  • Adjustments

    180deg. Pivot

  • Compatibility

    26-45" Flat Panel Displays

  • Load Capacity

    75 lbs (34kg)

  • Dimensions (H x W x D)

    11.5 x 13.13 x 3.38" (292 x 333 x 85.8mm)

  • UPC Code

    841872058511

About Chief JWS210

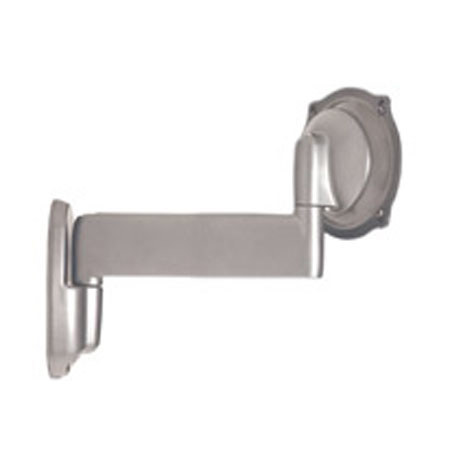

Sleek and attractively designed, the Chief JWS210 Single Swing Arm Wall Mount (Silver) provides a broad range of motion for viewing 26-45" flat panel TVs and monitors (up to 75 lbs) from multiple angles. It features easy installation and ultra smooth adjustment for viewing flexibility. For convenience, it folds in close to the wall for a low-profile appearance and has built-in cable management. The JWS210 includes a VESA-compliant interface bracket making it compatible with hundreds of flat panel displays from 26-45".

Chief JWS210 Features

  • Comes assembled for easy installation
  • Single stud wall mounting
  • VESA-compliant (100 x 100mm, 200 x 100mm and 200 x 200mm patterns)
  • Teardrop hole patterns makes mounting the screen quick and easy
  • Built-in cable management (insert cables in cavity located in lower portion of mount arm) for a clean installation
  • Patented Centris technology provides smooth, fingertip tilt (+/-15deg.) in all directions using the screen's center of gravity. Screen angle stays set until you decide to re-adjust
  • Smoothly extends out to 11.88" to achieve ideal viewing angle. Swivels up to 180deg
  • Independently adjustable tension at pivot points provides customized control
  • Sleek, attractive design hides all hardware. Folds in close (3.38") to the wall for a low-profile appearance

Key Features

  • Comes assembled for easy installation
  • Single stud wall mounting
  • VESA-compliant (100 x 100mm, 200 x 100mm and 200 x 200mm patterns)
  • Teardrop hole patterns makes mounting the screen quick and easy

What's in the box:

  • Chief Single Swing Arm Wall Mount
  • J-Series Wall Plate
  • Cable Management Cover
  • 3/8 " x 3 " Hex Head Lag Screws (2)
  • 8-32 x 3/8 " Phillips Flat Machine Screws (2)
  • Chief Warranty
