Chief LCD2TS LCD Projector Table Stacker, Table Stand

SKU: CHLCD2TS

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Chief LCD2TS Specifications

  • Adjustments

    Roll: 4deg.
    Pitch: 25deg.
    Yaw: 12deg.

  • Max Equip Size (Width)

    18" / 457.2 mm

  • Load Capacity

    100 lbs / 45.36 kg

  • Dimensions (H x W x D)

    24" x 20" x 16" / 609.6 x 508 x 406.4 mm

  • UPC Code

    841872002200

About Chief LCD2TS

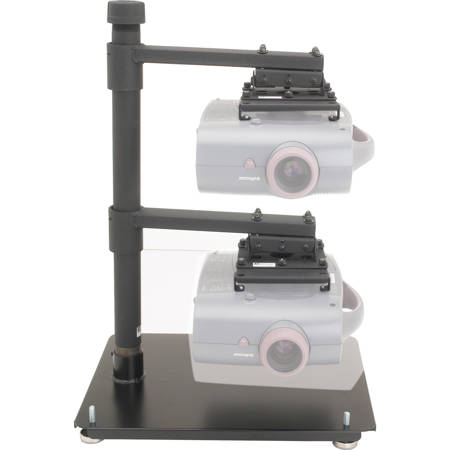

The Chief LCD2TS LCD Projector Table Stacker can mount two (or more) LCD projectors on your tabletop. Projectors can be installed inverted or non-inverted using separate RPA or UPC mounts (sold separately) that fix your model projector to the pipe section's arms. Stock unit includes two arms and a two-foot pipe section. When using an optional table stand, a three-foot pipe section is the maximum recommended height.

Chief LCD2TS Features

  • Quick projector connect/disconnect
  • 12deg. of rotation on arm
  • Independent roll, pitch & yaw make adjustments easy
  • Adjustable vertical projector spacing

Key Features

  • 12deg. of rotation on arm

What's in the box:

  • Chief Base Plate with Leveling Feet
  • 2 x Projector Arms
  • 2' Pipe Section with NPT 1.5 "
  • 5 x Set Screws
  • 8 x Flatwashers
  • 8 x Carriage Bolts
  • 8 x Acorn Nuts
  • Chief Warranty
