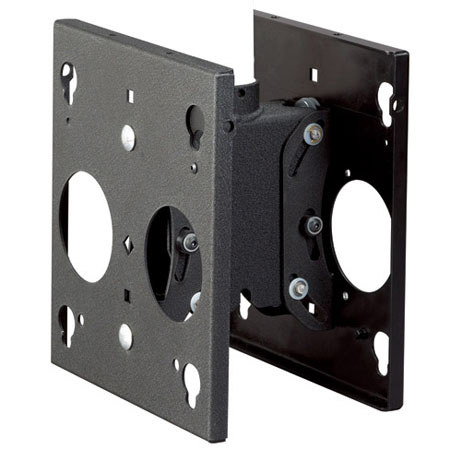

Chief MCD6000 Medium Flat Panel Dual Ceiling Mount
See all Chief items

Chief MCD6000 Medium Flat Panel Dual Ceiling Mount without interface

SKU: CHMCD6000

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Chief MCD6000 Specifications

  • Certifications

    TUV Approved, UL Listed

  • Construction

    Steel

  • Orientation

    Landscape, Portrait

  • Adjustments

    Pitch: +5deg./-20deg.
    Roll:5deg.
    Yaw: 360deg.

  • Post-Installation Leveling (Roll)

    Yes

  • Tilt

    + 5deg., - 20deg.

  • Typical Screen Sizes

    30 - 55" (760 - 1397mm)

  • Load Capacity

    125 lbs (56.7kg)

  • Dimensions (H x W x D)

    11 x 10.2 x 8" (279.4 x 259.08 x 203.2mm)

  • UPC Code

    841872058047

About Chief MCD6000

Ideal solution for viewing flat panel displays from opposing angles, the Chief MCD6000 Medium Flat Panel Dual Ceiling Mount offers hassle-free installation of two back-to-back, ceiling-mounted flat panel TVs or monitors up to 55" or 125 lbs (each). Incorporating Chief's exclusive Q-Latch Mounting System, the MCD-6000 provides easy installation, stable mounting, integrated security and quick release. Ideal for digital signage applications including airports, bars and restaurants, the displays can be installed in portrait or landscape orientation.

Chief MCD6000 Features

  • Centris Technology provides fingertip tilt
  • Screen angle can be tightened down for public applications
  • ClickConnect Technology provides simple, tool-free latching with an audible click
  • Post-installation leveling with no tools needed
  • Q-Latch mounting system for quick connect/disconnect
  • Screen can be installed in portrait or landscape orientation (MAC400 accessory can be used to rotate without removing the screen)
  • Integrated cable management through extension column
  • Custom and universal options available

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Centris Technology provides fingertip tilt
  • Screen angle can be tightened down for public applications
  • ClickConnect Technology provides simple, tool-free latching
  • Post-installation leveling with no tools needed
  • Q-Latch mounting system for quick connect/disconnect
  • Integrated cable management through extension column

What's in the box:

  • Chief MCD6000 Medium Flat Panel Dual Ceiling Mount
  • 5/16-18 " Socket Set Screw
  • 5/32 " Hex Wrench
  • Chief Warranty
