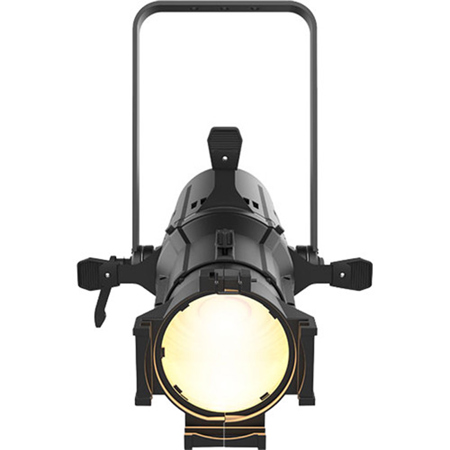

CHAUVET Professional Ovation ED-200WW 230W Warm White Ellipsoidal LED Light
CHAUVET DJ Ovation ED-200WW: Picture 1 thumbnail
CHAUVET DJ Ovation ED-200WW: Picture 2 thumbnail
CHAUVET DJ Ovation ED-200WW: Picture 3 thumbnail
CHAUVET DJ Ovation ED-200WW: Picture 4 thumbnail
See all CHAUVET DJ items

CHAUVET DJ Ovation ED-200WW 230W Warm White Ellipsoidal LED Light Fixture, Black

SKU: CHOED200WW MFR: OVATIONED200WW
Be the first to review this itemAsk a Question
$1,650.00
$1,860.90
Save: $210.9 (11%)
OR
$138/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Elevate your stage presence with the Ovation ED-200WW LED ellipsoidal spotlight.
  • Achieve superior sound with a lighting fixture designed for optimal audio clarity.
  • Experience flicker-free lighting, perfect for broadcast & recording environments.
  • Customize your stage with gobo capabilities for unique lighting designs and effects.
  • Enjoy versatile control with DMX, RDM, and dimmer options for lighting precision.
  • Warm white LED spotlight offers exceptional color rendering (97 CRI) for true tones.
See More Product Details
Special Order?Estimated to Ship: 08/18/2025
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$179.99

3 Year

$249.99

5 Year

$489.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

CHAUVET DJ Ovation ED-200WW Specifications

Optical

Optical

Jump to...

  • Light Source

    1 LEDs (WW) 230 W, (3.4 A), 100,000 hours life expectancy

  • Color Temperature (at full)

    3334 K

  • CRI

    97

  • Beam Angle

    With 5 Degree lens: 7 Degree
    With 10 Degree lens: 9 Degree
    With 14 Degree lens: 11 Degree
    With 19 Degree lens: 15 Degree
    With 26 Degree lens: 19 Degree
    With 36 Degree lens: 25 Degree
    With 50 Degree lens: 35 Degree
    With 15 Degree -30 Degree Narrow lens: 11 Degree
    With 15 Degree -30 Degree Wide lens: 17 Degree
    With 25 Degree -50 Degree Narrow lens: 19 Degree
    With 25 Degree -50 Degree Wide lens: 30 Degree

  • Field Angle

    With 5 Degree lens: 7 Degree
    With 10 Degree lens: 10 Degree
    With 14 Degree lens: 14 Degree
    With 19 Degree lens: 17 Degree
    With 26 Degree lens: 25 Degree
    With 36 Degree lens: 33 Degree
    With 50 Degree lens: 50 Degree
    With 15 Degree -30 Degree Narrow lens: 13 Degree
    With 15 Degree -30 Degree Wide lens: 28 Degree
    With 25 Degree -50 Degree Narrow lens: 23 Degree
    With 25 Degree -50 Degree Wide lens: 41 Degree

  • Lumens

    With 19 Degree lens: 11,534
    With 36 Degree lens: 13,946
    With 50 Degree lens: 12,754
    With 15 Degree -30 Degree lens: 11,739 (@15 Degree ), 11,315 (@30 Degree )
    With 25 Degree -50 Degree lens: 14,243 (@25 Degree ), 12,834 (@50 Degree )

  • Illuminance

    With 5 Degree lens: 43,100 lux @ 5 m
    With 10 Degree lens: 23,200 lux @ 5 m
    With 14 Degree lens: 15,092 lux @ 5 m
    With 19 Degree lens: 9,118 lux @ 5 m
    With 26 Degree lens: 6,028 lux @ 5 m
    With 36 Degree lens: 3,210 lux @ 5 m

  • Illuminance (Contd.)

    With 50 Degree lens: 1,445 lux @ 5 m
    With 15 Degree -30 Degree lens Narrow: 15,879 lux @ 5 m
    With 15 Degree -30 Degree lens Narrow: 15,879 lux @ 5 m
    With 25 Degree -50 Degree lens Narrow: 5,958 lux @ 5 m
    With 25 Degree -50 Degree lens Wide: 2,283lux @ 5 m

  • PWM Frequency

    600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 25,000 Hz

Dynamic Effects

Jump to...

  • Dimmer

    Electronic or External Dimmer Rack

  • Shutter/Strobe

    Electronic

  • Focus

    Manual

  • Strobe Rate

    0 to 18 Hz

  • Dim Modes

    5

  • Dim Curves

    4

Connections

Jump to...

  • Power Connection

    Edison plug to Neutrik powerCON

  • Power Input

    Neutrik powerCON

  • Power Output

    Neutrik powerCON

  • Data Connectors

    3- and 5-pin XLR

  • Cable Length

    Power: 5' (1.5m)

Control

Jump to...

  • Control Protocol

    DMX, RDM, Dimmer

  • DMX Channels

    1, 2 or 3

  • Modes/Personalities

    3 personalities (UNO, DOS, STD.P)

Electrical

Jump to...

  • Input Voltage

    120/230 VAC, 50/60 Hz (switchable)

  • Power Linking

    6 units @ 120 V; 12 units @ 230 V

  • Power and Current

    250 W, 2.074 A @ 120 V, 60 Hz
    254 W, 1.103 A @ 230 V, 50 Hz

Certifications/Qualifications

Jump to...

  • Certification

    CE, MET

  • IP Rating

    IP20, dry location

Construction/Physical

Jump to...

  • Color

    Exterior: Black

  • Gobo Size (Optional)

    "A": 100 mm (outside), 75 mm (image), 2.5 mm (max. thickness)
    "B": 86 mm (outside), 64.5 mm (image), 2.5 mm (max. thickness)

  • Accessory Holder/Gel Frame Size

    5 Degree lens: 14" (356mm)
    10 Degree lens: 12" (304mm)
    14 Degree lens: 7.5" (191mm)
    19 Degree , 26 Degree , 36 Degree , and 50 Degree lens: 6.25" (159mm)
    15 Degree -30 Degree lens: 7.5" (191mm)
    25 Degree -50 Degree lens: 7.5" (191mm)

  • Dimensions

    Fixture only: 21.5 x 15 x 15" (545 x 380 x 380mm)
    With 5 Degree lens extended: 15 x 15" (380 x 380mm)
    With 10 Degree lens extended: 15 x 15" (380 x 380mm)
    With 26 Degree lens extended: 26.5 x 15 x 15" (673 x 380 x 380mm)
    With 15 Degree -30 Degree lens: 42 x 14.6 x 14.6" (1,068 x 371 x 371mm)
    With 25 Degree -50 Degree lens: 36.3 x 14.6 x 14.6" (923 x 371 x 371mm)

  • Weight

    Fixture only: 17.6 lbs (7.9kg)
    With 5 Degree lens: 23.4 lbs (10.6kg)
    With 10 Degree lens: 21.4 lbs (9.7kg)
    With 14 Degree lens: 23 lbs (10.4kg)
    With 26 Degree lens: 21.6 lbs (9.8kg)
    With 15 Degree -30 Degree lens: 30.2 lbs (13.6kg)
    With 25 Degree -50 Degree lens: 27.2 lbs (12.3kg)

Other

Jump to...

  • UPC Code

    781462218560

About CHAUVET DJ Ovation ED-200WW

Where professional lighting meets advanced technology, the Ovation ED-200WW 230W Warm White Ellipsoidal LED Light Fixture in Black stands out. This high-powered LED ellipsoidal unit is a part of our exclusive, award-winning Ovation ED range of LED theatrical fixtures. It boasts a 750W tungsten equivalent warm white intensity and a 95 CRI, making it a top-tier choice for those seeking superior lighting solutions.

The Ovation ED-200WW is not just a light fixture, but a smart device that can sense and respond to traditional dimming systems. This feature makes it the most powerful LED ellipsoidal unit that can adapt to your existing lighting setup. Its high performance is equally efficient whether it's running on constant power and DMX or connected directly to a dimming power source.

What sets this LED light fixture apart is its advanced onboard electronics. These automatically detect the type of power and data the fixture receives and adjust accordingly. This means you can retrofit and upgrade to the benefits of LED lighting without being constrained by previous investments in major dimming systems.

In essence, the Ovation ED-200WW 230W Warm White Ellipsoidal LED Light Fixture in Black is more than just a lighting solution. It's a testament to the seamless integration of cutting-edge technology and professional lighting design.

CHAUVET DJ Ovation ED-200WW Features

  • Warm white ERS style fixture with output exceeding a tungsten 750 W source
  • Works on conventional dimmers or constant power with DMX
  • Auto-senses power/data and responds appropriately
  • Superior low end dimming whether using dimmers or constant power
  • Perfect fixture for the retrofit market, utilizes existing dimming infrastructure flawlessly
  • 16-bit dimming resolution (DMX mode) for smooth fades
  • Flat, even field of light for superior gobo projection
  • Works perfectly with industry standard lens tubes and accessories
  • Virtually silent operation for use in any situation

Warranty Information

This product has a limited warranty of 24 months for parts and 24 months for labor.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

Key Features

  • Elevate your stage presence with the Ovation ED-200WW LED ellipsoidal spotlight.
  • Achieve superior sound with a lighting fixture designed for optimal audio clarity.
  • Experience flicker-free lighting, perfect for broadcast & recording environments.
  • Customize your stage with gobo capabilities for unique lighting designs and effects.
  • Enjoy versatile control with DMX, RDM, and dimmer options for lighting precision.
  • Warm white LED spotlight offers exceptional color rendering (97 CRI) for true tones.

What's in the box:

  • CHAUVET Professional Ovation ED-200WW 230W Warm White Ellipsoidal LED Light Fixture (Black)
  • Neutrik powerCON Power Cord
  • CHAUVET Professional 2 Year Limited Warranty
