Chief PNRIWU 22" Large Low-Profile In-Wall Swing Arm Mount
SKU: CHPNRIWUB
This item is no longer available.
Share:
Overview
Compare
Specs
Q&A

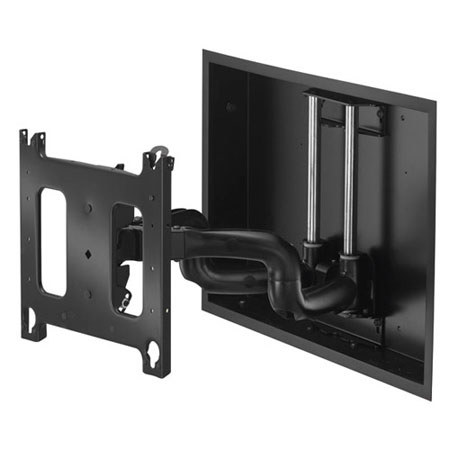

About Chief PNRIWU 22" Large Low-Profile In-Wall Swing Arm Mount
View large flat panel displays up to 71" or 200 lbs. from any angle with the Chief PNRIWU 22" Large Low-Profile In-Wall Swing Arm Mount. Rugged, versatile and installer-friendly, the PNRIWU is designed for installations that require a solid dual swing arm with shorter extension. The dual arms extend up to 24 - 7/8" from the wall, pivot up to 90 degree left or right of center and fold down to only 3-1/4" in the home position.
The PNRIWU was designed for fast installation. After drawing the plumb line and installing the two top lag bolts into the dual wall studs, the installer hangs the PNRIWU on its top bracket and installs two lag bolts in the bottom bracket. Next, the installer makes the height adjustment, mounts the display and connects the power/audio/video cables, which are diverted into the built-in path in the swing-out arms. After making the lateral, rotational and tilt adjustments, the installation process is complete. The PNRIWU includes a universal interface bracket making it compatible with hundreds of flat panel displays from 42 to 71" or 200 lb.
Chief PNRIWU 22" Large Low-Profile In-Wall Swing Arm Mount Features
- Fast Installation: Wall bracket can be placed on wall using convenient mounting guides for a hassle-free installation
- Fast Installation: The PNRIWU is support posts for the dual arms centered in the mount. The support posts can be moved laterally right or left of center to readily accommodate sites with limited wall space
- Fast Installation: Exclusive ClickConnect mounting system provides easy connect/disconnect without requiring any tools. An audible click confirms panels are locked in place. Add a padlock to protect the display from theft
- Fast Installation: Q-Latch Mounting System simplifies installation. It uses a lockable latch to safely secure display to the mount. Provides quick display connect/disconnect and is compatible with multiple accessories
- Fast Installation: Integrated lateral shift up to 9" (4.5" left/right) of 16" stud system without disassembly
- Fast Installation: Built-in cable management channels inside the arms provides quick and easy routing of cables
- Fast Installation: Post-installation height adjustment up to 1" (25.4mm) for installation flexibility
- Fast Installation: Wall protection rubber stops protect the wall when arms are collapsed
- Viewer Friendly: Extends 25" from the wall, only 3-1/4" deep when collapsed
- Viewer Friendly: Independently adjustable tension at pivot points provides customized control
- Viewer Friendly: Exclusive Centris Select tilt mechanism lets you select the perfect tension for your screen's center of gravity to achieve smooth fingertip tilt. Screen angle stays set until you decide to re-adjust
- Viewer Friendly: Swivel up to 90deg. left or right (depending upon screen size)
- Viewer Friendly: Provides positive latch in home position to keep screen tight to wall
- Proven Quality: UL-listed for proven strength. Solidly designed with cast components and steel uprights to securely hold displays up to 200 lbs
- Proven Quality: Mount goes through a series of rigorous tests to ensure a safe and secure installation
