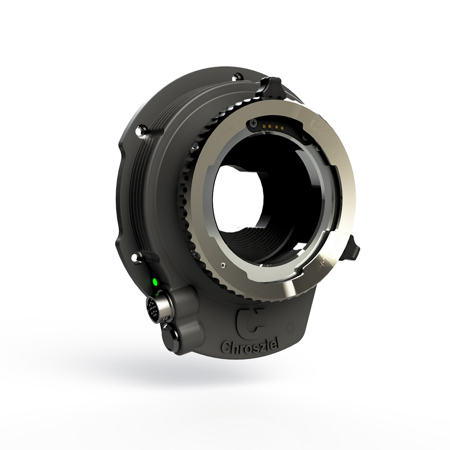

Chrosziel Meta Mount Active Adapter for Sony BURANO to ARRI PL

SKU: CHRMBPLHR12 MFR: MA-BURPL-HR12
Earn VIP Reward Points

Key Features

  • Seamlessly adapt your Sony BURANO to ARRI PL lenses with this active adapter.
  • Maintain electronic communication between lens and camera for full functionality.
  • Power your lens via D-Tap with the included cable, ensuring stable operation.
  • Achieve optimal image quality and focal length with precise lens adjustments.
  • Built with robust materials for lasting durability and reliable lens support.
  • Enjoy compatibility with various ARRI PL mount lenses, expanding creative options.
See More Product Details
Special Order?Estimated to Ship: 08/22/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$159.99

3 Year

$215.99

4 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Chrosziel Meta Mount Active Adapter for Sony BURANO to ARRI PL Specifications

  • Camera Mount

    Sony Burano

  • Lens Mount

    ARRI PL Mount

  • Electronic Communication

    Yes

  • Inputs/Outputs

    1x Hirose 12-Pin Lens Control Output
    1x Lemo 0B 5-Pin Power Input
    1x Mini-USB Firmware Update Input

  • Display

    No

  • Tripod Mounting Thread

    3/8"-16 Female

  • UPC Code

    4250618851181

Models
Chrosziel Meta Mount Active Adapter for Sony BURANO to ARRI PL
$4,680.00

Special Order

Generally ships in 7-14 days, subject to availability

Musashi OptMag TL-OMFF 1.7x Expander (PL Mount)
$4,500.00

Special Order

Generally ships in 7-14 days, subject to availability

Cooke 1.4x Extender for 300mm S4/i Lens
$4,300.00

Special Order

Generally ships in 7-14 days, subject to availability

Type--Conversion Lens, Teleconverter
Compatibility--Cooke
Accessory TypeLens Mount AdapterLens Mount AdapterLens Mount Adapter
Magnification--1.4x
Lens Effect--Telephoto

About Chrosziel Meta Mount Active Adapter for Sony BURANO to ARRI PL

From the world of professional photography and videography comes the Chrosziel Meta Mount Active Adapter, a powerful tool designed to bridge the gap between your Sony Burano camera and PL lenses. This "hot mount" adapter is more than just a physical connector; it's a conduit for seamless metadata communication, enhancing your workflow and creative control.

Each Meta Mount Active Adapter is equipped with the necessary pin contacts to transmit lens metadata directly to your Sony Burano camera. This two-way communication also allows for lens control via a 12-pin Hirose out connection to an ENG lens, offering you unparalleled control over your shooting environment.

When paired with cine lenses featuring LDS or Cooke /i-Data, the Meta Mount Active Adapter transmits vital metadata such as iris setting, focus distance, and zoom focal length. This information is not only displayed in your viewfinder and on your monitor but is also recorded in the video file for post-processing use. This feature ensures that you have all the necessary information at your fingertips, enhancing your post-production process.

The Meta Mount Active Adapter also shines when used with an ENG servo motor-controlled broadcast lens. The Focus/Iris/Zoom servos can be controlled directly through the Sony Burano camera, ensuring compatibility with the Sony Burano GP-VR100 hand grip, Sony FX9 top handle, RCP, or the camera's web GUI. This functionality provides easy and comprehensive control of an ENG broadcast lens through your Sony Burano camera.

To ensure perfect alignment and focus, the Meta Mount Active Adapter comes with an included shim set, allowing for precise adjustments. This feature makes the Meta Mount Active Adapter a versatile and indispensable tool in your professional camera gear collection.

Chrosziel Meta Mount Active Adapter for Sony BURANO to ARRI PL Features

  • Sony Burano Mount Camera to PL mount Lens
  • Electronic contacts for metadata communication and lens control
  • Lens metadata displayed in camera and recorded to file
  • Shimmable with included shims
  • Full focus/Iris/Zoom control on servo motor ENG lenses

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Seamlessly adapt your Sony BURANO to ARRI PL lenses with this active adapter.
  • Maintain electronic communication between lens and camera for full functionality.
  • Power your lens via D-Tap with the included cable, ensuring stable operation.
  • Achieve optimal image quality and focal length with precise lens adjustments.
  • Built with robust materials for lasting durability and reliable lens support.
  • Enjoy compatibility with various ARRI PL mount lenses, expanding creative options.

What's in the box:

  • Chrosziel Meta Mount Active Adapter
  • D-Tap Power Cable
  • MagNum 5-Pin LEMO to 4-Pin Hirose Start/Stop + Power Cable
  • Shim Set
  • Mini-USB Cable
  • Chrosziel 1 Year Limited Warranty
