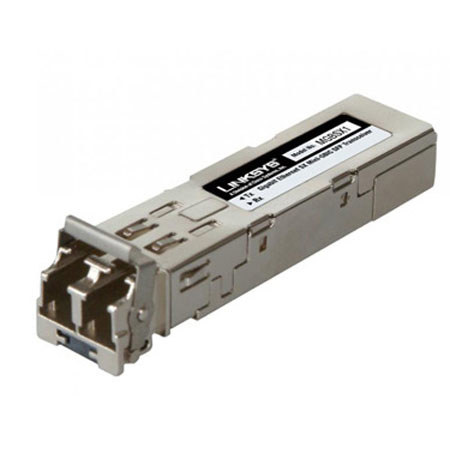

Cisco Gigabit Ethernet 1000 Base-SX Mini-GBIC SFP Transceiver

SKU: CIMGBSX1

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Cisco Gigabit Ethernet 1000 Base-SX Mini-GBIC SFP Transceiver Specifications

  • Compatibility

    Cisco SR2024 - 24-Port 10/100/1000 Gigabit Switch
    SR224G - 24-Port 10/100 + 1-Port Gigabit Switch + 1 MiniGBIC
    SRW2016 - 16-Port 10/100/1000 Gigabit Switch with WebView
    SRW2024 - 24-Port 10/100/1000 Gigabit Switch with WebView
    SRW224 - 24-port 10/100 + 2-Port Gigabit Switch with WebView

  • Application/Usage

    Data Networking

  • Interfaces/Ports

    1 x 1000Base-SX

  • Humidity

    0% to 85% Non-condensing Operating
    5% to 95% Non-condensing Storage

  • Data Transfer Rate

    1 Gbps Gigabit Ethernet

  • Distance Supported

    722 ft 62.5/125 m Fiber
    902 ft 62.5/125 m Fiber
    1640 ft 50/125 m Fiber
    1804 ft 50/125 m Fiber

  • Temperature

    Operating: 32F (0 Deg.C) to 104F (40 Deg.C)
    Storage: -4F (-20 Deg.C) to 158F (70 Deg.C)

  • Connectivity Media

    62.5/125 m Multi-mode Fiber
    50/125 m Multi-mode Fiber

  • Interface Type

    1000Base-SX

  • Number of Ports/Channels

    1

  • Transmitter

    Power: -9.5 to -4 dBm

  • Receiver

    Sensitivity: -20 to -17dBm

  • Input Power

    -20 to -17 dBm

  • Stress Sensitivity

    50/125 um: -13.5dBm, 62.5/125 um: -12.5dBm

  • Wavelength

    850 nm (850nm TYP., 830-860nm) MMF

  • Modular Bandwidth for MMF

    62.5/125um MMF at 160 MHz/km, up to 220m
    62.5/125um MMF at 200 MHz/km, up to 275m
    50/125um MMF at 400 MHz/km, up to 500m
    50/125um MMF at 500 MHz/km, up to 550m

  • UPC Code

    745883558766

About Cisco Gigabit Ethernet 1000 Base-SX Mini-GBIC SFP Transceiver

The Cisco MGBSX1 Gigabit SX Mini-GBIC SFP Transceiver is an easy-to-install Mini-GBIC (or SFP) module provides a simple way to add Gigabit functionality to your Cisco switch. Gigabit fiber is often used to connect two switches together. The technology used depends on the distance between the two switches. The SX module uses 850 nanometer wavelength light in multimode fiber optic cables and can achieve distances up to 220 or 550 meters, depending on the fiber used.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Cisco Gigabit 1000 Base-SX Mini-GBIC SFP Transceiver
  • Quick Installation Guide
  • Cisco Warranty
