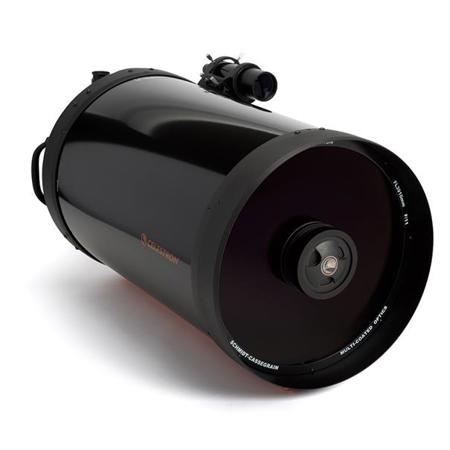

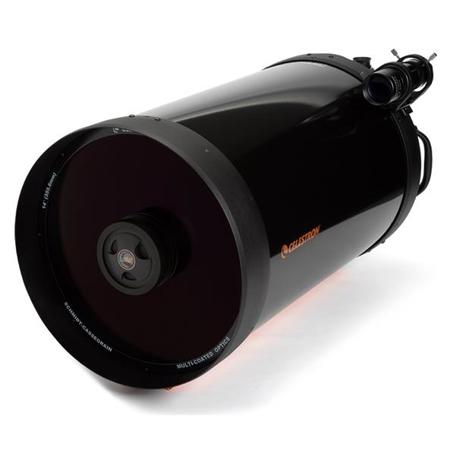

Celestron C14-AF XLT 14" Schmidt-Cassegrain Optical Tube Assembly with StarBright XLT Coatings

SKU: CNOTA14X38 MFR: 91038XLT
(7)6 questions, 16 answers
$6,799.95
$8,450.95
Save: $1651 (20%)
OR
$567/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Experience stunning views with the Celestron 14" aperture, perfect for deep-sky astronomy.
  • Enjoy bright, clear images thanks to StarBright XLT coatings on this Schmidt-Cassegrain telescope.
  • Achieve detailed observations with 98x magnification using the included 40mm eyepiece.
  • The 9x50 finderscope helps you quickly locate celestial objects for easy telescope viewing.
  • Its aluminum optical tube is lightweight at 45 lbs, ensuring manageable portability.
  • Compatible with CGE mount, this Celestron telescope offers stable and precise tracking.
See More Product Details

Product Options

Special Order?Estimated to Ship: 08/09/2025
Free Shipping

See Options

Qty
1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$189.99

3 Year

$219.99

4 Year

$279.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

CLAYTON T : Hi I purchased the celestron nexstar se8 not to long ago from you guys but now i am looking to upgrade the scope to the celestron C14-AF XLT tube the question is the dovetail mount the same as if I could use the C14 to fit onto the SE8 mount ?JOEL L : Forget it. The dovetail would work as long as you order the proper tube and dovetail combination. The BIG "BUT" is weight. Your manual that came with the Nexstar 8 should give you the weight capacity of the of the mount, I don't know that offhand but I think it is about 11 pounds. The reason I bought my Nexstar 6 inch was for portability, I have an 8 *inch HD. The Nexstar 6 including mount and tripod only weights about 31 lbs, your 8 inch will be slightly more. The optical tube that you are considering weighs 45 pounds by itself. The Nexstar mount would be wrecked if you tried mounting the heavy tube on the light mount, If you really want a 14 inch scope, order a suitable German Equitorial mount and matching heavy duty tripod combination. It will not be very portable but the components could be handled by one person.IAN F : I cannot tell you what the dovetail size is for the C14 nor do I know what mount you are using. I would suggest you contact the manufactuer of the C14 to determine the mount compatibility as wait is also a significant factor for the tracking motors. Regards

Reviews about this item

Review Summary

2022-03-15T09:23:29

Rated 5 out of 5

C-11 review

I haven't taken the C-11 out yet. I hope to on 3/26 weather permitting

MELVIN P.

2021-06-24T09:58:21

Rated 5 out of 5

Great upgrade from 5? SCT

This is a great scope! The additional brightness and magnification compared to my 5? SCT is dramatic.

MICHAEL S.

2021-06-20T09:10:09

Rated 5 out of 5

Gracias

Muy buen producto gracias

FRANCISCO G.

2021-06-17T08:15:29

Rated 5 out of 5

Works great

Very nice. Make sure you research the mount and tripod before buying.

SCOTT C.

2017-01-05T07:57:29

Rated 5 out of 5

Celestron 8" OTA

I've wanted a Celestron OTA for quite some time. Having started with smaller scopes (a 5" Maksutov) and an 8" Dobsonian, the next step was to acquire the Celestron. The wait was worth t - this is a great scope.

PETER P.

2013-07-22T21:00:00

Rated 5 out of 5

Celestron 9.25" SCT

This telescope replaced my heavier 12" SCT and is more portable when used with my German Equatorial Mount. The Owl nebula Messier 97 was easily seen with this telescope and a UHC filter from my city location. Detail on the planet Saturn was excellent.

Chuck H.

2011-11-27T19:00:00

Rated 5 out of 5

It's a Classic

The 9.25 is a classic. Can't go wrong.

Gregory B.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Celestron XLT Optical Tube Specifications

  • Optical Design

    Schmidt-Cassegrain

  • Dovetail Compatibility

    CGE Mount

  • Aperture

    355.6 mm / 14"

  • Focal Length

    3910 mm / 153.94"

  • Focal Ratio

    11

  • Finderscope

    9 x 50

  • Optical Tube

    Aluminum

  • Fastar Compatible

    Yes

  • Eyepiece

    40 mm / 1.57"

  • Magnification

    98x

  • Star Diagonal

    1.25

  • Optical Coatings

    StarBright XLT

  • Secondary Mirror Obstruction

    4.5" / 114.3 mm

  • Secondary Mirror Obstruction by Area

    10.30%

  • Secondary Mirror Obstruction by Diameter

    32.10%

  • Optical Tube Length

    31" / 787.4 mm

  • Optical Tube Weight

    45 lbs / 20.41 kg

  • UPC Code

    050234103893

46 Accessories for Celestron C14-AF XLT 14" Schmidt-Cassegrain Optical Tube Assembly with StarBright XLT Coatings

  • All Accessories (46)
  • Power Supplies (1)
  • Batteries & Power Supply (4)
  • Eyepieces & Accessories (23)
  • Telescope Accessories (4)
  • Filters (3)
  • Cleaning Accessories (1)
  • Photography Adapters (1)
  • T-Mounts (5)
  • Navigational Accessories (3)
  • Flashlights & Area Lights (1)
Celestron AC Adapter for CGE Pro Mount and CGEM
Celestron AC Adapter for CGE Pro Mount and CGEM
$92.95
Celestron AC Power Adapter for All Computerized Telescopes
Celestron AC Power Adapter for All Computerized Telescopes
$36.95
Celestron Car Battery Adapter for Telescopes
Celestron Car Battery Adapter for Telescopes
$30.95
Celestron Power Tank 12V Rechargeable Power Supply
Celestron Power Tank 12V Rechargeable Power Supply
$104.95
Celestron Power Tank 17 12v DC 17-amp Rechargeable Power Supply
Celestron Power Tank 17 12v DC 17-amp Rechargeable Power Supply
$189.95
Celestron 4mm Omni Series 1.25" Plossl Eyepiece
Celestron 4mm Omni Series 1.25" Plossl Eyepiece
$31.95
Celestron 6mm Omni Series 1.25" Plossl Eyepiece
Celestron 6mm Omni Series 1.25" Plossl Eyepiece
$31.95
Celestron 9mm Omni Series 1.25" Plossl Eyepiece
Celestron 9mm Omni Series 1.25" Plossl Eyepiece
$31.95
Celestron 15mm Omni Series 1.25" Plossl Eyepiece
Celestron 15mm Omni Series 1.25" Plossl Eyepiece
$31.95
Celestron Omni Series 32mm Plossl Eyepiece with 44 Degree Field of View
Celestron Omni Series 32mm Plossl Eyepiece with 44 Degree Field of View
$49.99
Celestron 40mm Omni Series 1.25 inch Eyepiece
Celestron 40mm Omni Series 1.25 inch Eyepiece
$52.95
Celestron 2.3mm X-Cel LX Series 1.25" Eyepiece
Celestron 2.3mm X-Cel LX Series 1.25" Eyepiece
$109.95

About Celestron XLT Optical Tube

FEATURED REVIEWS

Celestron 9.25" SCT

By Chuck H.

This telescope replaced my heavier 12" SCT and is more portable when used with my German Equatorial Mount. The Owl nebula Messier 97 was easily seen with this telescope and a UHC filter from my city location. Detail on the planet Saturn was excellent.

Works great

By SCOTT C.

Very nice. Make sure you research the mount and tripod before buying.

When exploring the cosmos, the Celestron C14-AF XLT 14" Schmidt-Cassegrain Aluminum Optical Tube Assembly stands out as a high-quality, durable, and advanced tool for both amateur and professional astronomers. This sophisticated telescope is equipped with a large 14-inch aperture (355mm), which allows for an influx of light to produce brighter and clearer images of celestial objects.

The innovative StarBright XLT coatings on the optical tube assembly enhance the contrast and reduce glare, enabling you to view faint objects in the night sky with ease. The telescope's 2" eyepiece diameter provides a wider field of view, offering a more comfortable and immersive viewing experience.

The Celestron C14-AF XLT also features a 9x50 finderscope, a crucial tool to help accurately locate and track objects in the sky. The 2" mirror diagonal is designed to provide a more comfortable viewing position, especially when observing objects that are high in the sky.

This telescope includes a dovetail rail, compatible with the CGE mount, ensuring a secure and stable setup for your stargazing sessions. Whether you're observing the moon, planets, stars, or deep-sky objects, the Celestron C14-AF XLT 14" Schmidt-Cassegrain Aluminum Optical Tube Assembly with StarBright XLT Coatings delivers superior performance and high-resolution images.

Celestron XLT Optical Tube Features

  • High-quality 14-inch aperture for brighter, clearer celestial images
  • Advanced StarBright XLT coatings to enhance contrast and reduce glare
  • Wide 2" eyepiece diameter for a comfortable, immersive viewing experience
  • 9x50 finderscope for accurate location and tracking of objects
  • 2" mirror diagonal for comfortable viewing of high sky objects
  • Includes dovetail rail compatible with CGE mount for stable setup

Warranty Information

This product has a limited warranty of 24 months for parts and 24 months for labor.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

Key Features

  • Experience stunning views with the Celestron 14" aperture, perfect for deep-sky astronomy.
  • Enjoy bright, clear images thanks to StarBright XLT coatings on this Schmidt-Cassegrain telescope.
  • Achieve detailed observations with 98x magnification using the included 40mm eyepiece.
  • The 9x50 finderscope helps you quickly locate celestial objects for easy telescope viewing.
  • Its aluminum optical tube is lightweight at 45 lbs, ensuring manageable portability.
  • Compatible with CGE mount, this Celestron telescope offers stable and precise tracking.

What's in the box:

  • 40mm 2.00 " Eyepiece
  • 9x50mm Finderscope
  • Star Diagonal and Visual Back
  • Dovetail Slide Bar
  • 2-Year Warranty
