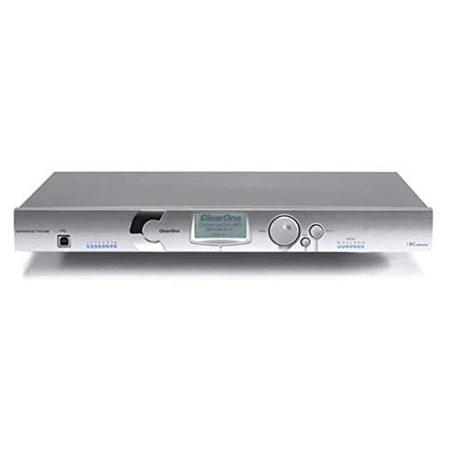

ClearOne CONVERGE Pro 880 8-Channel AEC Microphone Mixer, DSP with 8 Mic/Line Inputs, 4 Line Inputs and 12 Line Outputs

SKU: CO910151880 MFR: 910-151-880
Earn VIP Reward Points

Key Features

  • Enhance your audio conferencing with the ClearOne CONVERGE Pro 880 mixer.
  • Experience superior sound quality with 8-channel AEC microphone mixing.
  • Easily manage audio with DSP, featuring 8 mic/line inputs & 12 line outputs.
  • Optimize meetings using advanced auto mixer parameters for clear audio.
  • Customize sound with assignable processing blocks, filters, & crossovers.
  • Integrate seamlessly via Ethernet, USB, and expansion bus for versatility.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$499.99

3 Year

$649.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

ClearOne CONVERGE Pro 880 Specifications

  • Audio Performance

    Conditions: Unless otherwise specified, all measurements are performed with a 20 Hz to 22 kHz BW limit (no weighting)
    Frequency Response: 20 Hz to 22 kHz +/-1dB
    Noise (EIN): -126 dBu, 20 kHz BW, max gain, Rs=150 Ohms
    THD+N: <0.02%
    Dynamic Range: 100 dB (non A-weighted)
    Crosstalk <-91 dB re 20 dBu at 20 kHz channel to channel

  • Auto Mixer Parameters

    Number of Open Microphones (NOM)
    PA Adaptive Mode
    First Mic Priority Mode
    Last Mic Mode
    Maximum # of Mics Mode
    Ambient Level
    Gate Threshold Adjust
    Off Attenuation Adjust
    Hold Time
    Decay Rate

  • Matrix Mixing Parameters

    12 analog in/out
    18 expansion bus in/out
    8 assignable processing blocks in/out
    4 assignable fader blocks in/out

  • Assignable Processing Blocks

    Filters:
    All pass
    Low pass
    High pass
    Low shelving
    High shelving
    Parametric EQ
    Notch
    CD Horn

    Crossovers:
    Bessel
    Butterworth
    Linkwitz-Riley

    Compressor Delay; adjustable up to 250 ms

  • Assignable Fader Blocks

    Gain/Mute

  • Microphone Input Configuration

    Input Gain Adjust
    Mic or Line Level
    Phantom Power on/off
    Echo Cancellation on/off
    Noise Cancellation on/off
    Filters: All Pass, Low Pass, High Pass, Notch, PEQ
    Mute on/off
    Chairman Override on/off
    AGC on/off
    Automatic Level Control on/off
    Auto Gate/Manual gate
    Adaptive Ambient on/off
    Pre AEC channel

  • Mic/Line Inputs 1-8

    Push-on mini-terminal block, balanced, bridging
    Impedance: < 10KOhms
    Nominal Level: adjustable -56 dBu to 0 dBu (7 dB step coarse gain adjustment)
    Maximum Level: -65 dBu to +20 dBu
    Echo Cancellation: 130 ms tail time (works with 12 dB of room gain)
    Noise Cancellation: 6-15 dB attenuation
    Phantom Power: 24 V, selectable

  • Line Inputs 9-12

    Push-on mini-terminal block, balanced, bridging
    Impedance: < 10KOhms
    Nominal Level: 0 dBu
    Maximum Level: 20 dBu

  • Outputs 1-12

    Push-on mini-terminal block, balanced
    Impedance: < 50 Ohms
    Nominal Level: 0 dBu
    Maximum Level: 20 dBu

  • Expansion Bus In/Out

    Proprietary Network
    RJ-45 (2), 1.9 Mbps
    Category 5 twisted-pair cable, 200' maximum cable length between any two Converge Pro devices

  • Ethernet

    Autoswitching with Quality of Connection (QoC)
    10/100 Mbps Ethernet Network Port
    10/100 Mbps Ethernet PC Port
    RJ-45 Connectors

  • RS-232

    Serial Command Protocol Only (Console software not supported on RS- 232 port)
    DB-9 female
    9,600/19,200/38,400/57,600/115,200 baud rate; 8 bits,1 stop bit, no parity
    Hardware flow control on (default)/off

  • USB

    Version 2.0 Compatible
    Type: B-connector

  • Control/Status Ports

    DB-25 female A/B (2)
    Inputs A/B: active low (pull to ground)
    Outputs A/B: open collector, 40 VDC max, 40 mA each
    +3.3 VDC pins (2) (300 mA over-current protected)

  • Configuration & Administration Software

    Converge Console

  • Power Input Range

    Auto-Adjusting
    100-240 VAC; 50/60 Hz

  • Power Consumption

    30 W Typical

  • Operating Temperature

    Ambient unit temperature: 14 to 122 deg. F (-10 to 50 deg. C)

  • Approvals and Compliance

    AES48-2005: AES standard on interconnections - Grounding and EMC practices - Shields of connectors in audio equipment containing active circuitry (self certified)
    U.S.A. & Canada:
    CSA safety listed
    EU Countries:
    RoHS compliant
    WEEE compliant

  • Dimensions (LxDxH)

    17.25 x 10.25 x 1.75" (43.82 x 26.04 x 4.45cm)

  • Weight

    7.5 lbs (3.40kg)

About ClearOne CONVERGE Pro 880

While the CONVERGE Pro 880 8-Channel AEC Microphone Mixer is a sophisticated and advanced piece of audio equipment, it is also a highly efficient and professional conferencing system. This digital matrix mixer conferencing solution boasts a rich array of features and the legacy audio performance that ClearOne is renowned for.

The CONVERGE Pro 880 stands as the flagship of professional conferencing solutions, offering a comprehensive list of flexible features. It utilizes ClearOne's legacy audio clarity technology, ensuring industry-leading HDConference audio processing for unmatched sound quality. This results in the most natural audio conferencing experience possible.

The system's advanced conferencing feature set includes Distributed Echo Cancellation, Noise Cancellation, First Microphone Priority, and Adaptive Modeling. These work together to deliver the cutting-edge sound quality that ClearOne is known for.

The CONVERGE Pro 880 also offers an expanded serial command list, next-generation Acoustical Echo Cancellation, improved duplex performance, and push-to-talk microphone compatibility. Its next-generation Noise Cancellation adapts to room ambient noise conditions, while the increased resolution on the Microphone Preamp stage offers 0-56 dB in 7 dB increments.

For sound reinforcement applications, the system provides pre-AEC routing with a maximum of 4-millisecond processing delay. Management improvements include integrated Ethernet and USB connections, SNMP and HTML remote management agents, an event scheduler, and a diagnostic console.

The configuration software is simplified with drag & drop A/V and channel objects and selectable views for the unit, matrix, and channel. The system's superior audio performance features next-generation Distributed Echo Cancellation on every mic input, first-mic priority for clear audio delivery to the far end, and a 20 Hz-22 kHz bandwidth for full-range audio response.

The CONVERGE Pro 880 is scalable, allowing for the linking of multiple units for extensive microphone coverage and up to 16 phone lines. It also offers enhanced expansion bus, featuring 18 mix-minus audio buses for routing between units.

This professional audio equipment is ideal for a variety of applications, including conference rooms, boardrooms, courtrooms, distance learning facilities, convention centers and hotels, training rooms, telemedicine facilities, and houses of worship. With the CONVERGE Pro 880, you can expect high-quality, efficient, and professional audio conferencing.

ClearOne CONVERGE Pro 880 Features

  • Advanced 8-channel AEC microphone mixer for professional-grade audio conferencing
  • ClearOne's HDConference audio processing ensures natural and unmatched sound quality
  • Comprehensive echo and noise cancellation features for crystal-clear communication
  • Flexible connectivity with Ethernet and USB, plus SNMP and HTML remote management
  • Scalable system linking for extensive microphone coverage and multi-line phone integration
  • Ideal for diverse settings: boardrooms, courtrooms, educational facilities, and more

Key Features

  • Enhance your audio conferencing with the ClearOne CONVERGE Pro 880 mixer.
  • Experience superior sound quality with 8-channel AEC microphone mixing.
  • Easily manage audio with DSP, featuring 8 mic/line inputs & 12 line outputs.
  • Optimize meetings using advanced auto mixer parameters for clear audio.
  • Customize sound with assignable processing blocks, filters, & crossovers.
  • Integrate seamlessly via Ethernet, USB, and expansion bus for versatility.

What's in the box:

  • ClearOne CONVERGE Pro 880 8-Channel AEC Microphone Mixer
  • 2x 12 Position Terminal Block Connector (Orange)
  • 12 Position Terminal Block Connector (Green)
  • 3x 12 Position Terminal Block Connector (Black)
  • 8' Grounded Power Cord
  • 18 " RJ-45/RJ-45 Patch Cable
  • 6' USB Type A to Type B Cable
  • Screw/Washer Kit
  • Software and Documentation CD
  • Installation and Operation Manual
  • ClearOne 2 Year Warranty
