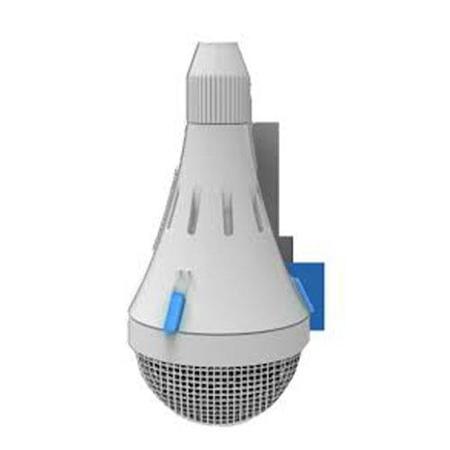

ClearOne Ceiling Mic Array Analog-X 6-Channel 2-Arrays, Includes 2x White Mic Capsules, 2x Analog Junction Boxes and 1x Analog Interface Box

SKU: CO93062206WA MFR: 930-6200-206-W-A
Earn VIP Reward Points

Key Features

  • Enhance conference calls with this ClearOne ceiling mic array system.
  • Experience full coverage with 360-degree cardioid patterns for clear audio.
  • Enjoy pristine sound with a wide 70 Hz - 20 kHz frequency response.
  • Ensure clear communication with a high 74 dBA signal-to-noise ratio.
  • Simplify setup with included analog junction and interface boxes.
  • Benefit from superior RF immunity for uninterrupted audio quality.
See More Product Details
Special Order?Estimated to Ship: 08/14/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

ClearOne Mic Array Analog-X Specifications

Acoustic Characteristics

Acoustic Characteristics

Jump to...
  • Element

    Condenser (Electret)

  • Polar Pattern

    3x 120 deg. Cardioid Patterns, covering 360 deg.

  • Signal/Noise Ratio

    74 dBA at 1 kHz

  • Frequency Response

    70 Hz - 20 kHz

  • Sensitivity

    -37dB at 1 kHz (0 dB = 1V / Pa)

  • Max Sound Pressure Level

    120 dB SPL

  • RF Immunity

    100% immunity, fully balanced twisted pair throughout

Power and Thermal

Jump to...
  • DC Power

    9Vdc at 0.5A

  • Impedance

    200Ohms

  • Operating Temperature

    41 to 104 deg. F (5 to 40 deg. C)

  • Junction Box to Interface Box

    RJ45 CAT5e/CAT6 24AWG, Max 200' (60.96m)

  • Junction Box to Mic Capsule

    Proprietary Mic Array cable, Max 7' (2.13m)

LED Component

Jump to...
  • Indicator

    Mic Capsule: Mute (Red/Blue = GPIO Controlled)

    Analog-X Interface: Power (On=Blue, Off=Not Illuminated)
    Analog-In RJ45 Mute (Red/Blue = GPIO Controlled)

    Analog-X Junction: Power (On=Blue, Off=Not Illuminated)
    Analog-Out RJ45 Mute (Red/Blue = GPIO Controlled)

General

Jump to...
  • Compliance

    FCC, IC, CE, RoHS, WEEE, UL2043 (plenum rated)

  • Dimensions (WxDxH)

    Mic Capsule: 1.7 x 1.7 x 86.6" (4.32 x 4.32 x 219.96cm)
    Analog-X Interface: 6.8 x 4.1 x 1.7" (17.27 x 10.41 x 4.32cm)
    Analog-X Junction: 4 x 3.7 x 1.4" (10.16 x 9.40 x 3.56cm)

  • Weight

    Mic Capsule: 6 oz (170.10g)
    Analog-X Interface: 13 oz (368.54g)
    Analog-X Junction: 6.5 oz (184.27g)

  • UPC Code

    00671010011845

About ClearOne Mic Array Analog-X

Take your audio conferencing to the next level with the Ceiling Microphone Array Analog-X, the latest and most technologically advanced addition to our high-quality ceiling microphone array lineup. This innovative, tri-element ceiling microphone array is specifically designed for both conferencing and sound reinforcement applications, making it a versatile solution for a variety of settings.

Engineered for efficiency and ease of use, the Ceiling Mic Array Analog-X is 100% RF immune, ensuring uninterrupted, crystal-clear audio during your important meetings or presentations. With its optimized speech-intelligibility feature, every word spoken is captured with precision, enhancing communication and collaboration in any setting.

The Ceiling Mic Array Analog-X also boasts a daisy-chain capability, simplifying the installation process and making it a user-friendly choice for any space. This robust microphone system includes two white mic capsules, two analog junction boxes, and one analog interface box, offering a comprehensive audio solution for your needs.

Whether you're outfitting boardrooms, conference rooms, huddle rooms, training rooms, lecture halls, courtrooms, or telemedicine facilities, the Ceiling Microphone Array Analog-X is a reliable choice. It seamlessly integrates with all our DSP mixers, as well as any 3rd party DSP mixers, making it a flexible and adaptable addition to your audio equipment. Experience the difference in audio quality and functionality with the Ceiling Microphone Array Analog-X.

ClearOne Mic Array Analog-X Features

  • Tri-element ceiling microphone array
  • Full 360-degree coverage
  • Superior audio quality with wide bandwidth and high SNR
  • Optimized for speech-intelligibility
  • LED indicators for On/Mute
  • 2 Mic arrays (6 channels) in one combined system
  • Numbered microphone elements for easy identification
  • 100% shielding for RF and other interferences
  • Sleek, unobtrusive design
  • Easily adjustable for desired height (0 feet to 7 feet)
  • Works with ClearOne and other 3rd party DSP mixers

Key Features

  • Enhance conference calls with this ClearOne ceiling mic array system.
  • Experience full coverage with 360-degree cardioid patterns for clear audio.
  • Enjoy pristine sound with a wide 70 Hz - 20 kHz frequency response.
  • Ensure clear communication with a high 74 dBA signal-to-noise ratio.
  • Simplify setup with included analog junction and interface boxes.
  • Benefit from superior RF immunity for uninterrupted audio quality.

What's in the box:

  • ClearOne 2x White Mic Capsule with 7' Drop-Down Cables
  • 2x Analog Junction Boxes
  • 1x Analog Interface Box and Power Supply
  • ClearOne Warranty
