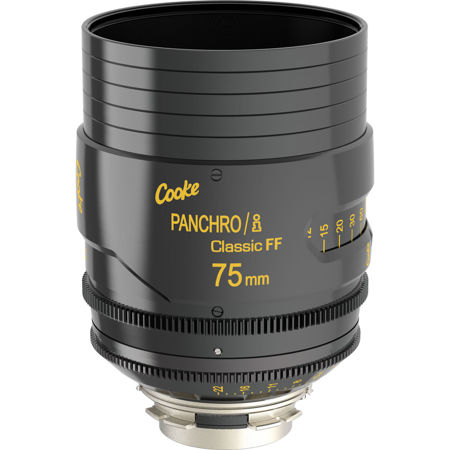

Cooke 75mm T2.2 Panchro/i Classic FF Prime Lens for PL Mount, Feet

A Full Frame version of our popular lenses; optically designed to provide the classic and famous vintage Speed Panchro look of the 1920's as well as the Cooke Look - reimagined for Full Frame capture. Each one color balanced and compatible with our existing ranges. A true icon.

Performance
A Full Frame version of the famous Cooke Speed Panchro lenses: the vintage look with modern opto-mechanical design.

Consistent
Color balanced and color matched - ensuring consistency across the series.

Convenient
Tough, reliable, easy to maintain and easy to use, built for the most demanding environments.

Connected
/i Technology records key lens data for every shot, removing uncertainty from set-to-post information.

Expertly Crafted

Grinding & Polishing
Traditional polishing techniques are used to achieve the highest level of precision.

Metrology
More insights and measurements are taken than ever before to ensure superior quality.

Coating & Cementing
Minerals are evaporated at a high temperature in a vacuum to create a thin film on the glass.

Edging
Edging is carried out to ensure that glass diameters are perfectly round.

Cleaning & Assembly
Lenses are meticulously tested, checked, modified, cleaned and rechecked.

Features:

Optical Design
The optics are designed to give maximum performance at full aperture with superior control of flare, distortion and spherical aberration.

Aperture
Cooke PANCHRO/i Classic FF 75mm lenses have a max aperture of T2.2

Focus Movement
Our Academy Award winning cam-style focus movement coupled with the added benefit of a large lens barrel diameter, allows for an increased number of focus markings, particularly at close focus. A four-point contact bearing provides a smooth positive backlash-free movement.

Focus Scaling
Ergonomically designed Focus scale marks in which the Focus Scale Changes from conventional Focus scale distance marks to Magnification Ratio marks, through the movement. At the factory, every focus mark is individually calibrated and engraved on both sides of the focus barrel.

/i Technology
Accessible via cable connector near the lens mount and contacts in mount that sync with /i compatible cameras and accessories.

Weight/Size Ratio
The lenses are designed for all shooting applications, including handheld and Steadicam, providing comfortable balance ratio with the latest compact cameras.

Compatibility
All Cooke PANCHRO/i Classic FF lenses have a common fixed front diameter of 110mm, with a focus drive gear of 140T x 0.8 mod and an iris drive gear of 134T x 0.8.

Color Balance
All PANCHRO/i Classic prime lenses are color balanced, colormatched and compatible with other Cooke Lenses

Iris
A nine-leaf linear module iris assembly is housed in the Cooke PANCHRO/i Classic FF series.

Camera Mounts
PL with /i Technology contact pins.
