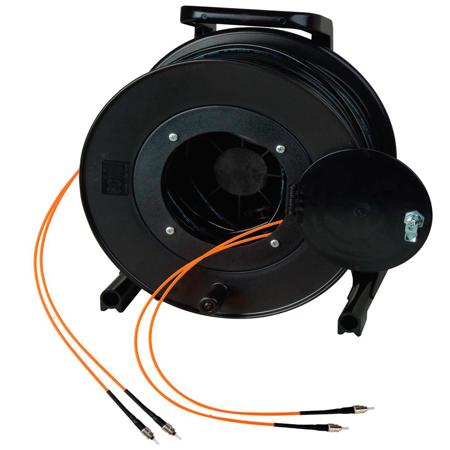

Camplex 2-Channel ST Multimode Orange OM1 62.5 Micron Fiber Optic Tactical Snake Reel with ST Connector, 1750'

SKU: CP2STM11750 MFR: HF-TR02STM1-1750
Earn VIP Reward Points

Key Features

  • Ensure reliable data transfer with this 1750' fiber optic tactical snake reel.
  • Durable polyurethane jacket protects the fiber optic cable in harsh environments.
  • ST connectors provide secure connectivity for your critical network applications.
  • The orange fanouts on this tactical snake reel simplify cable management on set.
  • Multimode OM1 fiber supports Gigabit Ethernet up to 1969' for fast transfers.
  • This Camplex fiber optic cable offers excellent return loss for signal integrity.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$289.99

3 Year

$449.99

4 Year

$549.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Camplex ST Multimode OM1 62.5 Specifications

  • Cable Type

    2-channel, fiber optic, tactical, round
    Polyurethane jacket, 36" (94cm) orange fanouts

  • Fiber Type

    OM1 62.5 um multimode

  • Connectors

    2x ST, machine polished UPC

  • Impact Resistance

    200 impacts (EIA/TiA-455-25A)

  • Crush Resistance

    440 N/cm

  • Flex Resistance

    2,000 cycles

  • Return Loss

    Less than -55 dB typical

  • Gigabit Ethernet Max Distance

    1969' (600m) at 1310 nm

  • Attenuation

    Less than 1.5 dB / km at 1310 nm

  • Operating Temperature

    -67 to 185 Degree F (-55 to 85 Degree C)

  • Storage Temperature

    -94 to 185 Degree F (-70 to 85 Degree C)

  • Length

    1750' (533.4m)

About Camplex ST Multimode OM1 62.5

Because of its robust and lightweight design, the OM1 Orange 62.5 Micron Multimode Tactical Fiber Snake Reel is an ideal solution for broadcast and professional audio applications. This 2-Channel ST Multimode Fiber Optic Tactical Snake Reel is specifically engineered for multiple deployments in field production, outside broadcast, rental houses, and more.

Constructed with highly flexible tight-buffered tactical cables, this product features internal aramid strength members that provide superior crush resistance, even in high traffic areas, when handled correctly. Its polyurethane outer sheath is designed to withstand crushing by both military tanks and Outside Broadcast vehicles, making it a reliable choice for demanding environments.

Each assembly of this 1750' fiber optic snake reel is multi-stage machine polished and tested to ensure less than -55dB RL. Test results for each channel are supplied with each cable to guarantee quality and performance.

Manufactured in-house at a state-of-the-art LEMO trained fiber shop, this product also offers full repair services. The Tactical Fiber Snake Reel includes broadcast fiber optic cable reels with a connector protection cavity and a hinged latching door. Each reel is carefully selected to provide the proper support and maintain the critical bend radius required by fiber optic cables.

For added protection, fanouts are color-coded with Orange Techflex. The cable itself is extremely strong, lightweight, and rugged, making it suitable for commercial, broadcast, industrial, mining, and petrochemical environments. With its crush-resistant and resilient design, and a thick layer of aramid strength members, this cable is also abrasion, cut, and chemical resistant.

Choose the 2-Channel ST Multimode Orange OM1 62.5 Micron Fiber Optic Tactical Snake Reel for a reliable, high-quality solution for your broadcast and professional audio needs.

Camplex ST Multimode OM1 62.5 Features

  • Built in the Fiber Shop with OCC Multichannel Tactical Cable & Heavy Duty Connectors with Dust Caps
  • Individual Channels Ruggedized with Orange Techflex Protection & 36-Inch Fanout
  • Compact, round cable design for ease of transportation and deployment
  • Designed for use in adverse environments where reduced size and weight are important
  • Helically stranded cable core for flexibility, deployment survivability and exceptional mechanical protection for the optical fibers
  • Cables have been tested and are in use in military data communications applications worldwide
  • Can be used outdoors for temporary deployment directly on the ground in all terrains, including severe environments
  • Suitable for outside broadcast, industrial, mining and petrochemical environments - chemical resistant
  • Crush-resistant and resilient with a thick layer of aramid strength members
  • Polyurethane jacketed for abrasion, cut and chemical resistance
  • Meets & Exceeds MIL-PRF-85045 Specifications

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Ensure reliable data transfer with this 1750' fiber optic tactical snake reel.
  • Durable polyurethane jacket protects the fiber optic cable in harsh environments.
  • ST connectors provide secure connectivity for your critical network applications.
  • The orange fanouts on this tactical snake reel simplify cable management on set.
  • Multimode OM1 fiber supports Gigabit Ethernet up to 1969' for fast transfers.
  • This Camplex fiber optic cable offers excellent return loss for signal integrity.

What's in the box:

  • Camplex 2-Channel Multimode Orange OM1 62.5 Micron Fiber Optic Tactical Snake Reel with ST Connector
  • Diagnostics Documentation
  • Set of Dust Caps
  • Camplex 1 Year Limited Warranty
