Camplex 3G-SDI/DVB-ASI to Fiber Optic Converter/Extender with ST and LC SFP Modules

SKU: CP3GSDISTF

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Camplex Extender + Modules Specifications

  • Standards

    SMPTE 424/292M/259M standards, DVB-ASI

  • Video Connector

    75Ohms BNC

  • Support signal type

    270Mbit/s to 3Gbit/s according to SMPTE 424M, SMPTE 292M and SMPTE 259M standards

  • Transmitter

    1 channel SDI with looping output

  • Receiver

    2 channel SDI output

  • Wavelength

    1310nm

  • Optic fiber

    9/125M singlemode

  • Optical connector

    Simplex LC/PC and ST

  • Input power

    5 VDC/2A

  • Power consumption (max)

    Transmitter: 1.8W, Receiver: 1.5W

  • Operating temperature

    32 to 131 deg. F (0 to 55 deg. C)

  • Weight

    0.463 lbs (0.21kg) (pair), with power supply 0.97 lbs (0.44kg) (pair)

About Camplex Extender + Modules

The Camplex CMX-3GSDI-STF 3G-SDI extender is an economic, space saving long haul fiber transmission solution. Send crystal clear 3G-SDI video signals up to 6 miles over one ST singlemode fiber optic run. The unit supports HD signals at both 1.485Gbps & 3Gbps 1080p60. Industry standard ST connections offer a secure interface ensuring your video is on air at all times.

A looping output is included at both the transmitter and receiver for monitoring or recording making these units ideal for live sporting and staging events, rental or building your broadcast infrastructure.

The CMX-3GSDI-STF also includes SFP modules with LC fiber connections to extend images up to 50 miles over singlemode fiber. Both the transmitter & receiver feature automatic equalizing and re-clocking for consistent, clean signals supporting 270Mbit/s to 3Gbit/s, SDI, HD-SDI, 3G HDSDI and SMPTE standards 424M, 292M and 259M.

Camplex Extender + Modules Features

  • 3G/HD/SD-SDI transmitter and receiver
  • LC and ST interchangeable SFP modules
  • Automatic cable equalization and re-clocking
  • 1 channel video and audio transmission of digital video signal over fiber
  • LC SFP extends transmission capability up to 49.7 miles
  • ST SFP extends transmission capability up to 6.2 miles
  • Lightweight, yet rugged, aluminum cases
  • Re-clocking at 270Mbps, 1.48Gbps, 3Gbps

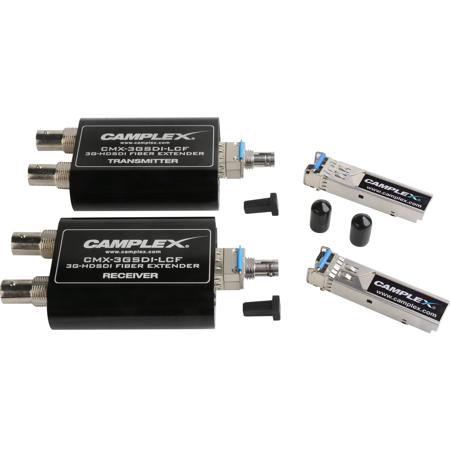

What's in the box:

  • Camplex SDI to Fiber Converter with Power Supply
  • Fiber to SDI Converter with Power Supply
  • LC Receiver SFP
  • LC Transmitter SFP
  • ST Transmitter SFP
  • ST Receiver SFP
  • Camplex 1 Year Limited Warranty
