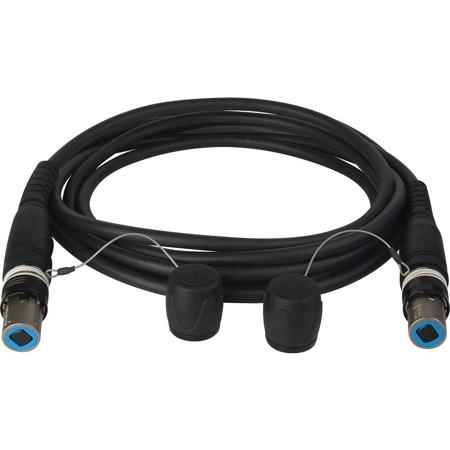

Camplex OpticalCON QUAD to QUAD Singlemode Outside Fiber Optic Tactical Cable, 3'

SKU: CPHFOC4S0003 MFR: HF-OC4S-0003
Earn VIP Reward Points

Key Features

  • Experience reliable data transfer with this 3' OpticalCON QUAD fiber optic cable.
  • Built for durability, this tactical fiber cable withstands harsh environments and staging.
  • Ensure seamless connectivity for digital audio & video with this singlemode fiber cable.
  • Enjoy a long-lasting connection; this fiber optic cable is rated for 1000+ cycles.
  • This OpticalCON QUAD cable supports networking, lighting control, and digital signage.
  • Get superior performance with low signal loss using this premium fiber optic solution.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$174.99

3 Year

$224.99

4 Year

$299.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Camplex OpticalCON Fiber Optic Specifications

  • Applications

    Digital Audio & Video
    Digital Signage
    Data & Networking
    Lighting Control
    Deployable, Staging, and Harsh Environment
    JVC FS-790 Cameras
    Telecast CopperHead, SHED-HDX
    MultiDyne Silverback

  • Cable Type

    Tactical, Polyurethane jacket, 5 mm diameter, black

  • Connector 1

    Neutrik OpticalCON QUAD NO4SX, nickel finish

  • Connector 2

    Neutrik OpticalCON QUAD NO4SX, nickel finish

  • Cable Retention Force

    500 N

  • Lifetime

    Greater than 1000 cycles

  • Insertion / Withdrawal Force

    Less than 45 N

  • Optical Type

    LC-UPC straight polish

  • Fiber Type

    9 um singlemode fiber

  • Cable Loss

    Less than 0.5 dB/km at 1310 / 1550 nm

  • Connector Loss

    Less than 0.5 dB/connector

  • Return Loss

    -55 dB / -45 dB RL (typical/max)

  • Operating Temperature

    -13 to 167 Degree F (-25 to 75 Degree C)

  • Minimum Bend Radius

    1.57" (4cm)

  • Length

    3' (0.9m)

About Camplex OpticalCON Fiber Optic

It's the Camplex OpticalCON QUAD NO4SX to NO4SX Singlemode Tactical Snake Cable, a robust and lightweight solution designed for high-speed data transfer in challenging outdoor environments. This tactical cable is equipped with two fiber optic channels, devoid of any electrical conductors, making it an ideal choice for field production, outside broadcasting, and rental houses.

As a Certified OpticalCON Cable Assembler (COCA), our state-of-the-art fiber optic lab ensures that your cable is crafted to the highest standards, following the latest training and polishing guidelines set by Neutrik factory professionals.

The OpticalCON system, upon which this cable is based, improves upon the conventional LC connectors by eliminating their weaknesses. It guarantees a secure, dust-protected, and rugged connection, making it a reliable choice for your networking needs.

The OpticalCON QUAD system takes this reliability a step further. With its four-channel design, it's optimized for Point-to-Point interconnections and multi-channel routing applications, meeting the growing demand for fiber optic channels.

The QUAD cable connector houses four PC optical channels within a ruggedized, durable all-metal housing. It features a spring-loaded push-pull locking mechanism and excellent cable retention utilizing aramid yarn, ensuring a secure connection.

The optical connection is exceptionally well-protected against dirt and dust, thanks to an automatically operated sealing cover. The cable connector comes pre-assembled, ensuring ease of use right out of the box.

Available in various lengths, this high-quality, durable fiber optic tactical cable is packaged either in a case, on a drum, or airspool, providing flexibility based on your specific needs. Choose the Camplex OpticalCON QUAD NO4SX to NO4SX Singlemode Tactical Snake Cable for a reliable, high-performance connection in any environment.

Camplex OpticalCON Fiber Optic Features

  • OpticalCON assemblies are interfermetrically tested to GR-326-CORE endface standards
  • Machine polishing processes provide exceptionally low return loss and insertion loss
  • OpticalCON features a ruggedized connector body, common LC contacts and a mechanical shutter system to shield against endface contamination
  • APC Polishing types available upon request
  • Machine polished and tested end faces
  • Tactical tight buffered PUR Cable
  • Optical Shutter Mechanism for added protection
  • Typical back reflection less than-55dB
  • COCA Factory Terminated

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Experience reliable data transfer with this 3' OpticalCON QUAD fiber optic cable.
  • Built for durability, this tactical fiber cable withstands harsh environments and staging.
  • Ensure seamless connectivity for digital audio & video with this singlemode fiber cable.
  • Enjoy a long-lasting connection; this fiber optic cable is rated for 1000+ cycles.
  • This OpticalCON QUAD cable supports networking, lighting control, and digital signage.
  • Get superior performance with low signal loss using this premium fiber optic solution.

What's in the box:

  • Camplex OpticalCON QUAD to QUAD Singlemode Fiber Optic Tactical Cable
  • Diagnostics Documentation
  • Camplex 1 Year Limited Warranty
